750/760 Feeder Management Relay GE Power Management
9.5 FLEXCURVES 9 S2 SYSTEM SETUP
9

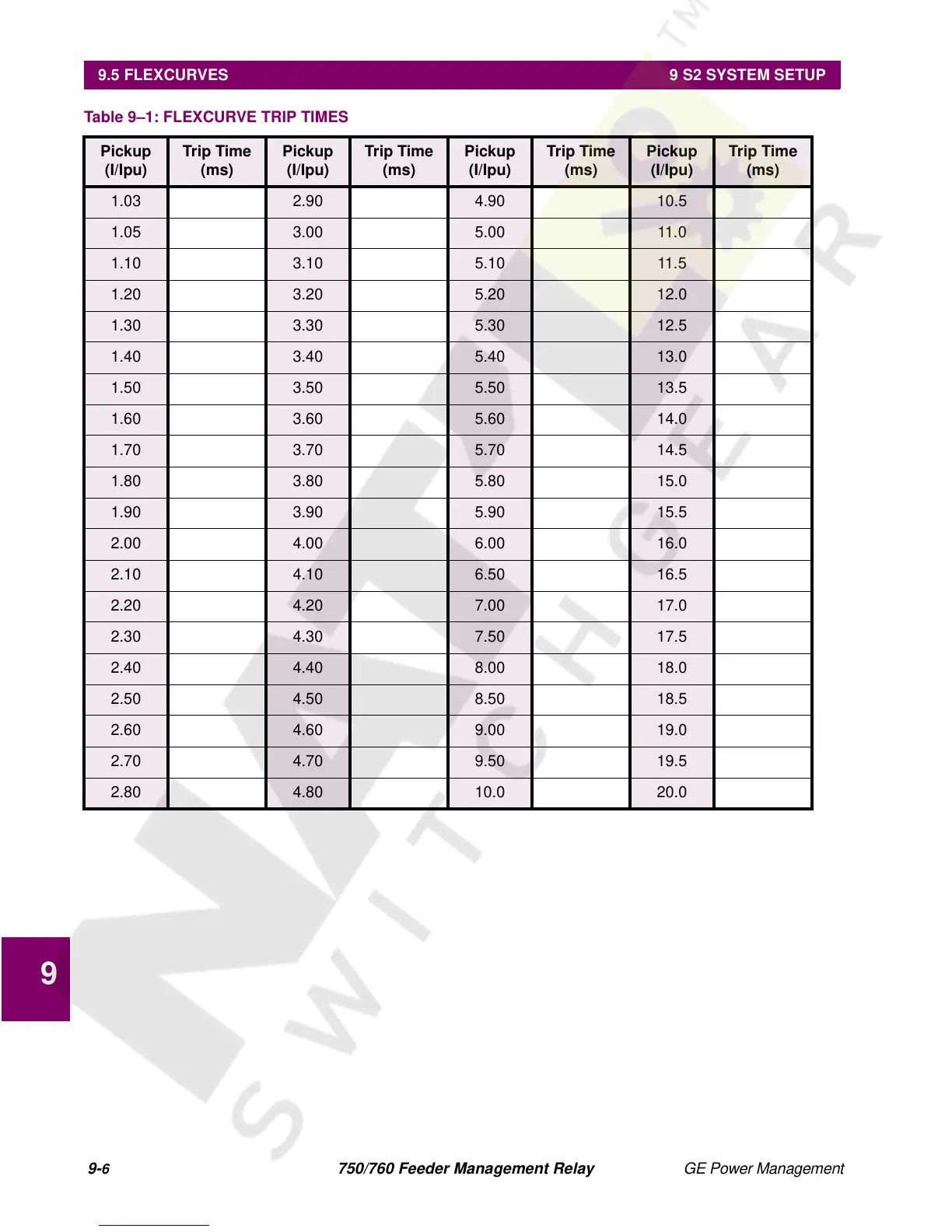

Table 9–1: FLEXCURVE TRIP TIMES
Pickup
(I/Ipu)
Trip Time
(ms)
Pickup
(I/Ipu)
Trip Time
(ms)
Pickup
(I/Ipu)
Trip Time
(ms)
Pickup
(I/Ipu)
Trip Time
(ms)
1.03 2.90 4.90 10.5
1.05 3.00 5.00 11.0
1.10 3.10 5.10 11.5
1.20 3.20 5.20 12.0
1.30 3.30 5.30 12.5
1.40 3.40 5.40 13.0
1.50 3.50 5.50 13.5
1.60 3.60 5.60 14.0
1.70 3.70 5.70 14.5
1.80 3.80 5.80 15.0
1.90 3.90 5.90 15.5
2.00 4.00 6.00 16.0
2.10 4.10 6.50 16.5
2.20 4.20 7.00 17.0
2.30 4.30 7.50 17.5
2.40 4.40 8.00 18.0
2.50 4.50 8.50 18.5
2.60 4.60 9.00 19.0
2.70 4.70 9.50 19.5
2.80 4.80 10.0 20.0
