10.9 AUTORECLOSE FUNCTIONS (760 ONLY) 10 S3 LOGIC INPUTS
10

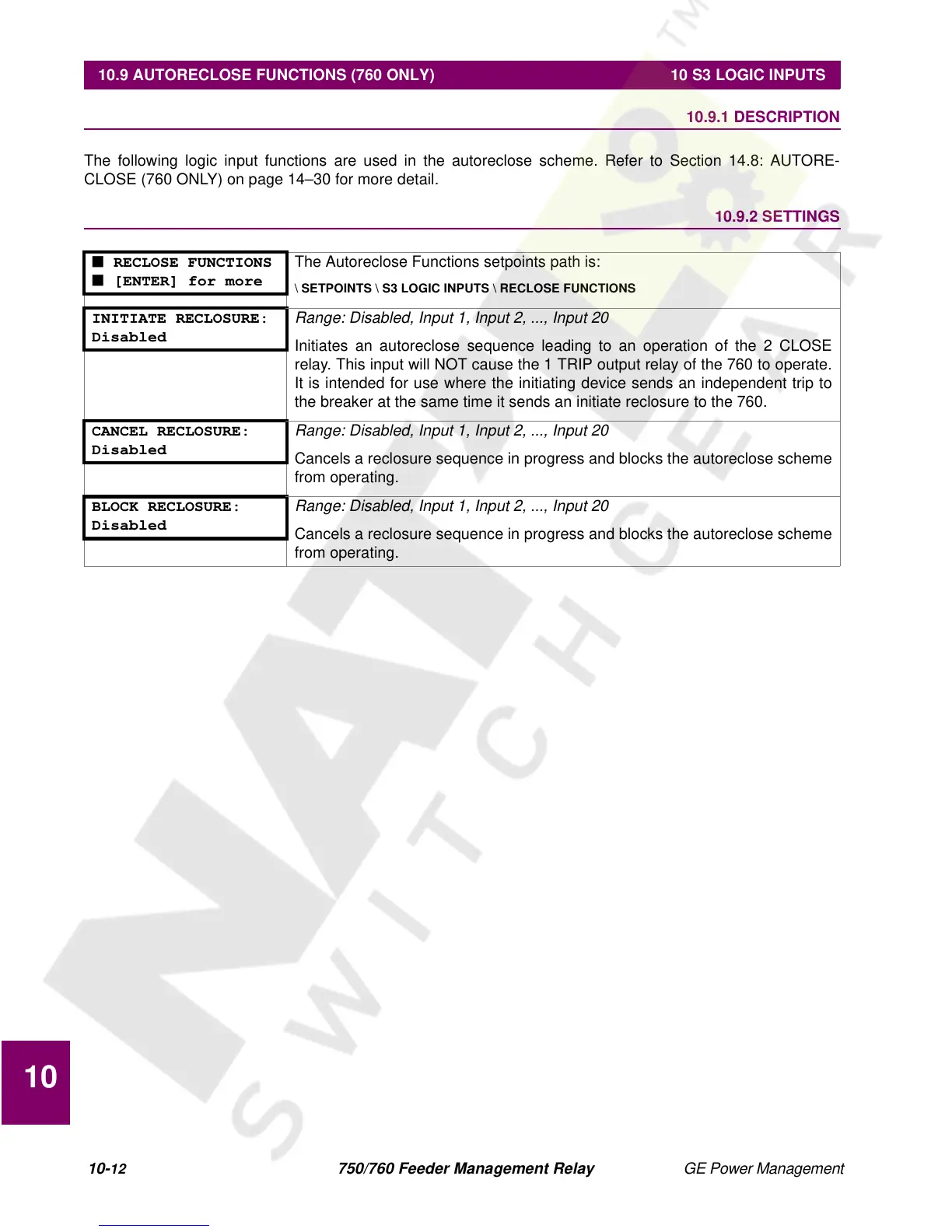

10.9 AUTORECLOSE FUNCTIONS (760 ONLY) 10.9.1 DESCRIPTION
The following logic input functions are used in the autoreclose scheme. Refer to Section 14.8: AUTORE-
CLOSE (760 ONLY) on page 14–30 for more detail.
10.9.2 SETTINGS
■ RECLOSE FUNCTIONS
■ [ENTER] for more
The Autoreclose Functions setpoints path is:
\ SETPOINTS \ S3 LOGIC INPUTS \ RECLOSE FUNCTIONS
INITIATE RECLOSURE:
Disabled
Range: Disabled, Input 1, Input 2, ..., Input 20
Initiates an autoreclose sequence leading to an operation of the 2 CLOSE
relay. This input will NOT cause the 1 TRIP output relay of the 760 to operate.
It is intended for use where the initiating device sends an independent trip to
the breaker at the same time it sends an initiate reclosure to the 760.
CANCEL RECLOSURE:
Disabled
Range: Disabled, Input 1, Input 2, ..., Input 20
Cancels a reclosure sequence in progress and blocks the autoreclose scheme
from operating.
BLOCK RECLOSURE:
Disabled
Range: Disabled, Input 1, Input 2, ..., Input 20
Cancels a reclosure sequence in progress and blocks the autoreclose scheme
from operating.
