750/760 Feeder Management Relay GE Power Management
1.1 INTRODUCTION 1 PRODUCT OVERVIEW
1

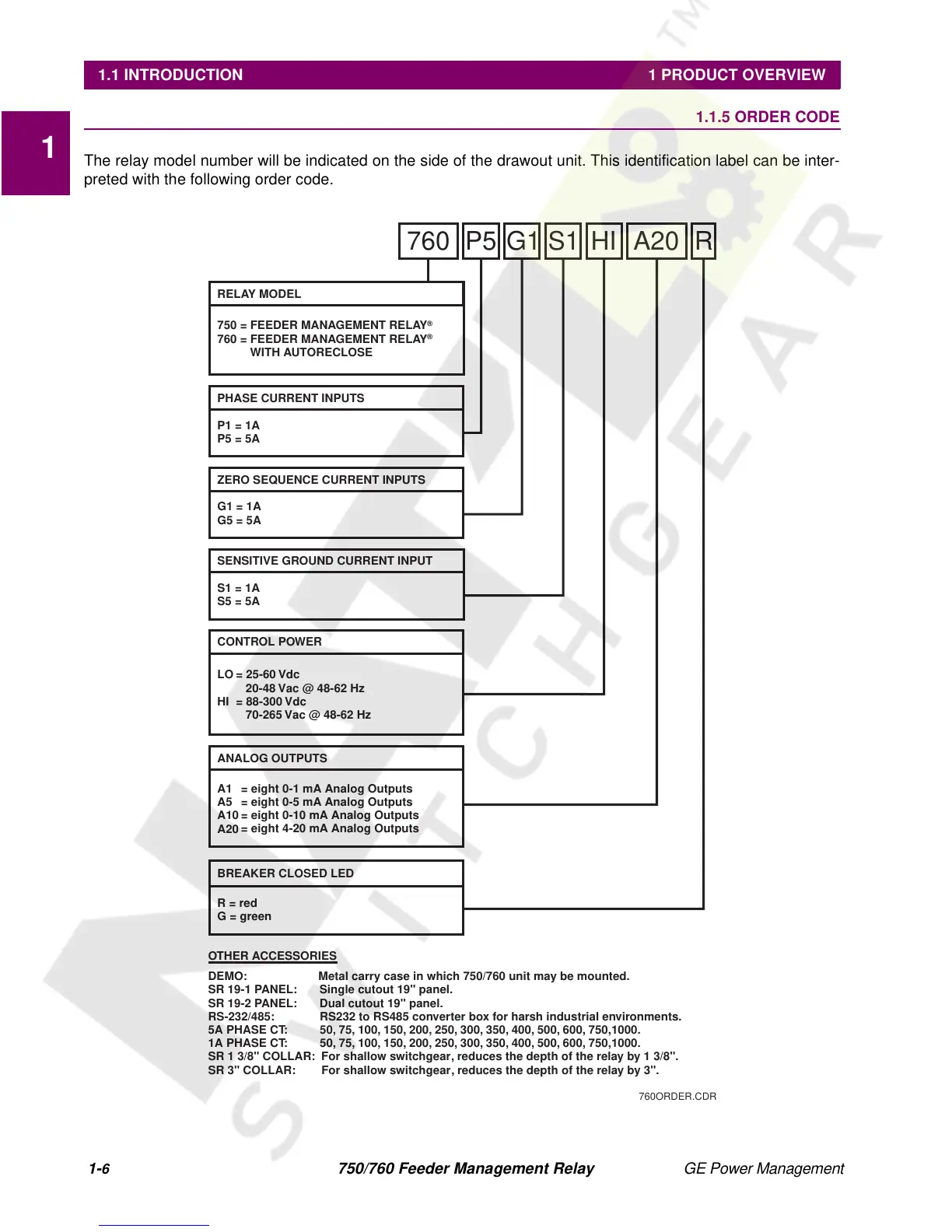

1.1.5 ORDER CODE
The relay model number will be indicated on the side of the drawout unit. This identification label can be inter-
preted with the following order code.
760ORDER.CDR
760
P5
G1
S1 HI
A20
R
RELAY MODEL
PHASE CURRENT INPUTS
ZERO SEQUENCE CURRENT INPUTS
SENSITIVE GROUND CURRENT INPUT
CONTROL POWER
ANALOG OUTPUTS
BREAKER CLOSED LED
750 = FEEDER MANAGEMENT RELAY
760 = FEEDER MANAGEMENT RELAY
WITH AUTORECLOSE
®
®
P1 = 1A
P5 = 5A
G1 = 1A
G5 = 5A
S1 = 1A
S5 = 5A
= 25-60 Vdc
20-48 Vac @ 48-62 Hz
= 88-300 Vdc
70-265 Vac @ 48-62 Hz
= eight 0-1 mA Analog Outputs
= eight 0-5 mA Analog Outputs
= eight 0-10 mA Analog Outputs
= eight 4-20 mA Analog Outputs
R = red
G = green
LO
HI
A1
A5
A10
A20
OTHER ACCESSORIES
DEMO: Metal carry case in which 750/760 unit may be mounted.
SR 19-1 PANEL: Single cutout 19" panel.
SR 19-2 PANEL: Dual cutout 19" panel.
RS-232/485: RS232 to RS485 converter box for harsh industrial environments.
5A PHASE CT: 50, 75, 100, 150, 200, 250, 300, 350, 400, 500, 600, 750,1000.
1A PHASE CT: 50, 75, 100, 150, 200, 250, 300, 350, 400, 500, 600, 750,1000.
SR 1 3/8" COLLAR: For shallow switchgear, reduces the depth of the relay by 1 3/8".
SR 3" COLLAR: For shallow switchgear, reduces the depth of the relay by 3".
