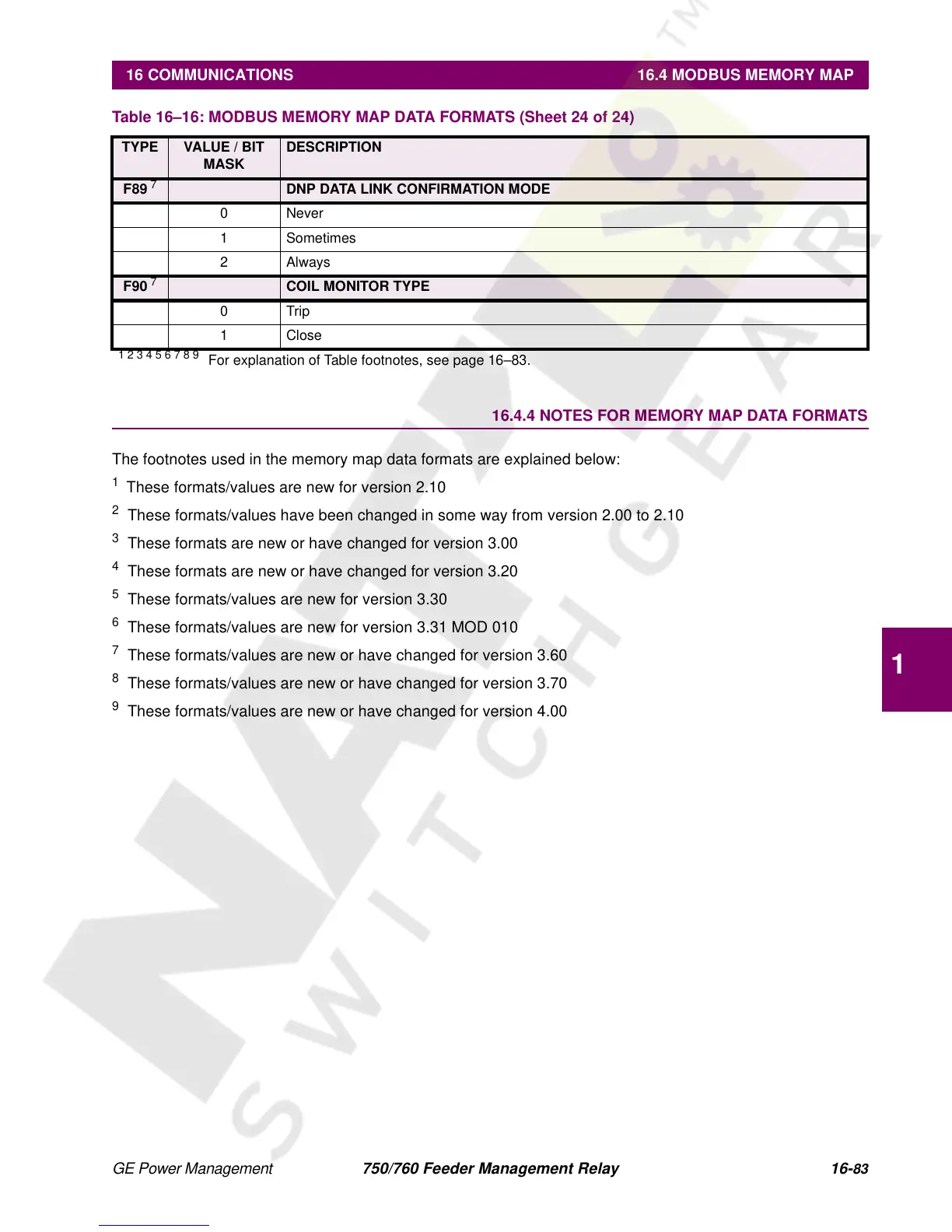

16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
16.4.4 NOTES FOR MEMORY MAP DATA FORMATS
The footnotes used in the memory map data formats are explained below:
1
These formats/values are new for version 2.10
2
These formats/values have been changed in some way from version 2.00 to 2.10
3
These formats are new or have changed for version 3.00
4
These formats are new or have changed for version 3.20
5
These formats/values are new for version 3.30
6
These formats/values are new for version 3.31 MOD 010
7
These formats/values are new or have changed for version 3.60
8
These formats/values are new or have changed for version 3.70
9
These formats/values are new or have changed for version 4.00
F89
7
DNP DATA LINK CONFIRMATION MODE
0 Never
1 Sometimes
2Always
F90
7
COIL MONITOR TYPE
0Trip
1Close
Table 16–16: MODBUS MEMORY MAP DATA FORMATS (Sheet 24 of 24)
TYPE VALUE / BIT
MASK
DESCRIPTION
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–83.
