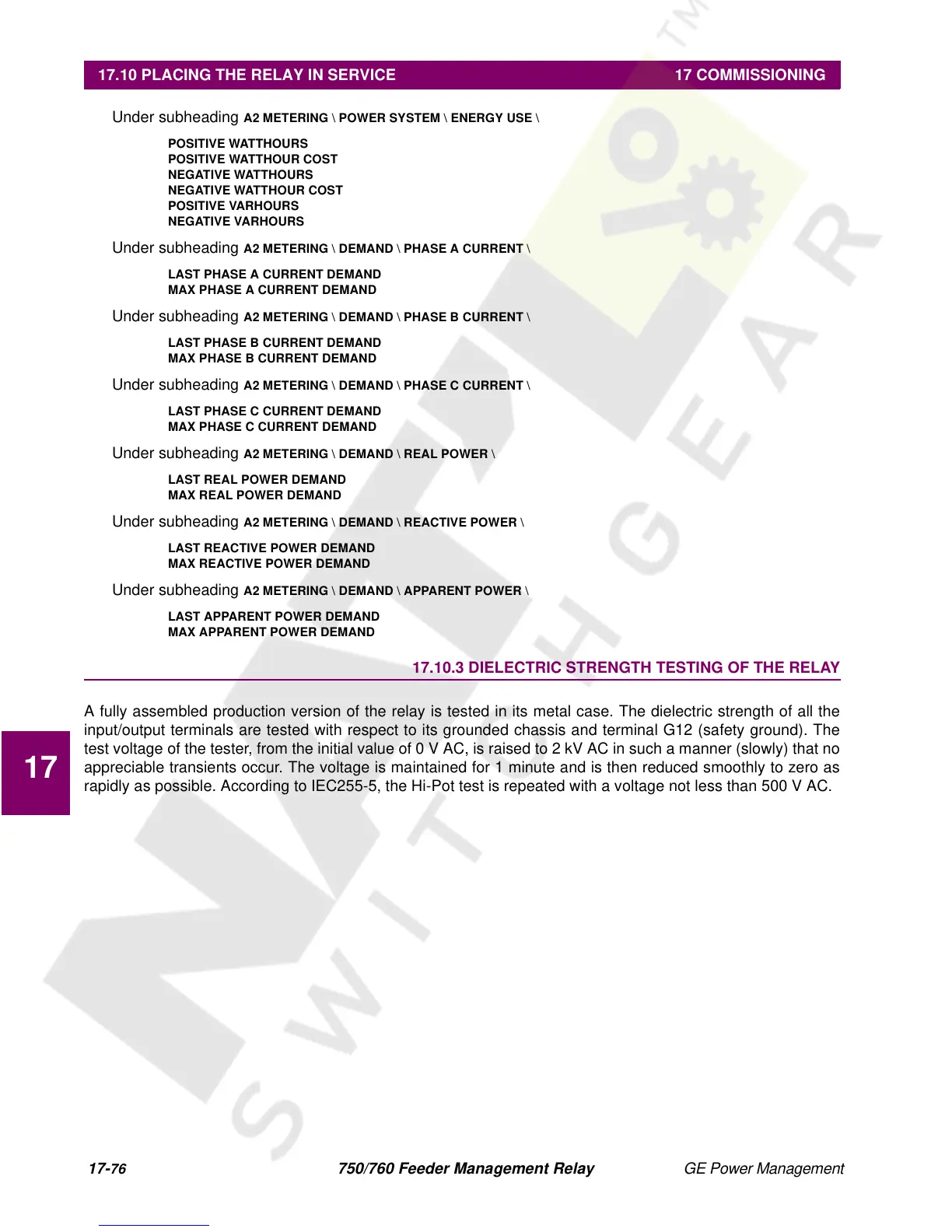

750/760 Feeder Management Relay GE Power Management
17.10 PLACING THE RELAY IN SERVICE 17 COMMISSIONING
17
Under subheading
A2 METERING \ POWER SYSTEM \ ENERGY USE \
POSITIVE WATTHOURS
POSITIVE WATTHOUR COST
NEGATIVE WATTHOURS
NEGATIVE WATTHOUR COST
POSITIVE VARHOURS
NEGATIVE VARHOURS
Under subheading
A2 METERING \ DEMAND \ PHASE A CURRENT \
LAST PHASE A CURRENT DEMAND
MAX PHASE A CURRENT DEMAND
Under subheading
A2 METERING \ DEMAND \ PHASE B CURRENT \
LAST PHASE B CURRENT DEMAND
MAX PHASE B CURRENT DEMAND
Under subheading
A2 METERING \ DEMAND \ PHASE C CURRENT \
LAST PHASE C CURRENT DEMAND
MAX PHASE C CURRENT DEMAND
Under subheading
A2 METERING \ DEMAND \ REAL POWER \
LAST REAL POWER DEMAND
MAX REAL POWER DEMAND
Under subheading
A2 METERING \ DEMAND \ REACTIVE POWER \
LAST REACTIVE POWER DEMAND
MAX REACTIVE POWER DEMAND
Under subheading
A2 METERING \ DEMAND \ APPARENT POWER \
LAST APPARENT POWER DEMAND
MAX APPARENT POWER DEMAND
17.10.3 DIELECTRIC STRENGTH TESTING OF THE RELAY
A fully assembled production version of the relay is tested in its metal case. The dielectric strength of all the
input/output terminals are tested with respect to its grounded chassis and terminal G12 (safety ground). The
test voltage of the tester, from the initial value of 0 V AC, is raised to 2 kV AC in such a manner (slowly) that no
appreciable transients occur. The voltage is maintained for 1 minute and is then reduced smoothly to zero as
rapidly as possible. According to IEC255-5, the Hi-Pot test is repeated with a voltage not less than 500 V AC.
