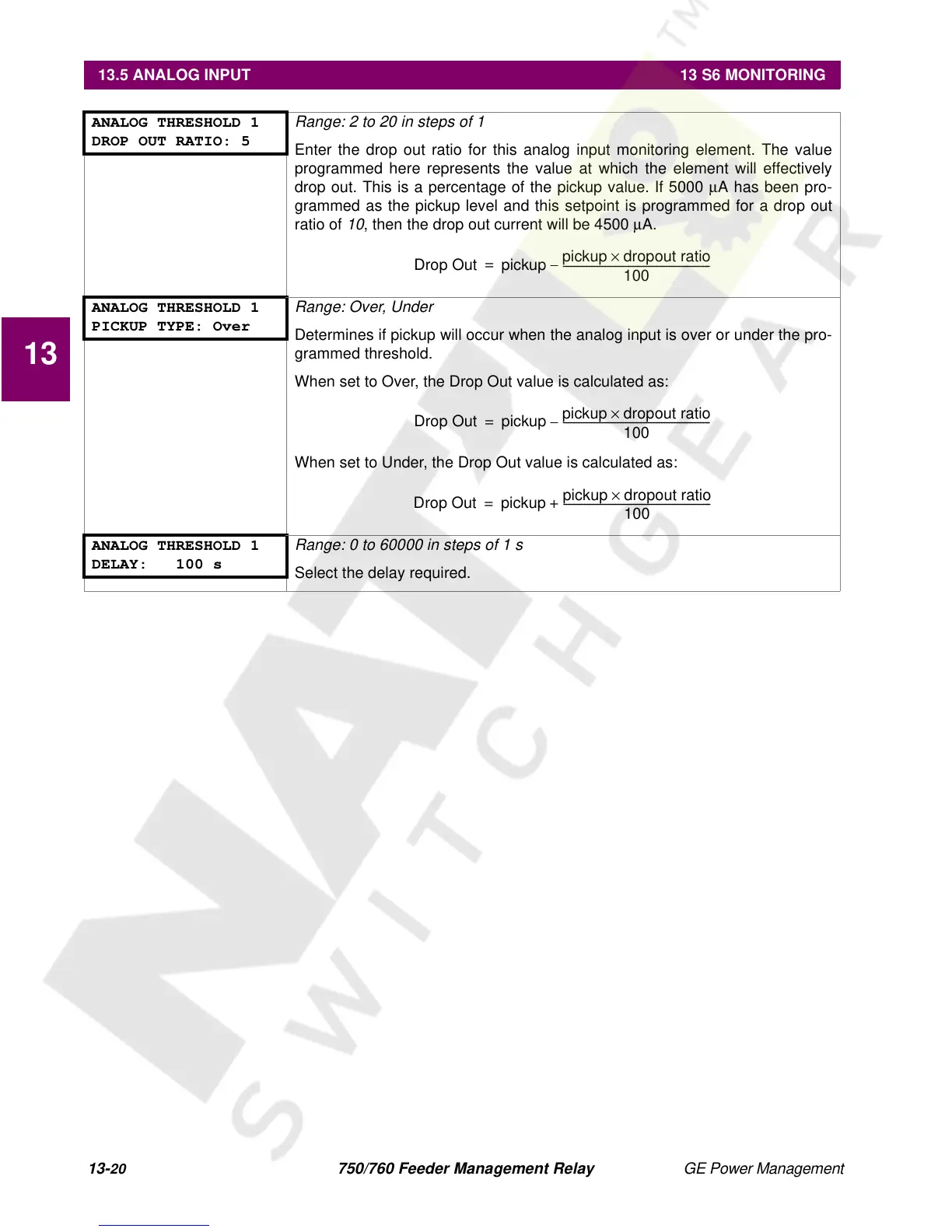

GE 750 - Page 236

13-
20
750/760 Feeder Management Relay GE Power Management
13.5 ANALOG INPUT 13 S6 MONITORING
13
ANALOG THRESHOLD 1
DROP OUT RATIO: 5
Range: 2 to 20 in steps of 1
Enter the drop out ratio for this analog input monitoring element. The value
programmed here represents the value at which the element will effectively
drop out. This is a percentage of the pickup value. If 5000
µ
A has been pro-
grammed as the pickup level and this setpoint is programmed for a drop out
ratio of
10 , then the drop out current will be 4500
µ
A.
ANALOG THRESHOLD 1
PICKUP TYPE: Over
Range: Over, Under
Determines if pickup will occur when the analog input is over or under the pro-
grammed threshold.
When set to Over, the Drop Out value is calculated as:
When set to Under, the Drop Out value is calculated as:
ANALOG THRESHOLD 1
DELAY: 100 s
Range: 0 to 60000 in steps of 1 s
Select the delay required.
Drop Out pickup
pickup dropout ratio
×
100
---------------------------------------------------------
–=
Drop Out pickup
pickup dropout ratio
×
100
---------------------------------------------------------
–=
Drop Out pickup
pickup dropout ratio
×
100
---------------------------------------------------------
+=
