750/760 Feeder Management Relay GE Power Management
13.6 ANALOG OUTPUTS 13 S6 MONITORING
13
φA/φB/φC Apparent Power
0.0 to 3000.0 MVA
1
0.1 0.0 100.0 A
φA/φB/φC Power Factor 0.00 Lead to 0.00 Lag 0.01 0.99 Lag 0.50 Lag B
Synchro Voltage 0.00 to 655.35 kV 0.01 0.00 100.00 A
Synchro Voltage Angle 0 to 359° Lag 1 0 359 A
Synchro Frequency 20.00 to 65.00 Hz 0.01 47.00 63.00 B
Frequency Decay Rate –10.00 to 10.00 Hz/s 0.01 –0.50 0.50 C
Positive/Negative/Zero
Sequence Current
0 to 65535 Amps 1 0 2000 A
Positive/Negative/Zero
Sequence Current Angle
0 to 359° Lag 1 0 359 A
Positive/Negative/Zero
Sequence Voltage
0.00 to 655.35 kV 0.01 0.00 100.00 A
Positive/Negative/Zero
Sequence Voltage Angle
0 to 359° Lag 1 0 359 A
Synchro Voltage Difference 0.00 to 655.35 kV 0.01 0.00 100.00 A
Synchro Angle Difference 0 to 359° Lag 1 0 359 A
Synchro Frequency Difference 20.00 to 65.00 Hz 0.01 47.00 63.00 B
Sensitive Ground Current 0.00 to 655.35 A 0.01 0.00 20.00 A
Sensitive Ground Current Angle 0 to 359° Lag 1 0 359 A
Neutral Voltage 0.00 to 655.35 kV 0.01 0.00 100.00 A
Neutral Voltage Angle 0 to 359° Lag 1 0 359 A

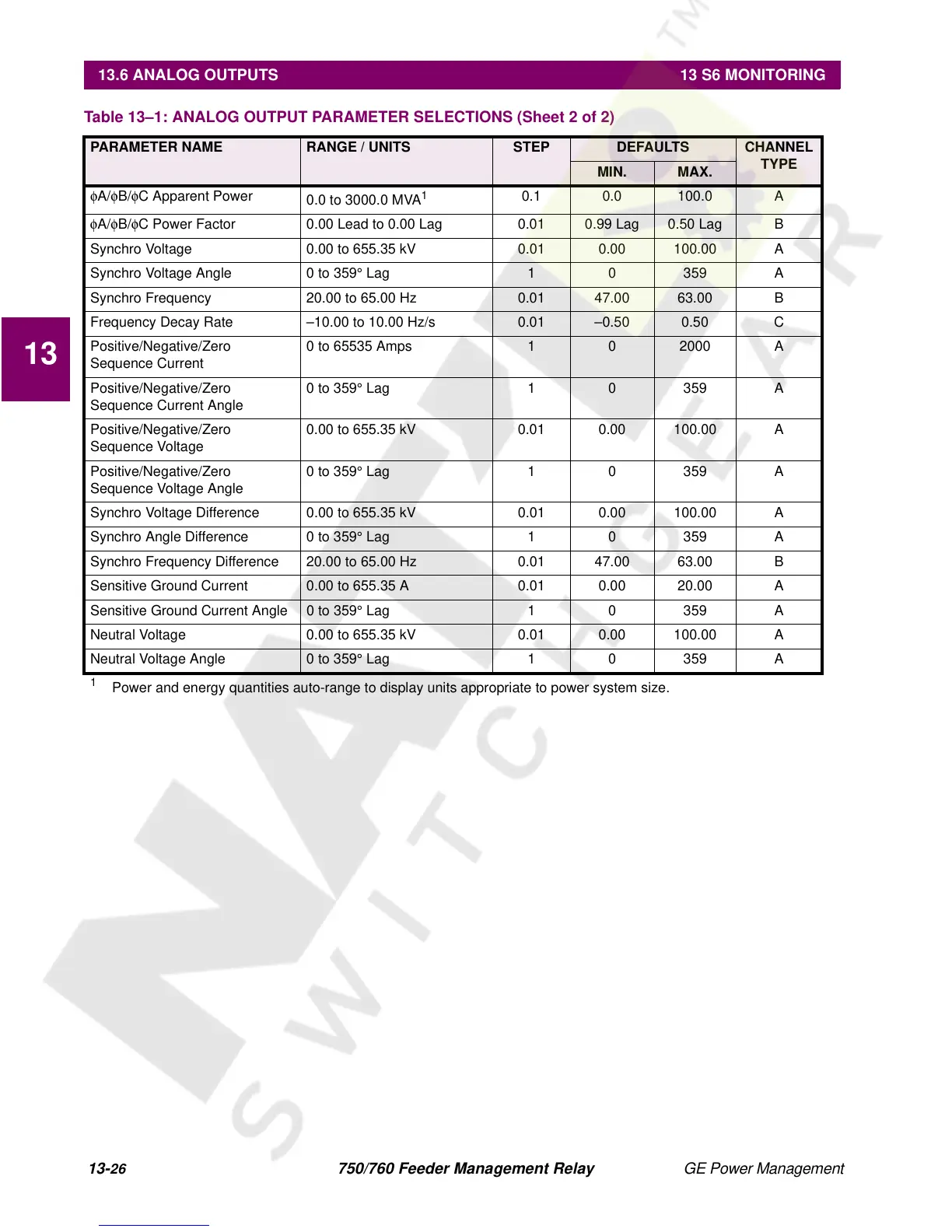

Table 13–1: ANALOG OUTPUT PARAMETER SELECTIONS (Sheet 2 of 2)
PARAMETER NAME RANGE / UNITS STEP DEFAULTS CHANNEL
TYPE
MIN. MAX.
1
Power and energy quantities auto-range to display units appropriate to power system size.
