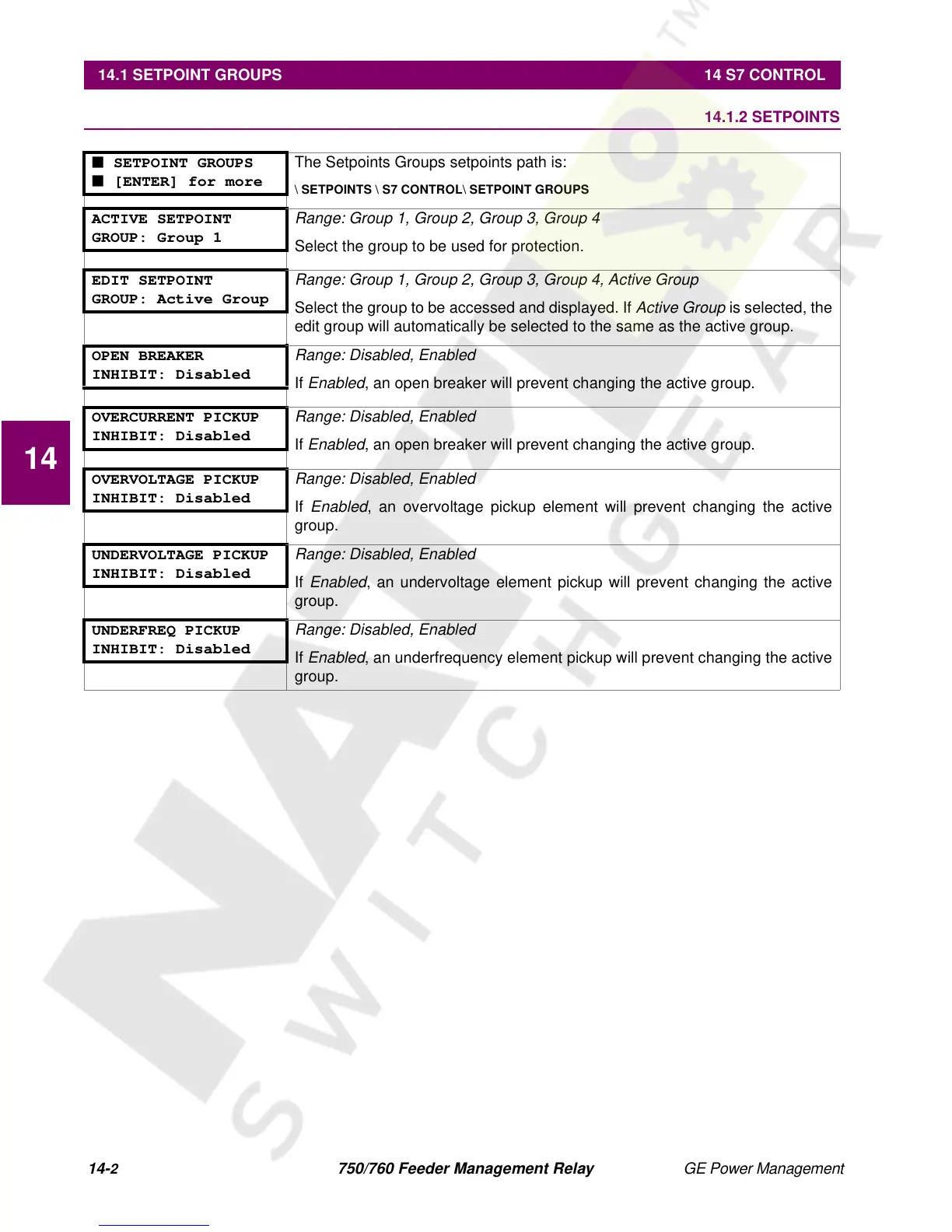

14.1 SETPOINT GROUPS 14 S7 CONTROL
14
14.1.2 SETPOINTS
■ SETPOINT GROUPS
■ [ENTER] for more
The Setpoints Groups setpoints path is:
\ SETPOINTS \ S7 CONTROL\ SETPOINT GROUPS
ACTIVE SETPOINT
GROUP: Group 1
Range: Group 1, Group 2, Group 3, Group 4
Select the group to be used for protection.
EDIT SETPOINT
GROUP: Active Group
Range: Group 1, Group 2, Group 3, Group 4, Active Group
Select the group to be accessed and displayed. If Active Group is selected, the
edit group will automatically be selected to the same as the active group.
OPEN BREAKER
INHIBIT: Disabled
Range: Disabled, Enabled
If Enabled , an open breaker will prevent changing the active group.
OVERCURRENT PICKUP
INHIBIT: Disabled
Range: Disabled, Enabled
If Enabled , an open breaker will prevent changing the active group.
OVERVOLTAGE PICKUP
INHIBIT: Disabled
Range: Disabled, Enabled
If Enabled , an overvoltage pickup element will prevent changing the active
group.
UNDERVOLTAGE PICKUP
INHIBIT: Disabled
Range: Disabled, Enabled
If Enabled , an undervoltage element pickup will prevent changing the active
group.
UNDERFREQ PICKUP
INHIBIT: Disabled
Range: Disabled, Enabled
If Enabled , an underfrequency element pickup will prevent changing the active
group.
