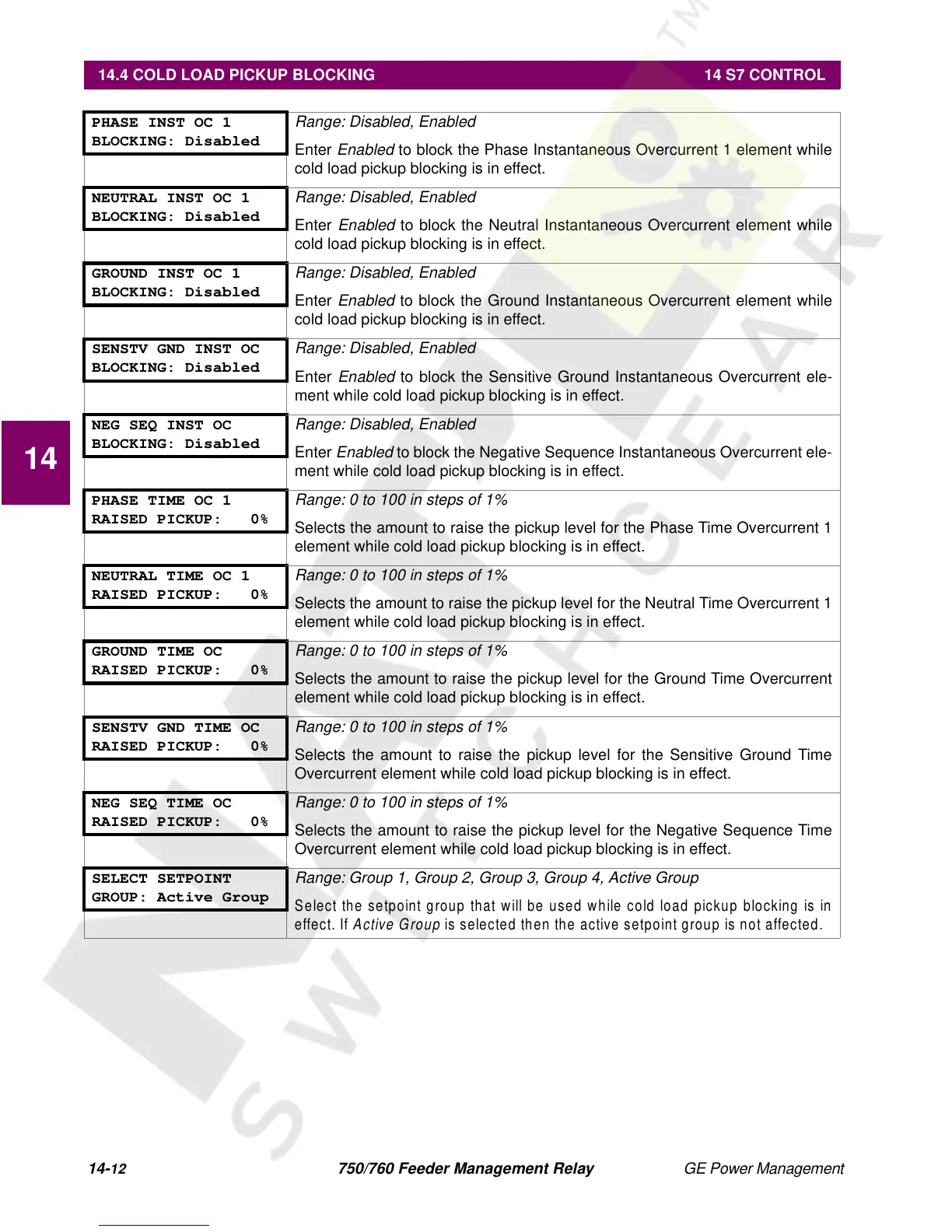

14.4 COLD LOAD PICKUP BLOCKING 14 S7 CONTROL
14
PHASE INST OC 1
BLOCKING: Disabled
Range: Disabled, Enabled
Enter Enabled to block the Phase Instantaneous Overcurrent 1 element while
cold load pickup blocking is in effect.
NEUTRAL INST OC 1
BLOCKING: Disabled
Range: Disabled, Enabled
Enter Enabled to block the Neutral Instantaneous Overcurrent element while
cold load pickup blocking is in effect.
GROUND INST OC 1
BLOCKING: Disabled
Range: Disabled, Enabled
Enter Enabled to block the Ground Instantaneous Overcurrent element while
cold load pickup blocking is in effect.
SENSTV GND INST OC
BLOCKING: Disabled
Range: Disabled, Enabled
Enter Enabled to block the Sensitive Ground Instantaneous Overcurrent ele-
ment while cold load pickup blocking is in effect.
NEG SEQ INST OC
BLOCKING: Disabled
Range: Disabled, Enabled
Enter Enabled to block the Negative Sequence Instantaneous Overcurrent ele-
ment while cold load pickup blocking is in effect.
PHASE TIME OC 1
RAISED PICKUP: 0%
Range: 0 to 100 in steps of 1%
Selects the amount to raise the pickup level for the Phase Time Overcurrent 1
element while cold load pickup blocking is in effect.
NEUTRAL TIME OC 1
RAISED PICKUP: 0%
Range: 0 to 100 in steps of 1%
Selects the amount to raise the pickup level for the Neutral Time Overcurrent 1
element while cold load pickup blocking is in effect.
GROUND TIME OC
RAISED PICKUP: 0%
Range: 0 to 100 in steps of 1%
Selects the amount to raise the pickup level for the Ground Time Overcurrent
element while cold load pickup blocking is in effect.
SENSTV GND TIME OC
RAISED PICKUP: 0%
Range: 0 to 100 in steps of 1%
Selects the amount to raise the pickup level for the Sensitive Ground Time
Overcurrent element while cold load pickup blocking is in effect.
NEG SEQ TIME OC
RAISED PICKUP: 0%
Range: 0 to 100 in steps of 1%
Selects the amount to raise the pickup level for the Negative Sequence Time
Overcurrent element while cold load pickup blocking is in effect.
SELECT SETPOINT
GROUP: Active Group
Range: Group 1, Group 2, Group 3, Group 4, Active Group
Select the setpoint group that will be used while cold load pickup blocking is in
effect. If
Active Group is selected then the active setpoint group is not affected.
