GE Power Management 750/760 Feeder Management Relay 16-
19

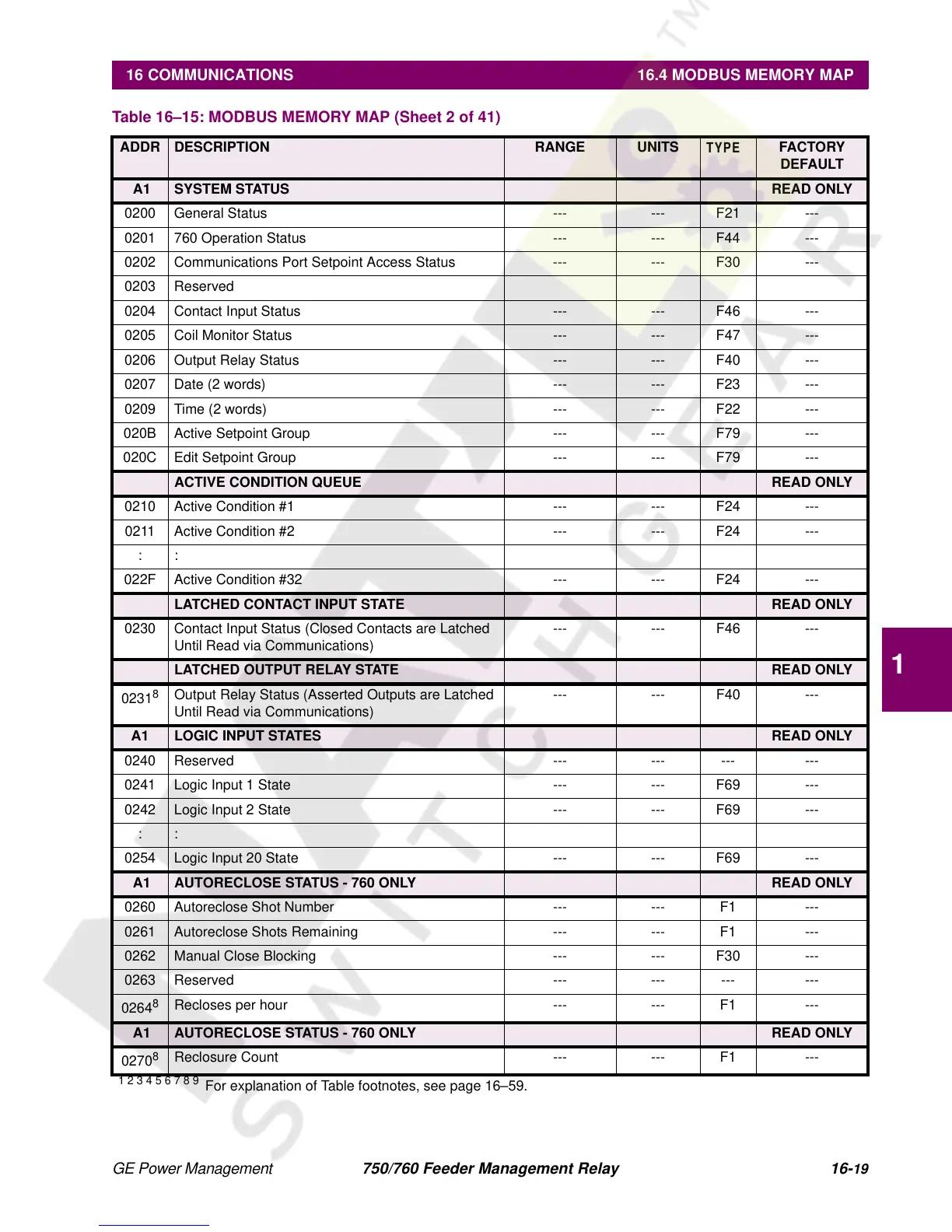

16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
A1 SYSTEM STATUS READ ONLY
0200 General Status --- --- F21 ---
0201 760 Operation Status --- --- F44 ---
0202 Communications Port Setpoint Access Status --- --- F30 ---
0203 Reserved
0204 Contact Input Status --- --- F46 ---
0205 Coil Monitor Status --- --- F47 ---
0206 Output Relay Status --- --- F40 ---
0207 Date (2 words) --- --- F23 ---
0209 Time (2 words) --- --- F22 ---
020B Active Setpoint Group --- --- F79 ---
020C Edit Setpoint Group --- --- F79 ---
ACTIVE CONDITION QUEUE READ ONLY
0210 Active Condition #1 --- --- F24 ---
0211 Active Condition #2 --- --- F24 ---
::
022F Active Condition #32 --- --- F24 ---
LATCHED CONTACT INPUT STATE READ ONLY
0230 Contact Input Status (Closed Contacts are Latched
Until Read via Communications)
--- --- F46 ---
LATCHED OUTPUT RELAY STATE READ ONLY
0231
8
Output Relay Status (Asserted Outputs are Latched
Until Read via Communications)
--- --- F40 ---
A1 LOGIC INPUT STATES READ ONLY
0240 Reserved --- --- --- ---
0241 Logic Input 1 State --- --- F69 ---
0242 Logic Input 2 State --- --- F69 ---
::
0254 Logic Input 20 State --- --- F69 ---
A1 AUTORECLOSE STATUS - 760 ONLY READ ONLY
0260 Autoreclose Shot Number --- --- F1 ---
0261 Autoreclose Shots Remaining --- --- F1 ---
0262 Manual Close Blocking --- --- F30 ---
0263 Reserved --- --- --- ---
0264
8
Recloses per hour --- --- F1 ---
A1 AUTORECLOSE STATUS - 760 ONLY READ ONLY
0270
8
Reclosure Count --- --- F1 ---
Table 16–15: MODBUS MEMORY MAP (Sheet 2 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
