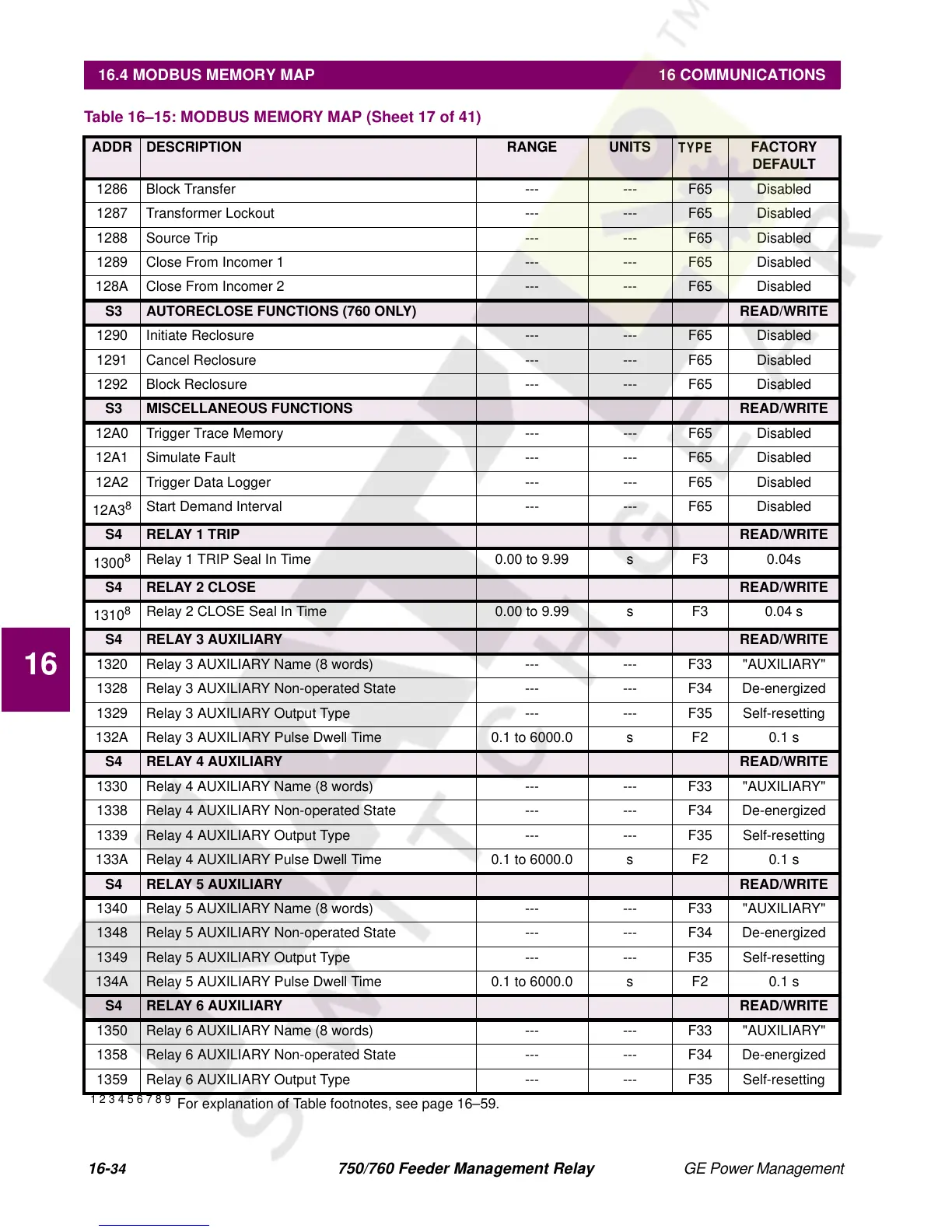

16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
1286 Block Transfer --- --- F65 Disabled
1287 Transformer Lockout --- --- F65 Disabled
1288 Source Trip --- --- F65 Disabled
1289 Close From Incomer 1 --- --- F65 Disabled
128A Close From Incomer 2 --- --- F65 Disabled
S3 AUTORECLOSE FUNCTIONS (760 ONLY) READ/WRITE
1290 Initiate Reclosure --- --- F65 Disabled
1291 Cancel Reclosure --- --- F65 Disabled
1292 Block Reclosure --- --- F65 Disabled
S3 MISCELLANEOUS FUNCTIONS READ/WRITE
12A0 Trigger Trace Memory --- --- F65 Disabled
12A1 Simulate Fault --- --- F65 Disabled
12A2 Trigger Data Logger --- --- F65 Disabled
12A3
8
Start Demand Interval --- --- F65 Disabled
S4 RELAY 1 TRIP READ/WRITE
1300
8
Relay 1 TRIP Seal In Time 0.00 to 9.99 s F3 0.04s
S4 RELAY 2 CLOSE READ/WRITE
1310
8
Relay 2 CLOSE Seal In Time 0.00 to 9.99 s F3 0.04 s
S4 RELAY 3 AUXILIARY READ/WRITE
1320 Relay 3 AUXILIARY Name (8 words) --- --- F33 "AUXILIARY"
1328 Relay 3 AUXILIARY Non-operated State --- --- F34 De-energized
1329 Relay 3 AUXILIARY Output Type --- --- F35 Self-resetting
132A Relay 3 AUXILIARY Pulse Dwell Time 0.1 to 6000.0 s F2 0.1 s
S4 RELAY 4 AUXILIARY READ/WRITE
1330 Relay 4 AUXILIARY Name (8 words) --- --- F33 "AUXILIARY"
1338 Relay 4 AUXILIARY Non-operated State --- --- F34 De-energized
1339 Relay 4 AUXILIARY Output Type --- --- F35 Self-resetting
133A Relay 4 AUXILIARY Pulse Dwell Time 0.1 to 6000.0 s F2 0.1 s
S4 RELAY 5 AUXILIARY READ/WRITE
1340 Relay 5 AUXILIARY Name (8 words) --- --- F33 "AUXILIARY"
1348 Relay 5 AUXILIARY Non-operated State --- --- F34 De-energized
1349 Relay 5 AUXILIARY Output Type --- --- F35 Self-resetting
134A Relay 5 AUXILIARY Pulse Dwell Time 0.1 to 6000.0 s F2 0.1 s
S4 RELAY 6 AUXILIARY READ/WRITE
1350 Relay 6 AUXILIARY Name (8 words) --- --- F33 "AUXILIARY"
1358 Relay 6 AUXILIARY Non-operated State --- --- F34 De-energized
1359 Relay 6 AUXILIARY Output Type --- --- F35 Self-resetting
Table 16–15: MODBUS MEMORY MAP (Sheet 17 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
