GE Power Management 750/760 Feeder Management Relay 16-
47
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
1836
1
Fault Type Output to Relays 4 to 7 --- --- F30 Disabled
1837
9
Fault Location After Trip ---- ---- F30 Disabled
S6 CURRENT DEMAND READ/WRITE
1840 Current Demand Function --- --- F38 Disabled
1841 Current Demand Measurement Type --- --- F58 Thermal Exp.
1842 Current Demand Thermal 90% Response --- --- F16 15 min.
1843 Current Demand Time Interval --- --- F16 20 min.
1844 Current Demand Relays --- --- F57 None
1845 Current Demand Pickup 10 to 10000 A F1 1000 A
S6 REAL POWER DEMAND READ/WRITE
1848 Real Power Demand Function --- --- F38 Disabled
1849 Real Power Demand Measurement Type --- --- F58 Block Interval
184A Real Power Demand Thermal 90% Response --- --- F16 15 min.
184B Real Power Demand Time Interval --- --- F16 20 min.
184C Real Power Demand Relays --- --- F57 None
184D
2
Real Power Demand Pickup 1 to 30000 kW F86 100 kW
S6 REACTIVE POWER DEMAND READ/WRITE
1850 Reactive Power Demand Function --- --- F38 Disabled
1851 Reactive Power Demand Measurement Type --- --- F58 Block Interval
1852 Reactive Power Demand Thermal 90% Response --- --- F16 15 min.
1853 Reactive Power Demand Time Interval --- --- F16 20 min.
1854 Reactive Power Demand Relays --- --- F57 None
1855
2
Reactive Power Demand Pickup 1 to 30000 kvar F86 100 kvar
S6 APPARENT POWER DEMAND READ/WRITE
1858 Apparent Power Demand Function --- --- F38 Disabled
1859 Apparent Power Demand Measurement Type --- --- F58 Block Interval
185A App. Power Demand Thermal 90% Response --- --- F16 15 min.
185B Apparent Power Demand Time Interval --- --- F16 20 min.
185C Apparent Power Demand Relays --- --- F57 None
185D
2
Apparent Power Demand Pickup 1 to 30000 kVA F86 100 kVA
S6
5
PULSE OUTPUT READ/WRITE
1860 Pulse Output Function --- --- F38 Disabled
1861 Positive Watthours Pulse Output Relays --- --- F57 None
1862 Positive Watthours Pulse Interval 0 to 65535 kWh F86 100 kWh
1863 Negative Watthours Pulse Output Relays --- --- F57 None
1864 Negative Watthours Pulse Interval 0 to 65535 kWh F86 100 kWh

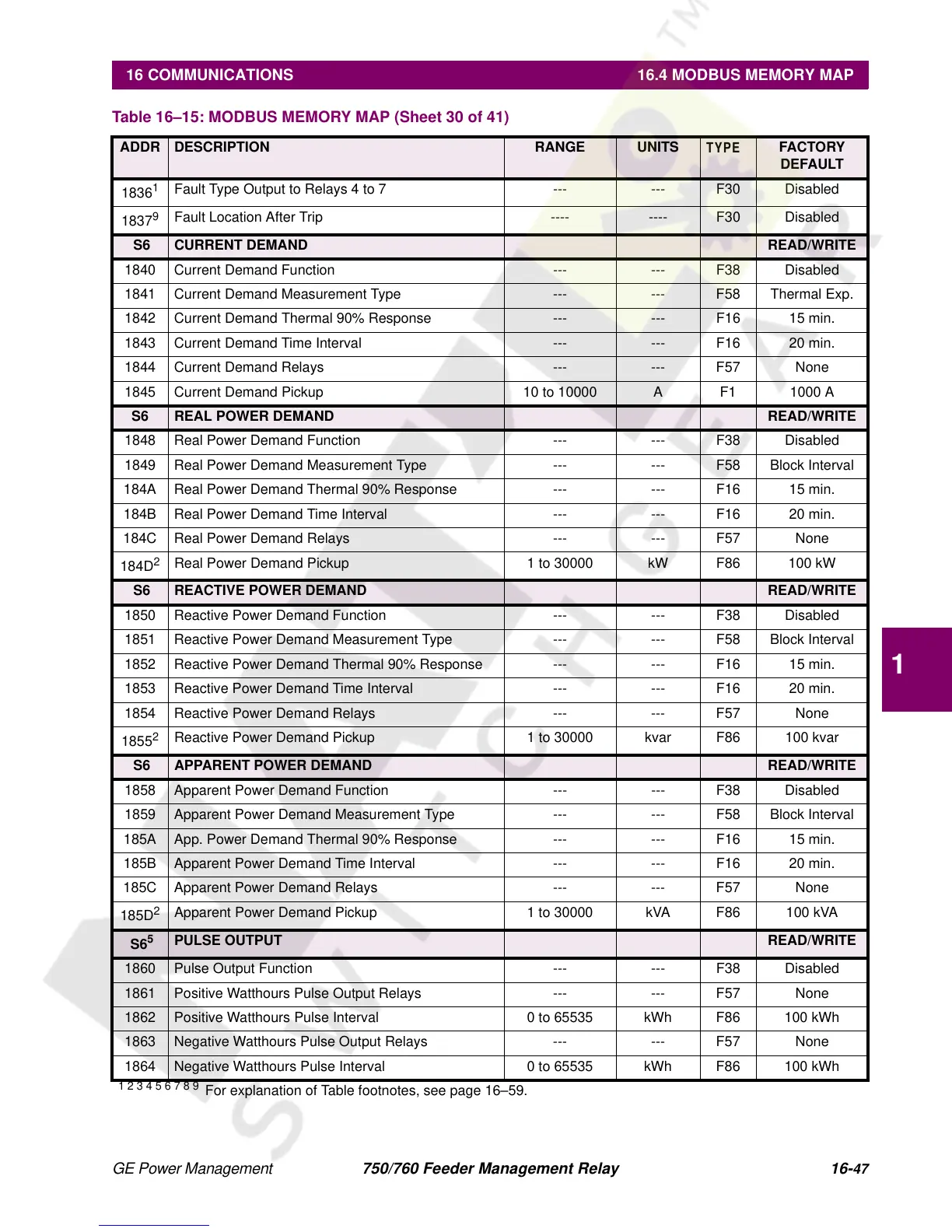

Table 16–15: MODBUS MEMORY MAP (Sheet 30 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
