GE Power Management 750/760 Feeder Management Relay 16-
49
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
S6 ANALOG OUTPUT 2 READ/WRITE
18C4 Analog Output 2 Parameter --- --- F77 Disabled
18C5 Analog Output 2 Minimum --- --- F78 0
18C6 Analog Output 2 Maximum --- --- F78 0
S6 ANALOG OUTPUT 3 READ/WRITE
18C8 Analog Output 3 Parameter --- --- F77 Disabled
18C9 Analog Output 3 Minimum --- --- F78 0
18CA Analog Output 3 Maximum --- --- F78 0
S6 ANALOG OUTPUT 4 READ/WRITE
18CC Analog Output 4 Parameter --- --- F77 Disabled
18CD Analog Output 4 Minimum --- --- F78 0
18CE Analog Output 4 Maximum --- --- F78 0
S6 ANALOG OUTPUT 5 READ/WRITE
18D0 Analog Output 5 Parameter --- --- F77 Disabled
18D1 Analog Output 5 Minimum --- --- F78 0
18D2 Analog Output 5 Maximum --- --- F78 0
S6 ANALOG OUTPUT 6 READ/WRITE
18D4 Analog Output 6 Parameter --- --- F77 Disabled
18D5 Analog Output 6 Minimum --- --- F78 0
18D6 Analog Output 6 Maximum --- --- F78 0
S6 ANALOG OUTPUT 7 READ/WRITE
18D8 Analog Output 7 Parameter --- --- F77 Disabled
18D9 Analog Output 7 Minimum --- --- F78 0
18DA Analog Output 7 Maximum --- --- F78 0
S6 ANALOG OUTPUT 8 READ/WRITE
18DC Analog Output 8 Parameter --- --- F77 Disabled
18DD Analog Output 8 Minimum --- --- F78 0
18DE Analog Output 8 Maximum --- --- F78 0
S6 OVERFREQUENCY READ/WRITE
18E0 Overfrequency Function --- --- F38 Disabled
18E1 Overfrequency Relays --- --- F57 None
18E2 Overfrequency Pickup 20.00 to 65.00 Hz F3 60.50 Hz
18E3 Overfrequency Delay 0.0 to 6000.0 s F2 5.0 s
S6 TRIP COUNTER READ/WRITE
1900 Trip Counter Function --- --- F38 Disabled
1901 Trip Counter Relays --- --- F57 None
1902 Trip Counter Limit 1 to 10000 --- F1 10000 Trips

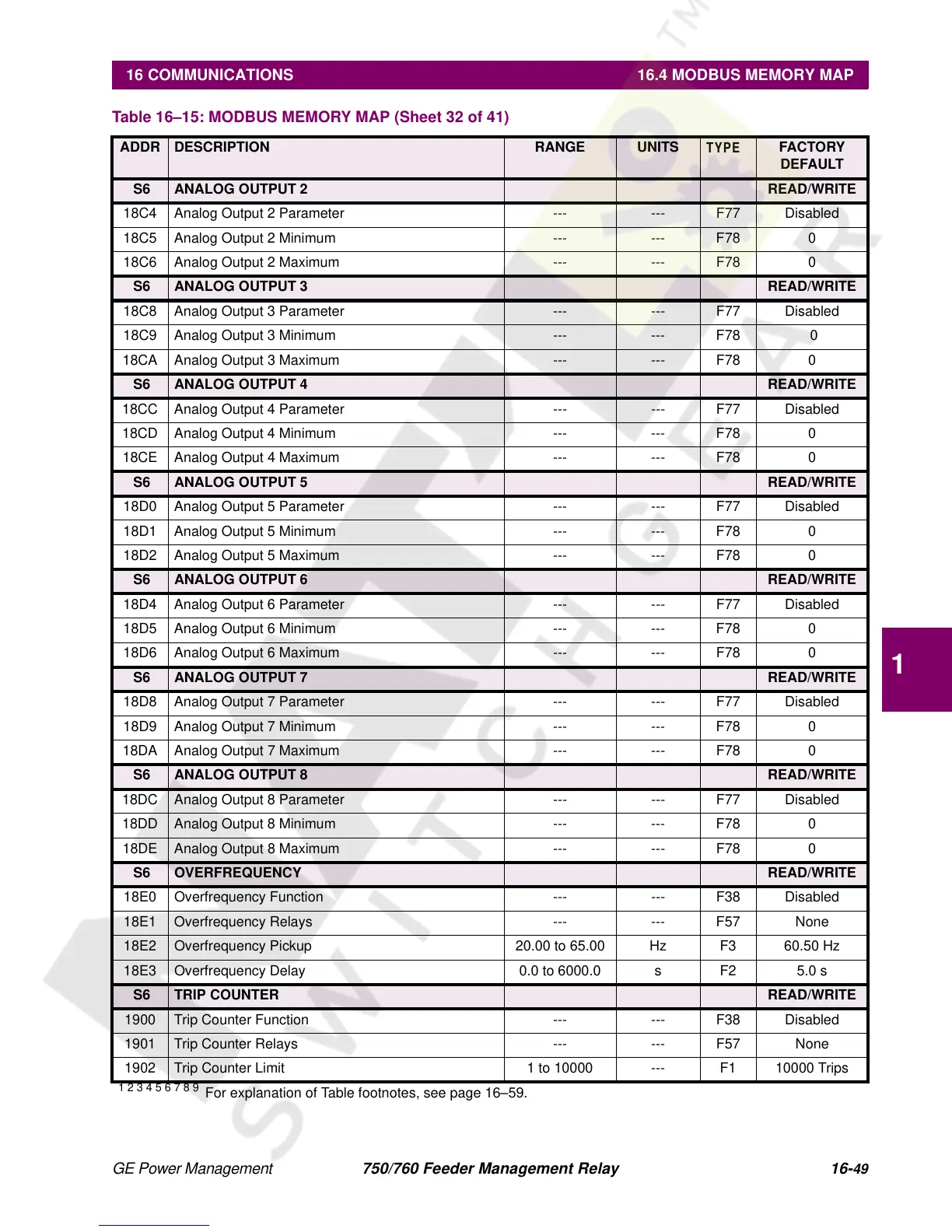

Table 16–15: MODBUS MEMORY MAP (Sheet 32 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
