GE 750

GE Power Management 750/760 Feeder Management Relay 16-
55
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
1BB5
2
Lockout For Current Above 0.00 to 20.00 x CT F3 20.00 x CT
S7 ZONE COORDINATION - 760 ONLY READ/WRITE
1BB8
1
Zone Coordination Function --- --- F30 Disabled
1BB9
1
Phase Current Increase 0.05 to 20.00 x CT F3 1.00 x CT
1BBA
1
Neutral Current Increase 0.05 to 20.00 x CT F3 1.00 x CT
1BBB
1
Maximum fault Clearing Time 1 to 1000 s F1 10 s
S7 RECLOSURE SHOT 1 - 760 ONLY READ/WRITE
1BC0
2
Deadtime Before Reclosure 1 0.00 to 300.00 s F3 0.50 s
1BC1
1
Select Setpoint Group --- --- F80 Active Group
1BC2
2
Overcurrent Blocking Flags --- --- F59 None blocked
1BC3
1
Phase Time Overcurrent 1 Raised Pickup 0 to 100 % F1 0%
1BC4
1
Neutral Time Overcurrent 1 Raised Pickup 0 to 100 % F1 0%
1BC5
1
Ground Time Overcurrent Raised Pickup 0 to 100 % F1 0%
1BC6
1
Negative Sequence Time Overcurrent Raised Pickup 0 to 100 % F1 0%
1BC7
3
Sensitive Ground Time Overcurrent Raised Pickup 0 to 100 % F1 0%
S7 RECLOSURE SHOT 2 - 760 ONLY READ/WRITE
1BD0
2
Deadtime Before Reclosure 2 0.00 to 300.00 s F3 3.00 s
1BD1
1
Select Setpoint Group --- --- F80 Active Group
1BD2
2
Overcurrent Blocking Flags --- --- F59 None blocked
1BD3
1
Phase Time Overcurrent 1 Raised Pickup 0 to 100 % F1 0%
1BD4
1
Neutral Time Overcurrent 1 Raised Pickup 0 to 100 % F1 0%
1BD5
1
Ground Time Overcurrent Raised Pickup 0 to 100 % F1 0%
1BD6
1
Negative Sequence Time Overcurrent Raised Pickup 0 to 100 % F1 0%
1BD7
3
Sensitive Ground Time Overcurrent Raised Pickup 0 to 100 % F1 0%
S7 RECLOSURE SHOT 3 - 760 ONLY READ/WRITE
1BE0
2
Deadtime Before Reclosure 3 0.00 to 300.00 s F3 4.00 s
1BE1
1
Select Setpoint Group --- --- F80 Active Group
1BE2
2
Overcurrent Blocking Flags --- --- F59 None blocked
1BE3
1
Phase Time Overcurrent 1 Raised Pickup 0 to 100 % F1 0%
1BE4
1
Neutral Time Overcurrent 1 Raised Pickup 0 to 100 % F1 0%
1BE5
1
Ground Time Overcurrent Raised Pickup 0 to 100 % F1 0%
1BE6
1
Negative Sequence Time Overcurrent Raised Pickup 0 to 100 % F1 0%
1BE7
3
Sensitive Ground Time Overcurrent Raised Pickup 0 to 100 % F1 0%

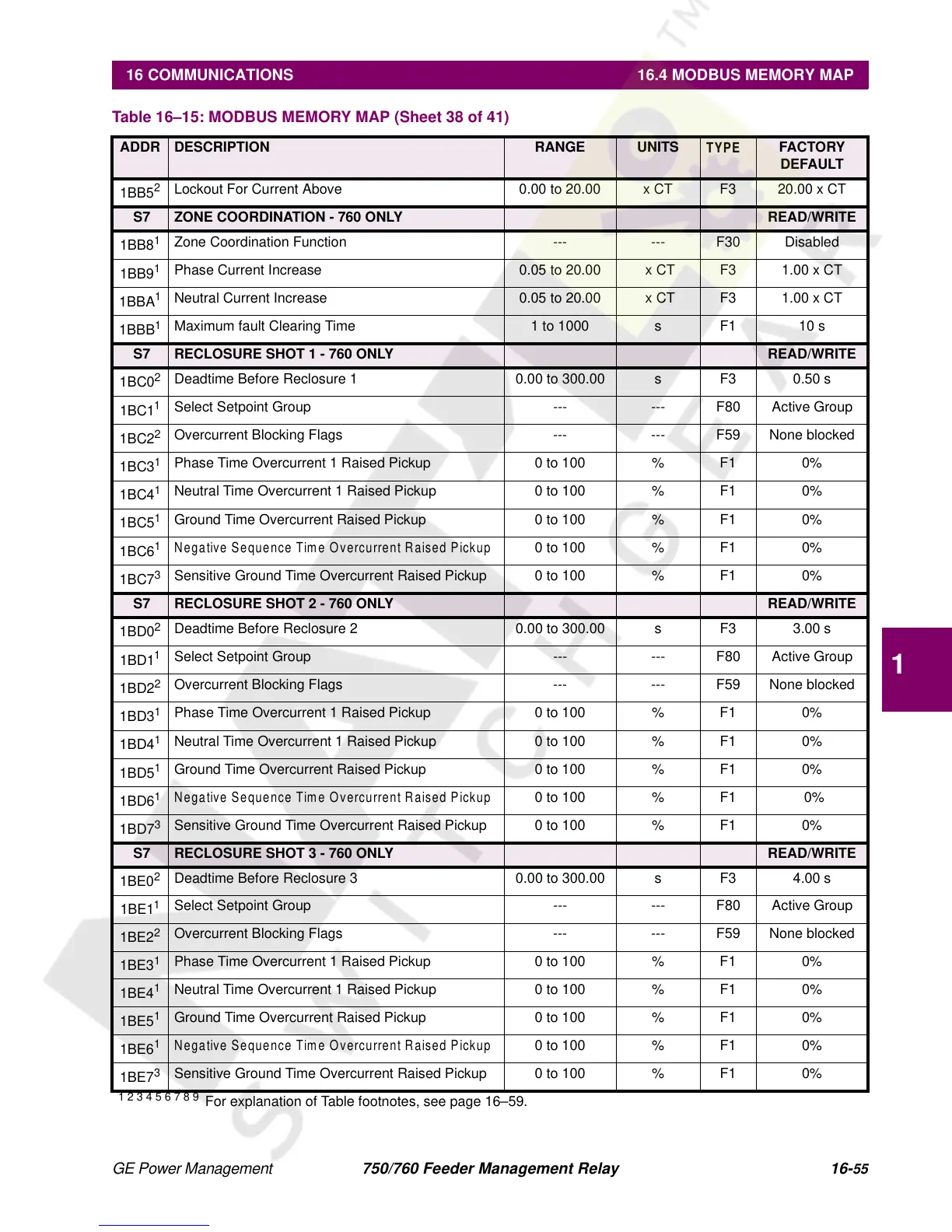

Table 16–15: MODBUS MEMORY MAP (Sheet 38 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
