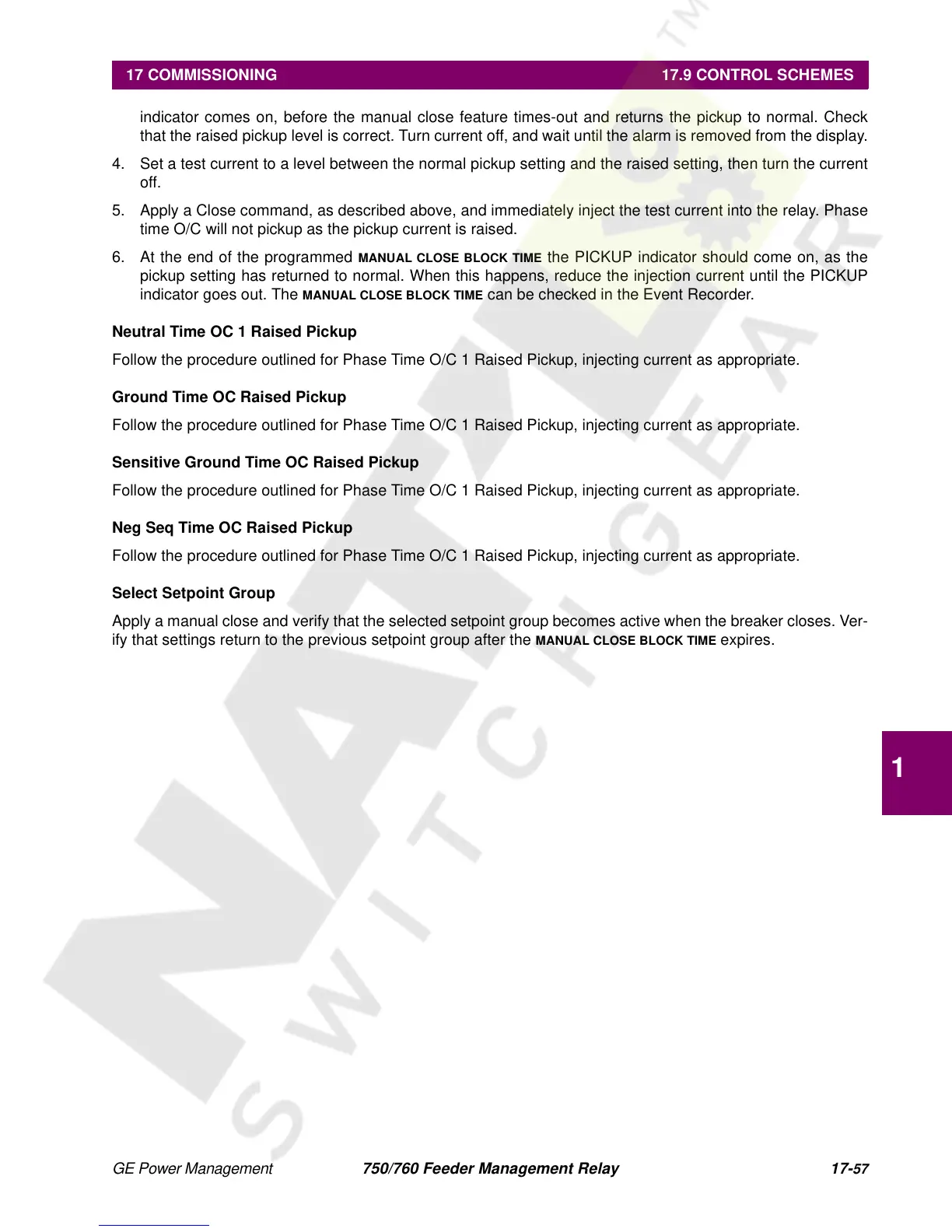

GE Power Management 750/760 Feeder Management Relay 17-
57
17 COMMISSIONING 17.9 CONTROL SCHEMES
17
indicator comes on, before the manual close feature times-out and returns the pickup to normal. Check
that the raised pickup level is correct. Turn current off, and wait until the alarm is removed from the display.
4. Set a test current to a level between the normal pickup setting and the raised setting, then turn the current
off.
5. Apply a Close command, as described above, and immediately inject the test current into the relay. Phase
time O/C will not pickup as the pickup current is raised.
6. At the end of the programmed
MANUAL CLOSE BLOCK TIME
the PICKUP indicator should come on, as the
pickup setting has returned to normal. When this happens, reduce the injection current until the PICKUP
indicator goes out. The
MANUAL CLOSE BLOCK TIME
can be checked in the Event Recorder.
Neutral Time OC 1 Raised Pickup
Follow the procedure outlined for Phase Time O/C 1 Raised Pickup, injecting current as appropriate.
Ground Time OC Raised Pickup
Follow the procedure outlined for Phase Time O/C 1 Raised Pickup, injecting current as appropriate.
Sensitive Ground Time OC Raised Pickup
Follow the procedure outlined for Phase Time O/C 1 Raised Pickup, injecting current as appropriate.
Neg Seq Time OC Raised Pickup
Follow the procedure outlined for Phase Time O/C 1 Raised Pickup, injecting current as appropriate.
Select Setpoint Group
Apply a manual close and verify that the selected setpoint group becomes active when the breaker closes. Ver-
ify that settings return to the previous setpoint group after the
MANUAL CLOSE BLOCK TIME
expires.
