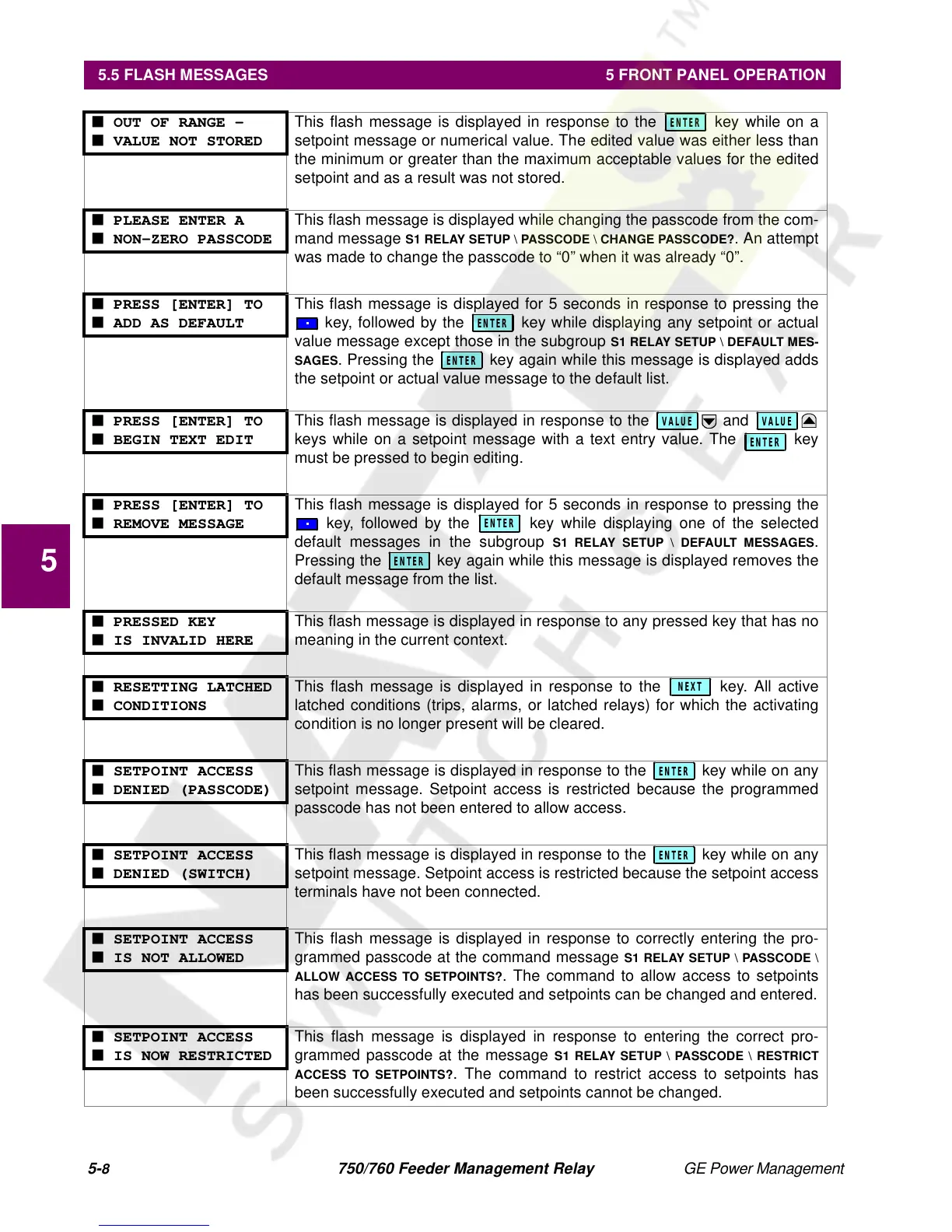

5.5 FLASH MESSAGES 5 FRONT PANEL OPERATION
5
■ OUT OF RANGE -
■ VALUE NOT STORED
This flash message is displayed in response to the key while on a
setpoint message or numerical value. The edited value was either less than
the minimum or greater than the maximum acceptable values for the edited
setpoint and as a result was not stored.
■ PLEASE ENTER A
■ NON-ZERO PASSCODE
This flash message is displayed while changing the passcode from the com-
mand message
S1 RELAY SETUP \ PASSCODE \ CHANGE PASSCODE?
. An attempt
was made to change the passcode to “0” when it was already “0”.
■ PRESS [ENTER] TO
■ ADD AS DEFAULT
This flash message is displayed for 5 seconds in response to pressing the
key, followed by the key while displaying any setpoint or actual
value message except those in the subgroup
S1 RELAY SETUP \ DEFAULT MES-
SAGES
. Pressing the key again while this message is displayed adds
the setpoint or actual value message to the default list.
■ PRESS [ENTER] TO
■ BEGIN TEXT EDIT
This flash message is displayed in response to the and
keys while on a setpoint message with a text entry value. The key
must be pressed to begin editing.
■ PRESS [ENTER] TO
■ REMOVE MESSAGE
This flash message is displayed for 5 seconds in response to pressing the
key, followed by the key while displaying one of the selected
default messages in the subgroup
S1 RELAY SETUP \ DEFAULT MESSAGES
.
Pressing the key again while this message is displayed removes the
default message from the list.
■ PRESSED KEY
■ IS INVALID HERE
This flash message is displayed in response to any pressed key that has no
meaning in the current context.
■ RESETTING LATCHED
■ CONDITIONS
This flash message is displayed in response to the key. All active
latched conditions (trips, alarms, or latched relays) for which the activating
condition is no longer present will be cleared.
■ SETPOINT ACCESS
■ DENIED (PASSCODE)
This flash message is displayed in response to the key while on any
setpoint message. Setpoint access is restricted because the programmed
passcode has not been entered to allow access.
■ SETPOINT ACCESS
■ DENIED (SWITCH)
This flash message is displayed in response to the key while on any
setpoint message. Setpoint access is restricted because the setpoint access
terminals have not been connected.
■ SETPOINT ACCESS
■ IS NOT ALLOWED
This flash message is displayed in response to correctly entering the pro-
grammed passcode at the command message
S1 RELAY SETUP \ PASSCODE \
ALLOW ACCESS TO SETPOINTS?
. The command to allow access to setpoints
has been successfully executed and setpoints can be changed and entered.
■ SETPOINT ACCESS
■ IS NOW RESTRICTED
This flash message is displayed in response to entering the correct pro-
grammed passcode at the message
S1 RELAY SETUP \ PASSCODE \ RESTRICT
ACCESS TO SETPOINTS?
. The command to restrict access to setpoints has
been successfully executed and setpoints cannot be changed.
ENTER
ENTER
ENTER
VALUE VALUE
ENTER
ENTER
ENTER
NEXT
ENTER
ENTER
