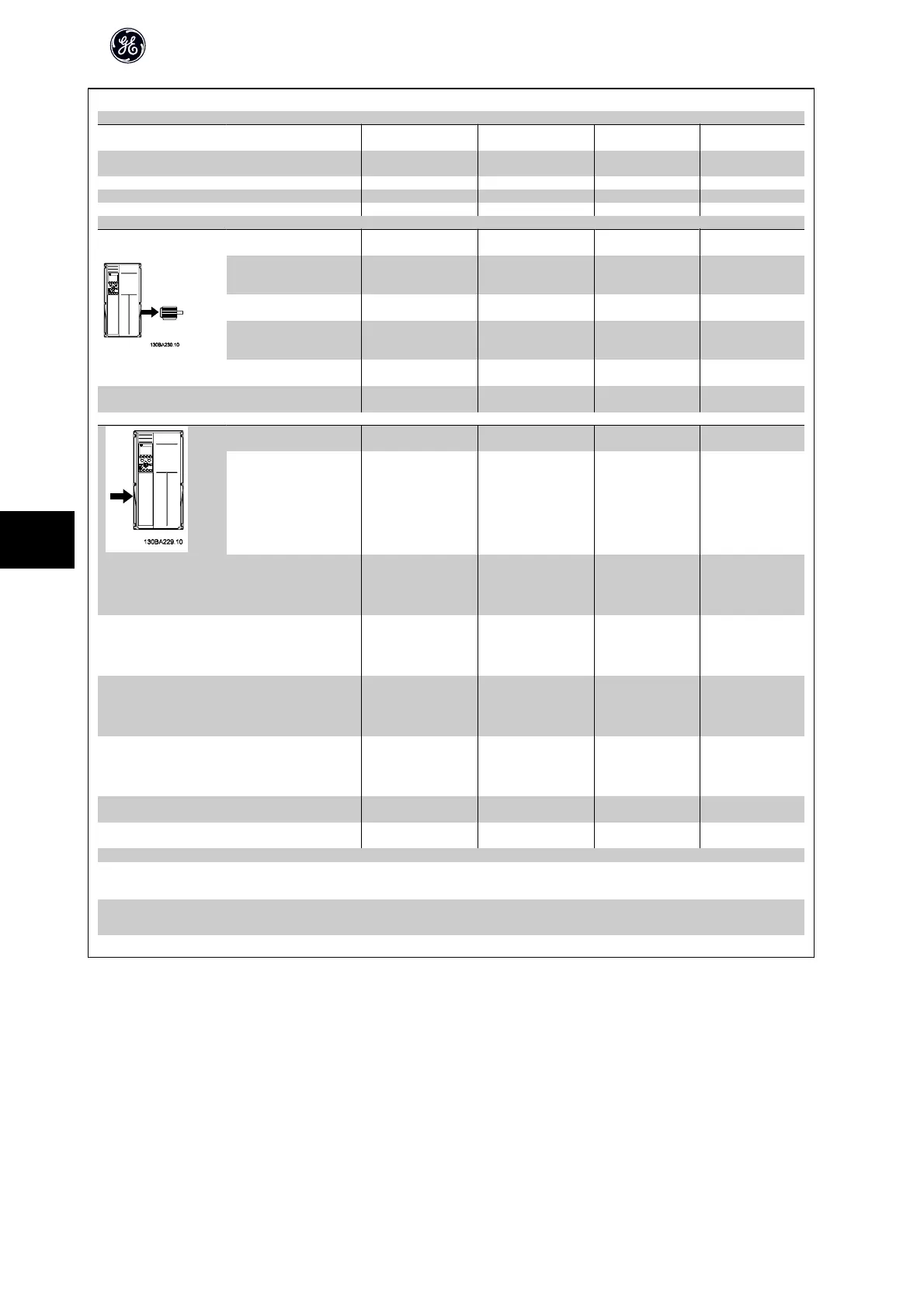

GE af-600 fp

Mains Supply 3 x 380 - 480 VAC
P315 P355 P400 P450
Typical Shaft output at 400 V
[kW]
315 355 400 450
Typical Shaft output at 460 V
[HP]
450 500 550 600
Unit Size IP21 51 51 51 51
Unit SizeIP54 51 51 51 51
Unit Size IP00 52 52 52 52
Output current
Continuous
(at 400 V) [A]
600 658 745 800
Intermittent (60 sec over-
load)
(at 400 V) [A]
660 724 820 880
Continuous
(at 460 V) [A]
540 590 678 730
Intermittent (60 sec over-
load)
(at 460 V) [A]
594 649 746 803
Continuous KVA
(at 400 V) [KVA]
416 456 516 554
Continuous KVA
(at 460 V) [KVA]
430 470 540 582
Max. input current
Continuous
(at 400 V ) [A]
590 647 733 787
Continuous
(at 460 V) [A]
531 580 667 718
Max. cable size, mains, mo-
tor and load share [mm
2
(AWG
2)
)]
4x240
(4x500 mcm)
4x240
(4x500 mcm)
4x240
(4x500 mcm)
4x240
(4x500 mcm)
Max. cable size, brake [mm
2
(AWG
2)
)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
Max. external pre-fuses [A]
1
700 900 900 900
Estimated power loss
at rated max. load [W]
4)
7630 7701 8879 9428
Weight,
Unit Size IP21, IP 54 [kg]
263 270 272 313
Weight,
Unit Size IP00 [kg]
221 234 236 277
Efficiency
4)
0.98
Output frequency 0 - 600 Hz
Heatsink overtemp. trip 95 °C
Power card ambient trip 68 °C
AF-600 FP High Power Operating Instructions
154
8
