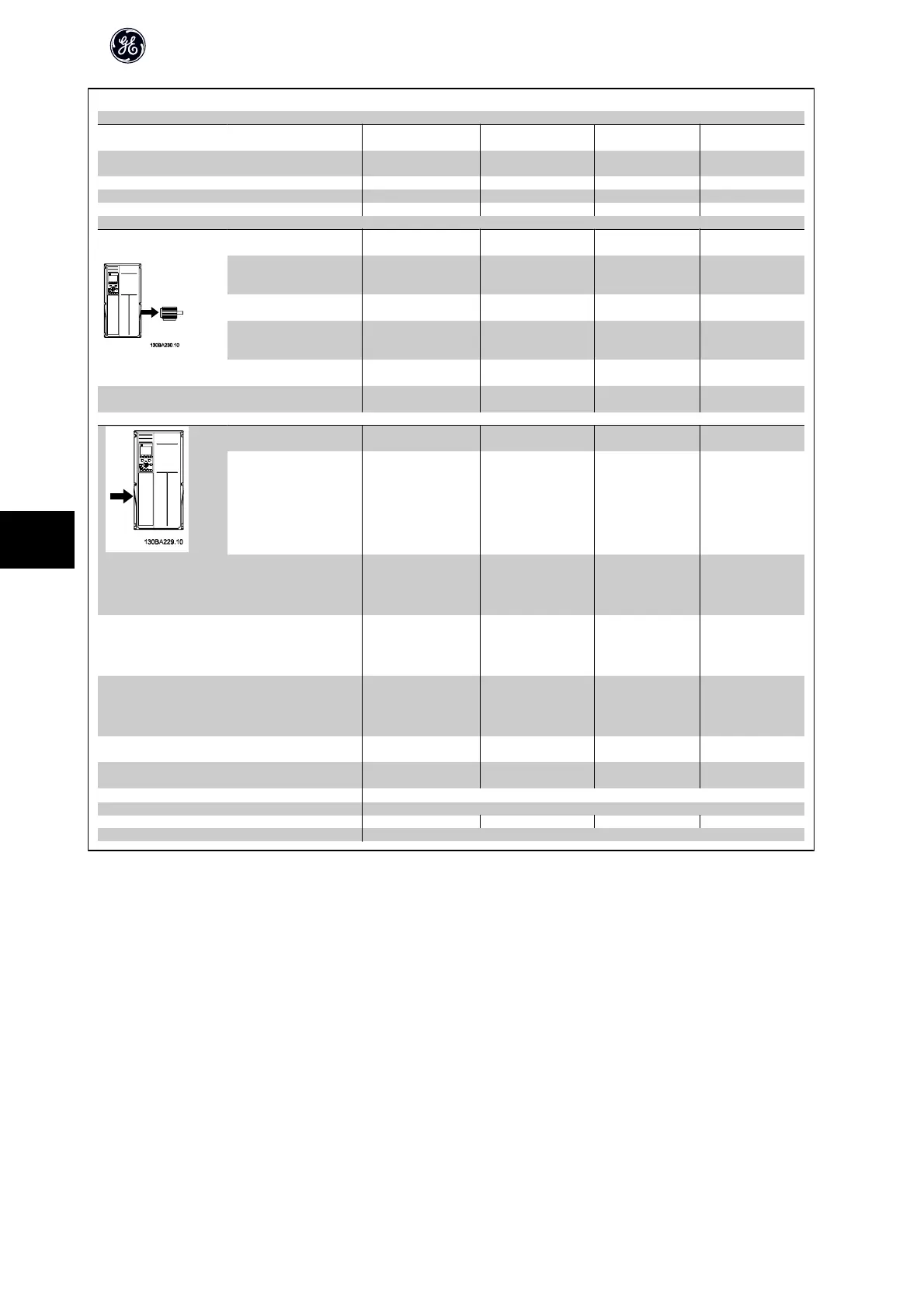

GE af-600 fp

Mains Supply 3 x 525- 600 VAC
P110 P132 P160 P200
Typical Shaft output at 550 V
[kW]
110 132 160 200
Typical Shaft output at 575 V
[HP]
150 200 250 300
Unit Size IP21 41 41 42 42
Unit Size IP54 41 41 42 42
Unit Size IP00 43 43 44 44
Output current
Continuous
(at 550 V) [A]
162 201 253 303
Intermittent (60 sec over-
load)
(at 550 V) [A]
178 221 278 333
Continuous
(at 575 V) [A]
155 192 242 290
Intermittent (60 sec over-
load)
(at 575 V) [A]
171 211 266 319
Continuous KVA
(at 550 V) [KVA]
154 191 241 289
Continuous KVA
(at 575 V) [KVA]
154 191 241 289
Max. input current
Continuous
(at 550 V ) [A]
158 198 245 299
Continuous
(at 575 V) [A]
151 189 234 286
Max. cable size, mains mo-
tor, load share and brake
[mm
2
(AWG)]
2 x 70 (2 x 2/0) 2 x 70 (2 x 2/0) 2 x 185 (2 x 350 mcm) 2 x 185 (2 x 350 mcm)
Max. external pre-fuses [A]
1
315 350 350 400
Estimated power loss
at rated max. load [W]
4)
3114 3612 4292 5156
Weight,
Unit Size IP21, IP 54 [kg]
96 104 125 136
Weight,
Unit Size IP00 [kg]
82 91 112 123
Efficiency
4)
0.98
Output frequency 0 - 600 Hz
Heatsink overtemp. trip 85 °C 90 °C 110 °C 110 °C
Power card ambient trip 60 °C
