74 GE INFORMATION D20MX HARDWARE USER’S MANUAL
CHAPTER 5: CONFIGURING THE SOFTWARE
14.3. Press the Ctrl key and click on the applications you noted in step 10 as unused
applications.
Result: The rows showing unused applications are highlighted.
14.4. Click on Disable Application(s).
Result: A warning dialog appears.
14.5. Click Yes.
Result: The warning dialog and the Application list popup disappear.
15. Import the RADIUS roles from the D20MX default configuration into the D20 device:
15.1. Double-click the D20 device.
Result: The Application List popup appears.
15.2. Double-click the WESMAINT II+ application.
Result: The WESMAINT II+ table icon set appears.
15.3. Right-click the RADIUS Role Table icon and select Import.
Result: The Select source directory dialog appears.
15.4. Browse to the folder containing the exported RADIUS Role Table, select the file
named B014RADR.CSV, and click Open.
Result: The WESMAINT II+ table icon set re-appears.
15.5. Double-click the RADIUS Role Table icon.
Result: The RADIUS Role Table editor appears.

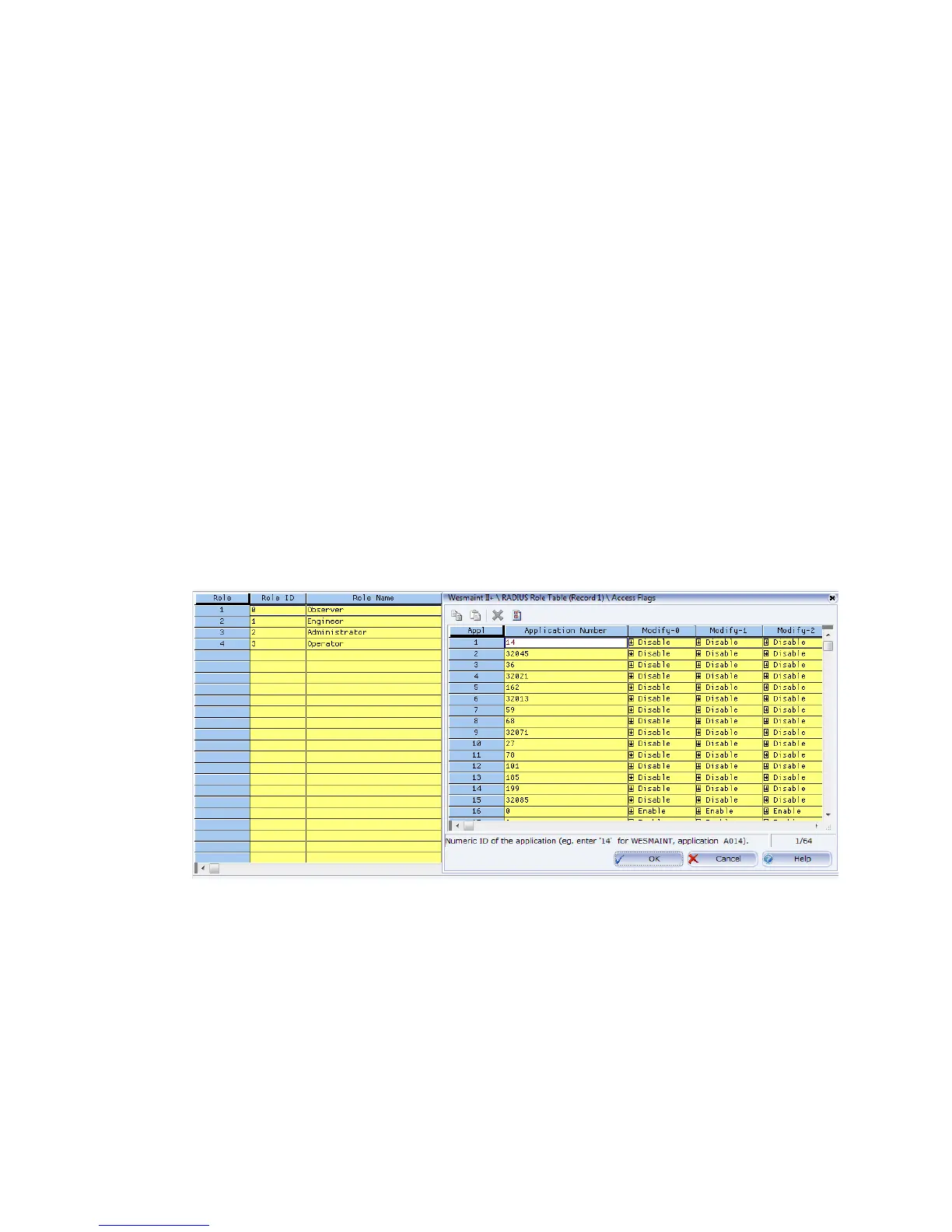

15.6. Compare the first column of the Access Flags sub-table (RADIUS Role Table >
Application Control) to the following figure to confirm that the import was
successful:
15.7. Click OK, OK and Close.
Result: The WESMAINT II+ table editor closes.
16. Import the IP Redundancy Monitor point descriptors:
16.1. Click the Project tab of the original D20 device configuration.
16.2. Double-click the D20 device.
Result: The Application List popup appears.
16.3. Double-click the System Point Database application.
Result: The System Point Database Properties dialog appears.
16.4. Select IP Redundancy Monitor and click Descriptors.
Result: The Point Descriptors dialog appears.
