5.2 VERTICAL MOVEMENT (UP AND DOWN MOVEMENT)

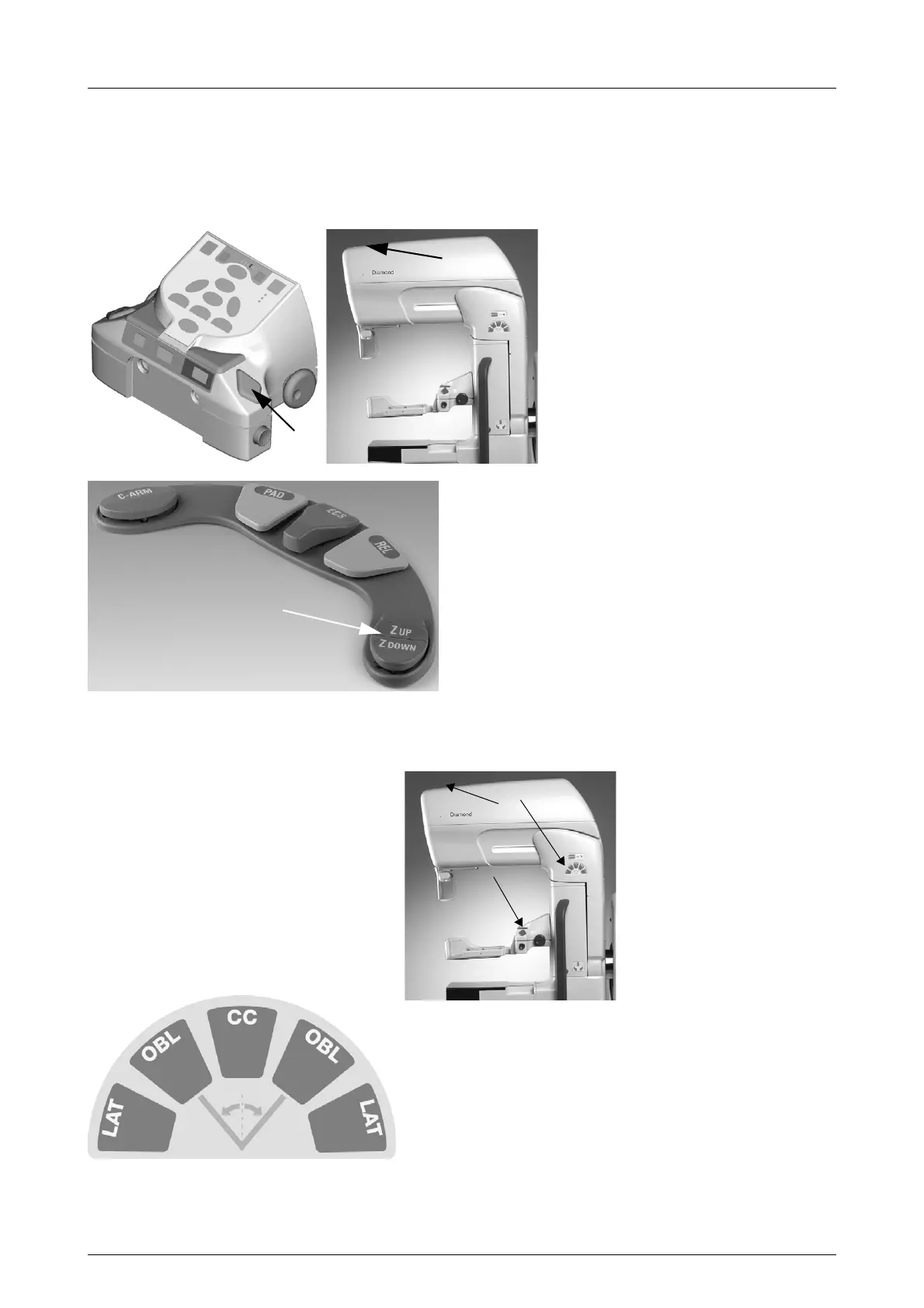

The control buttons for the vertical movement of Diamond’s motorized C-
Arm are located near the C-Arm rotation controls, at the Position Control
Center, at the foot pedals and on top of the tube head.
5.3 SELECTION OF THE PROJECTION ANGLE
The C-Arm rotates ±185° from the vertical
position (0°). Various control buttons are
provided for convenience to drive the
rotation movement. These are located
together with the vertical movement
control buttons at the Position Control
Center and on top of the tube head there is
a central membrane switch panel. The
Diamond C-Arm also has buttons on both
sides that conveniently drive the carriage
CC, OBL and LAT-projections.
