5 Operating procedures
86500-IMG rev 3 GE Healthcare 41
5.9.4 Printer connection
A label printer may be connected to Diamond’s serial port using a serial
communication cable. Diamond’s serial port is located at the lower left of
the unit’s rear cover. Use digital ID Camera to print the information
permanently onto film.

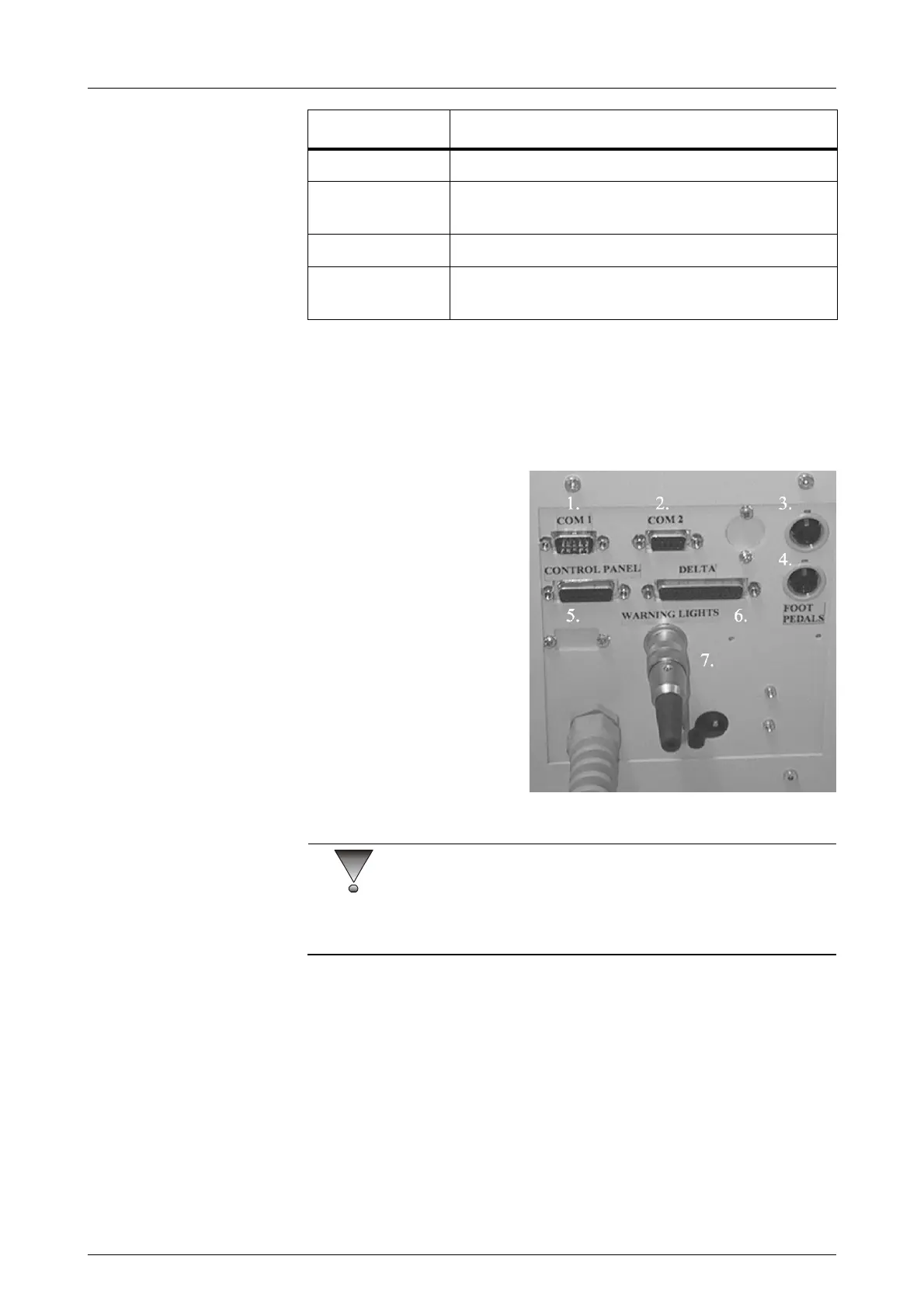

Diamond ports:
1COM1
2 COM2 for film marking
and label printing
3 Foot pedal
4 Foot pedal
5 Control Panel
6Delta 32
7 Warning lights
The Film ID Camera and a
label printer use the same
serial port, i.e., only either one
of the devices may be
connected at one time.
CAUTION!
When connecting Diamond to a printer or a similar combination, make
sure that connection conforms to IEC60601-1-1. The leakage current
values must not exceed the limits. Use isolation transformer if necessary.
15 /09/04 Date of examination (day/month/year)
R1/C1 Site of the primary/secondary detector
(L1, L2, C1, C2, C3, C4, R1, R2)
12345 Exposure counter, up until 99999
_____________
The patient’s name must be handwritten after
printing the label
Explanation
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
