12 Diamond X-ray tube data sheets
88 GE Healthcare 86500-IMG rev 3

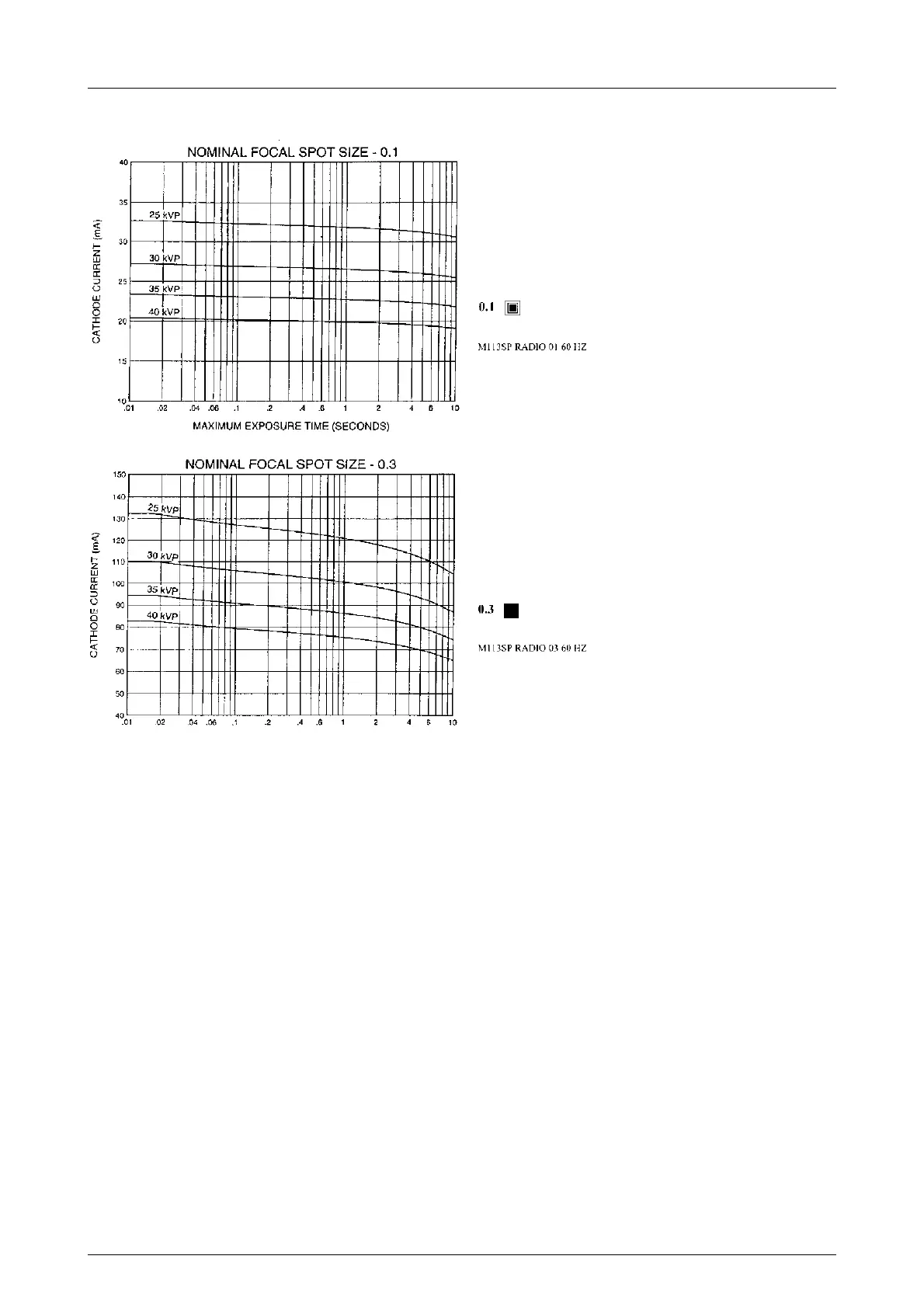

12.4.2 Constant Potential 60 Hz
12.5 DESCRIPTION
The M113SP rotating anode X-ray tube is a 39 kVp VARIAN insert tube with
0.1 mm and 0.3 mm focal spot combination and 77 mm diameter bi-
angular (10°/16°) Molybdenum anode disc, cathode grounded.
The M113SP metal center section X-ray tube is for use in Mammography
systems. The use of a metal center section tube eliminates arcing due to
metal deposition on glass and allows use of a beryllium window in the
insert for minimum inherent filtration.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
