4-56 F35 MULTIPLE FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL

FRONT PANEL INTERFACE CHAPTER 4: INTERFACES

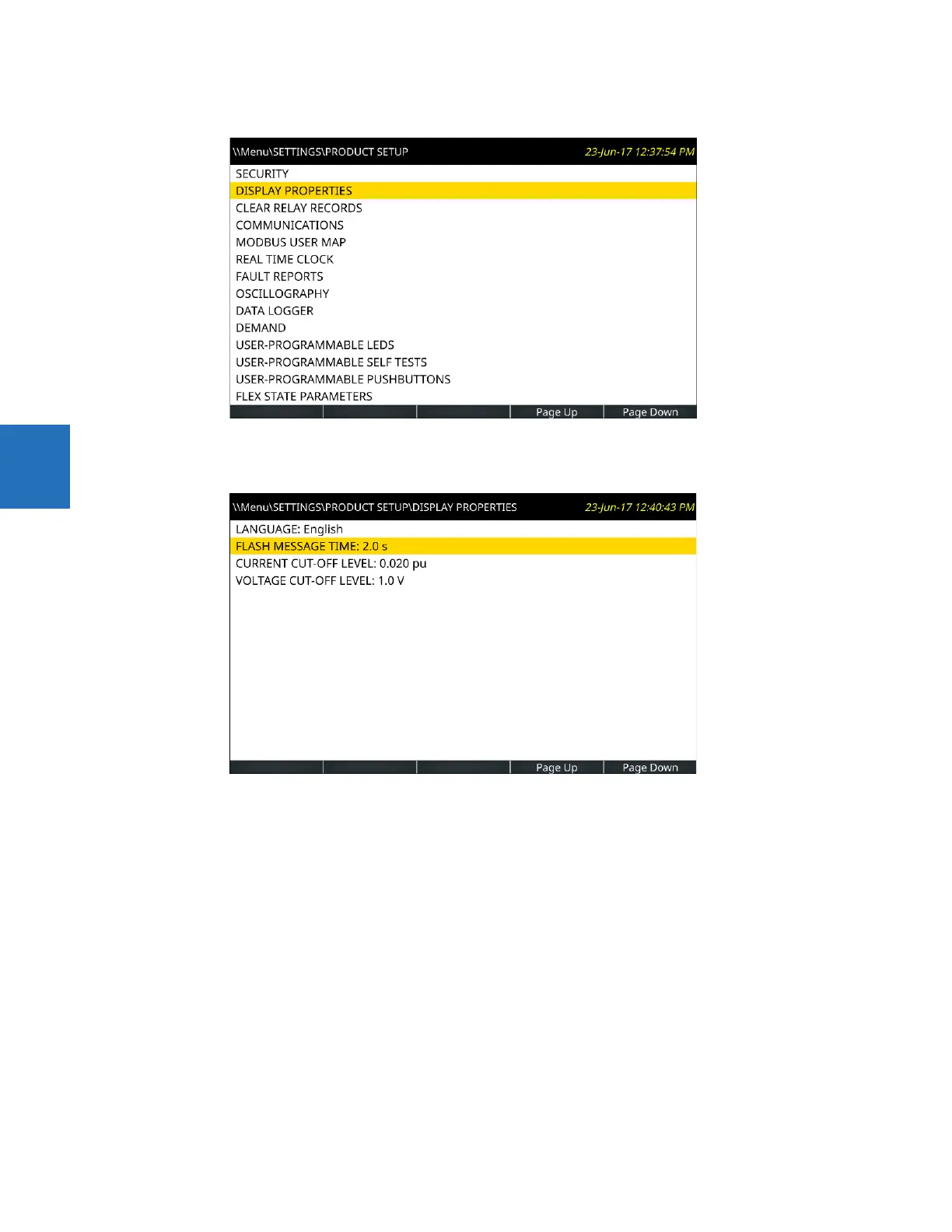

Figure 4-58: Product Setup menu

Use the Up or Down pushbutton to select DISPLAY PROPERTIES, then press the Right or ENTER pushbutton.

Figure 4-59: Display Properties menu

Use the Up or Down pushbutton to select FLASH MESSAGE TIME, then press the Right or ENTER pushbutton. If the relay is

configured to require login to edit settings, and the user is not already logged in, the login page displays. When the user

has successfully logged in, the setting is opened for edit. As the FLASH MESSAGE TIME setting accepts a numerical value, a

keypad displays. The time is to be changed to 4.0 seconds.
