5-94 F35 MULTIPLE FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
PRODUCT SETUP CHAPTER 5: SETTINGS
5
EnerVista setup for IEC 61850
The EnerVista UR Setup software provides the interface to configure F35 settings for the IEC 61850 protocol. This section
describes this interface. The software also supports import/export and merging of IEC 61850 Substation Configuration
Language (SCL) files as documented in the UR Family Communications Guide.
The IEC 61850 protocol configuration settings cannot be accessed through the UR front panel and are instead accessible
with the EnerVista software, via MMS query, read, and write services, or via 61850 SCL file transfer. Accordingly, whereas
other settings are presented in this manual as they appear on the front panel, IEC 61850 settings are presented as they
appear in the software. See the UR Family Communications Guide for MMS and SCL access. Note that if you update the IEC
61850 settings in the EnerVista software by writing to them by MMS while the corresponding IEC 61850 panel is open in
EnerVista, you need to close then open the panel in EnerVista for the correct readings to display.
IEC 61850 protocol configuration settings are accessed through software panels that are selected either in the Online
Window area (see figure) or the Offline Window area in the EnerVista software.
The EnerVista software also includes an interface that is compatible with firmware versions 5.0 to 7.2 to configure
subscribers. Use the Simplified GOOSE Configurator in the Offline Window area.

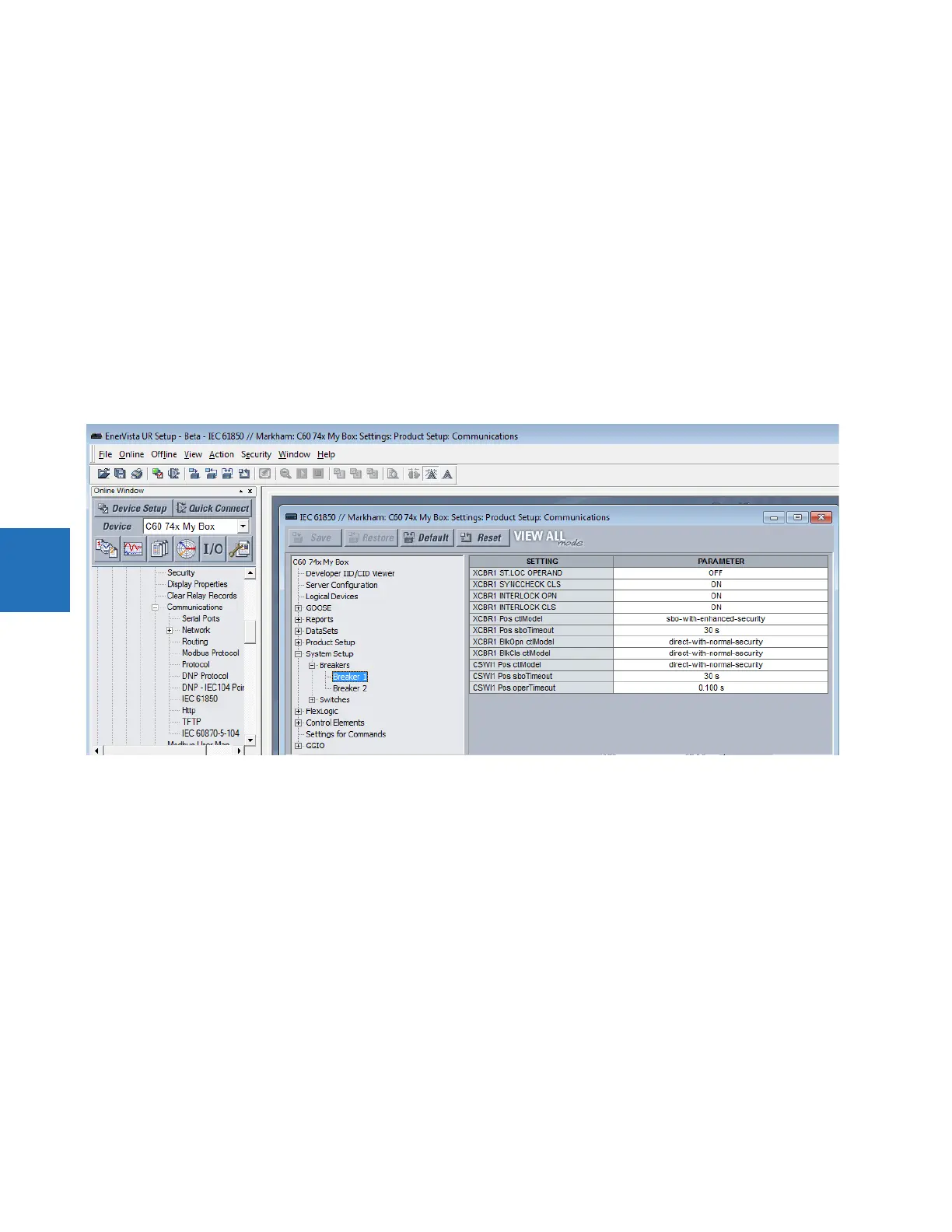

Figure 5-43: IEC 61850 protocol panel in EnerVista software
The IEC 61850 window is divided into a navigation pane on the left and a settings panel on the right. You expand and click
an option on the left to display its panel on the right. The following figure shows an example for Server Configuration. The
SETTING column contains the names of the settings, and the PARAMETER column is used to enter the settings. Hovering
the mouse over a setting name displays a tool-tip showing the 61850 information model name of the setting or its location
in SCL files.
