CHAPTER 10: MAINTENANCE REPLACE FRONT PANEL
F35 MULTIPLE FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 10-17
10

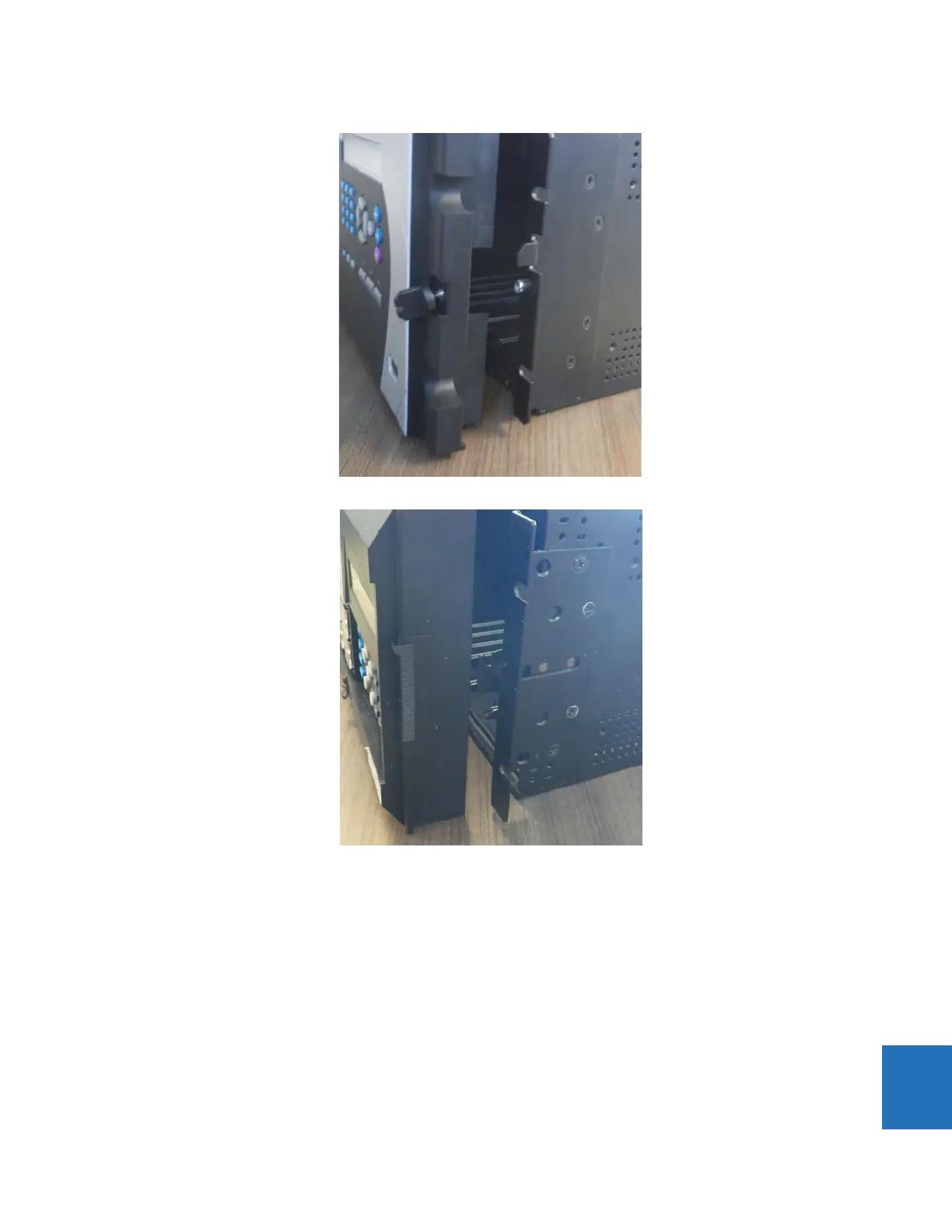

Figure 10-14: Remove enhanced front panel mounting bracket on right side
Figure 10-15: Remove standard front panel mounting bracket on right side
5. Open the front panel. Unplug or unscrew the grey ground cable from the front panel. Unplug the RJ45 connector from
the CPU module in the second slot on the left.
