GEK-106310AE F650 Digital Bay Controller 3-65
3 HUMAN INTERFACES. SETTINGS & ACTUAL VALUES 3.2 HUMAN MACHINE INTERFACE (HMI)
3
3.2.6.11 SELECT MAIN SCREEN
The relay display offers the possibility to select the default main screen. For this purpose, the user must access the "Select
Main Screen" menu through the HMI. This menu includes the following options:
Logotype
This option selects as main screen the relay logotype including the firmware and boot code versions, the relay model and
the communication parameters for local port COM2.

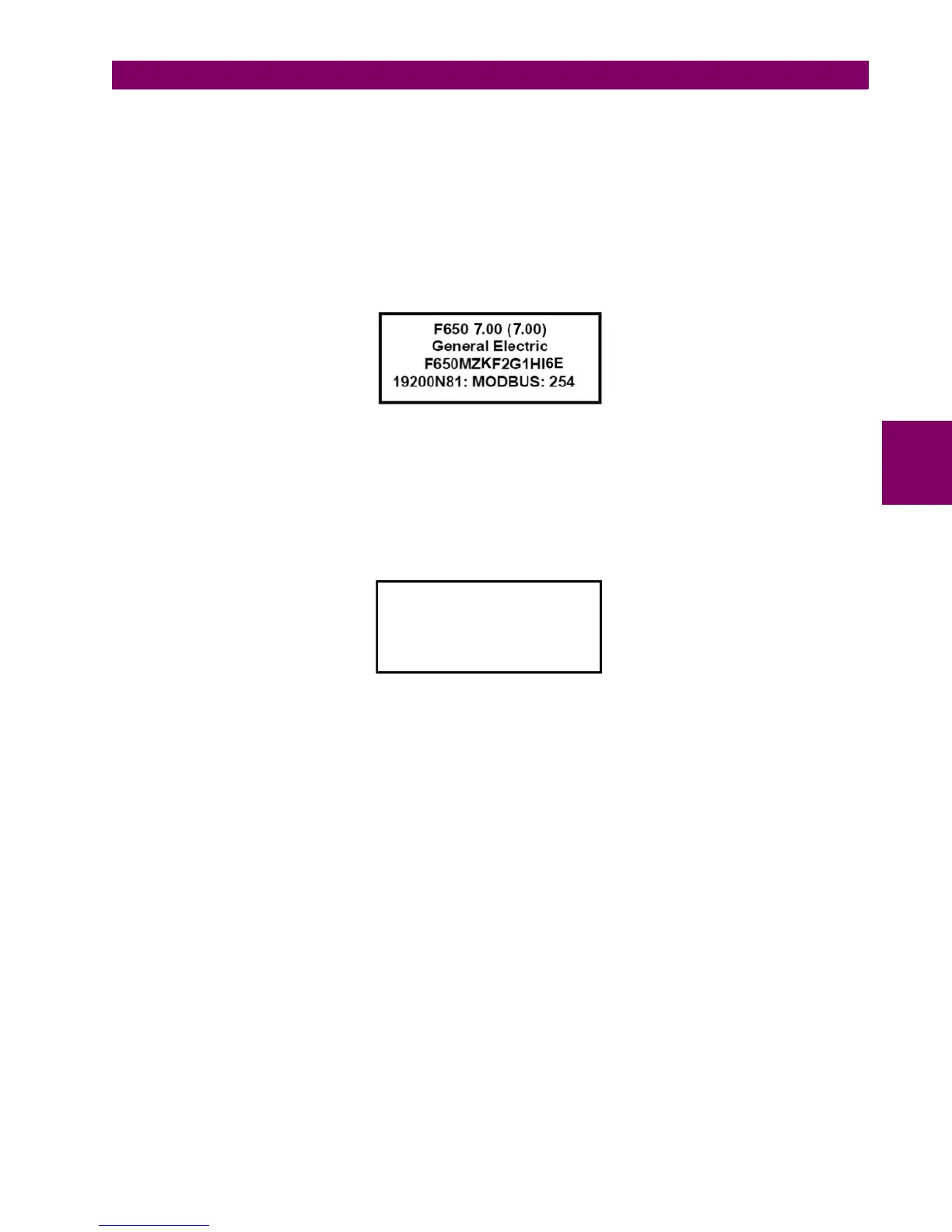

Figure 3–30: DEFAULT LOGOTYPE SCREEN
Metering
This option shows a Metering screen including the phase and ground currents as well as phase-to-phase voltage, and zero
sequence voltage values, all of them in primary values.
Figure 3–31: DEFAULT METERING SCREEN
All
This option alternates in time the two previous options.
Ia 0.000 Vab 0.000
Ib 0.000 Vbc 0.000
Ic 0.000 Vca 0.000
Ig 0.000 V0 0.000
