1-14 F650 Digital Bay Controller GEK-113000AE
1.3 ENERVISTA 650 SETUP SOFTWARE 1 GETTING STARTED
1
1.3ENERVISTA 650 SETUP SOFTWARE 1.3.1 SYSTEM REQUIREMENTS
The relay front panel or the EnerVista 650 Setup software can be used to communicate with the relay. The software
interface is the preferred method to edit settings and view actual values because the computer monitor can display more
information.
The minimum system requirements for the EnerVista 650 Setup software are as follows:
Pentium® 4 (Core Duo recommended).
Windows® XP with Service Pack 2 (Service Pack 3 recommended), Windows 7, or Windows Server 2008 Release 2
64-bit.
1 GB of RAM (2 GB recommended).
500 MB free hard drive space (1 GB recommended).
1024 x 768 display (1280 x 800 recommended).
RS232C and USB serial and/or Ethernet port for communications to the relay.
1.3.2 INSTALLATION
After ensuring the minimum requirements for using EnerVista 650 Setup are met (see previous section), install the software
from the GE EnerVista DVD. Or download the 650 EnerVista software from http://www.gegridsolutions.com/multilin/ and
install it.
1. Insert the GE EnerVista DVD into the DVD drive of your computer.
2. Click the Install Now button and follow the installation instructions to install the no-charge EnerVista software.
3. When installation is complete, start the EnerVista Launchpad application.
4. Click the IED Setup section of the Launch Pad window.

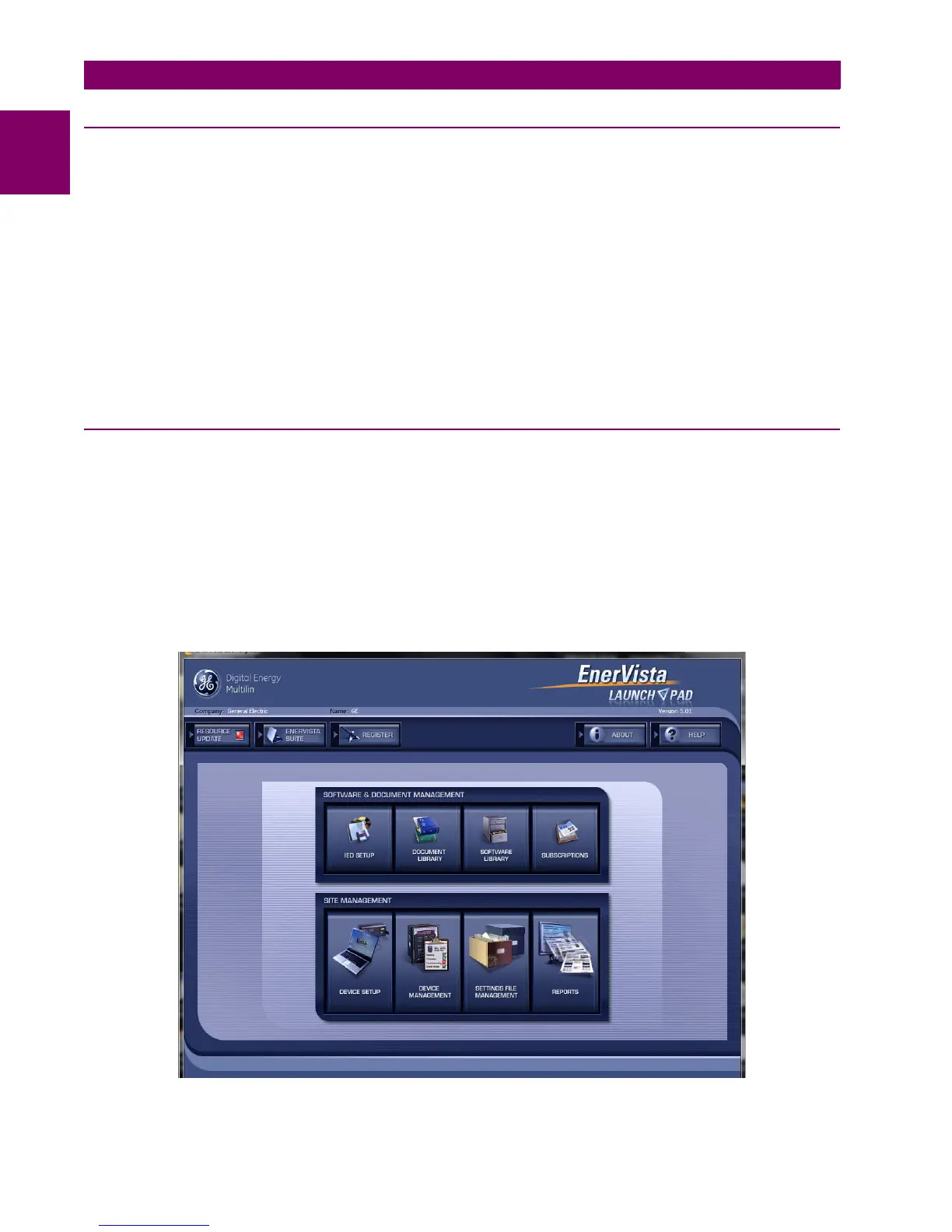

Figure 1–8: LAUNCHPAD WINDOW
