GEK-113000AE F650 Digital Bay Controller 5-11
5 BOOTCODE AND FIRMWARE UPGRADE 5.1 UPGRADE FROM VERSION BELOW V7.00.
5
5.1.3 FIRMWARE VERSION UPGRADE
5.1.3.1 INTRODUCTION
1. The relay settings and configuration will be lost, so it is advisable to save them to a file.
2. 2. For firmware revisions lower than 1.50, it is required to save calibration settings in a file before upgrading the F650
to a new firmware version.
3. 3. For firmware revision higher than 1.50 and only if just firmware upgrading (not bootware upgrade), it is not
necessary to save the calibration files since they will not be modified.
4. 4. Special care when boot code has been previously upgraded: all the data (including calibration settings) is lost.
5. 5. In case of error during the firmware upgrading process, the user could repeat the whole process as many times as
necessary, this is possible thanks to an independent boot memory (bootcode).
6. 6. Pure firmware upgrading process should be done using the EnerVista 650 Setup software and Ethernet connection
(Port ETH_1 or ETH2) via Cross-Over RJ45 Ethernet cable.
Note: Please take into account that downgrading firmware version could cause error in measurements.
5.1.3.2 FIRMWARE UPGRADE
1. Once the communication with the relay through Ethernet connection has been verified, enter the EnerVista 650 Setup
program, select Communication and the Upgrade Relay option on the top menu bar.

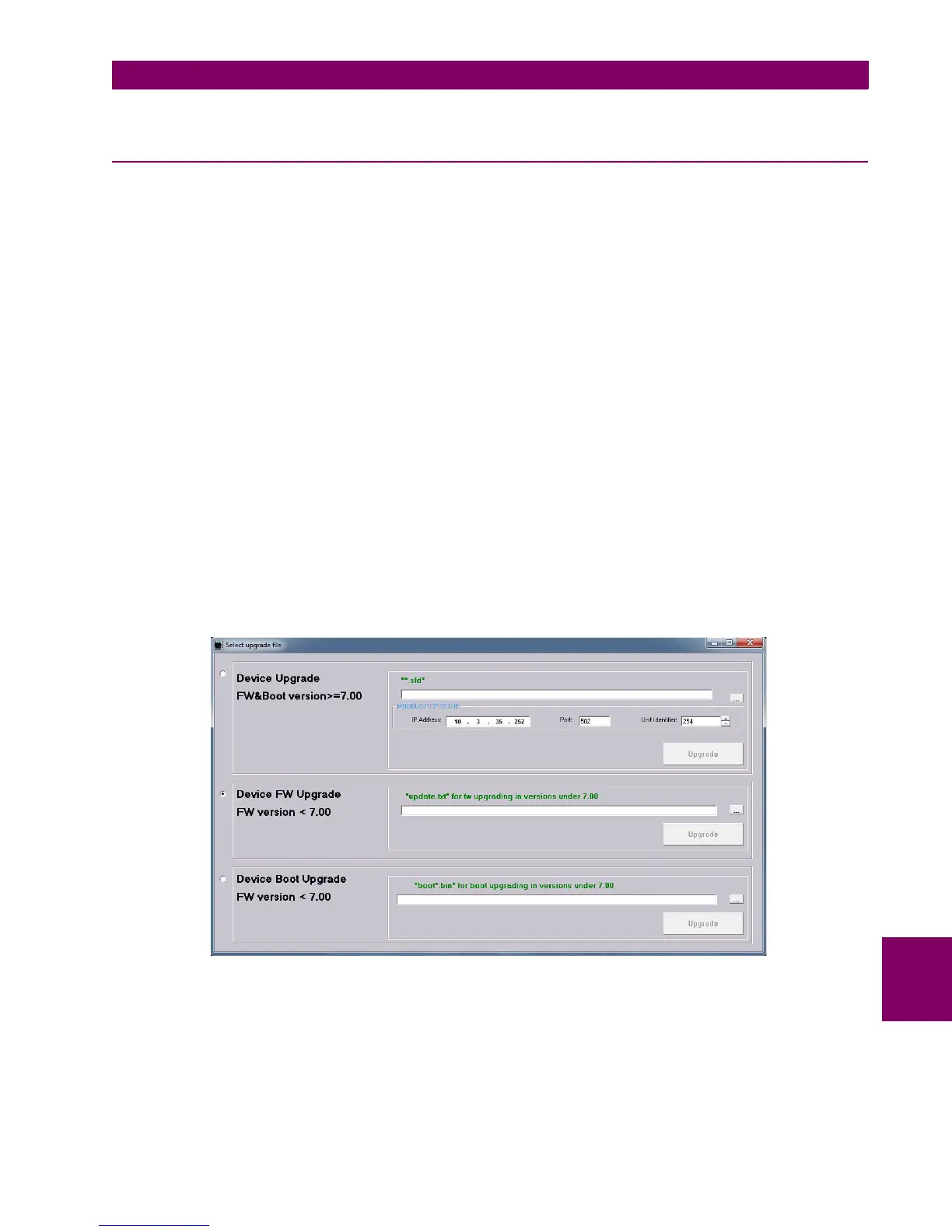

Figure 5–21: UPGRADE DEVICE
