GE GFDR485EF - Button Tree Servicing

21

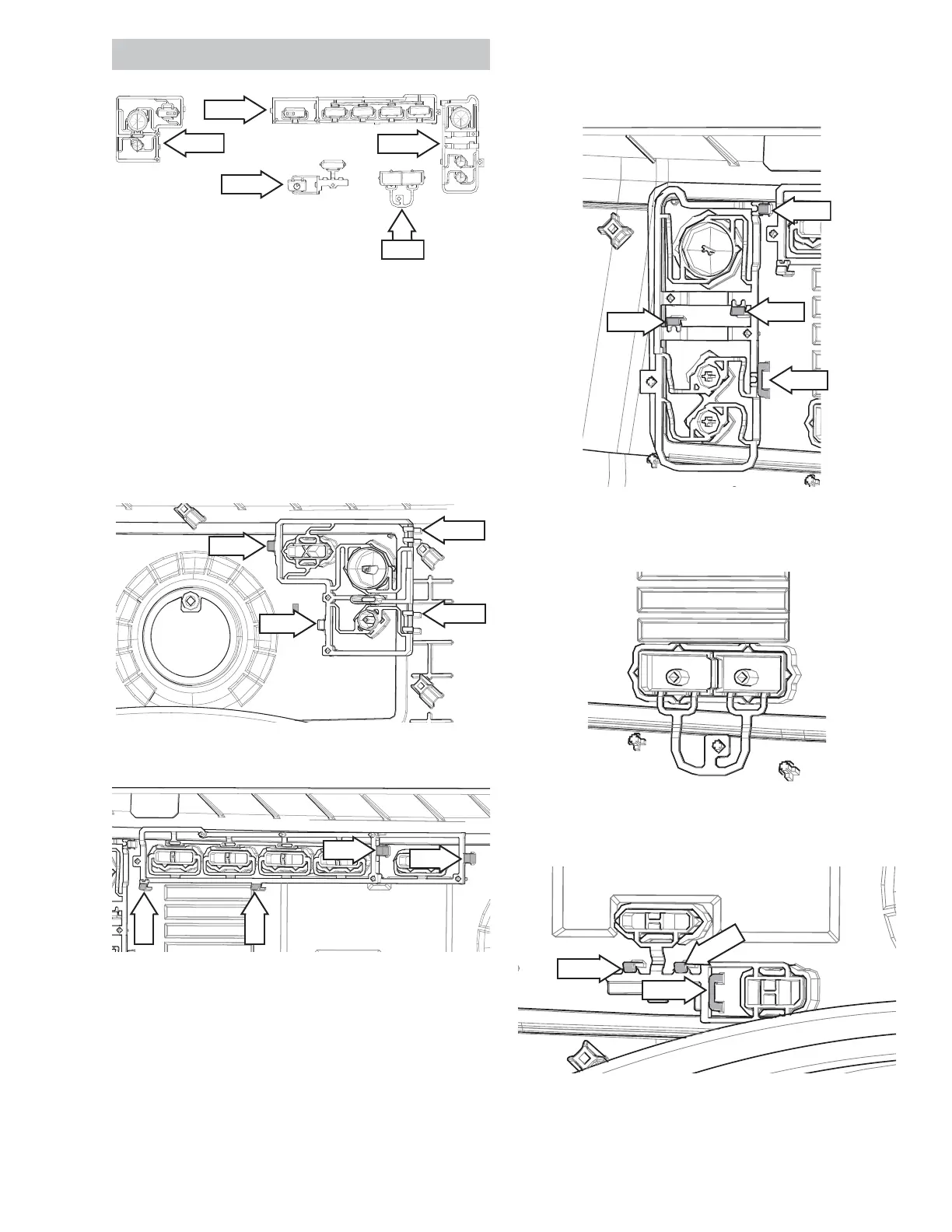

But t on Tree
But t on Tr ee Rem oval
1. Remove the control panel.
2. Remove the main control board.
3. Remove the button trees by releasing the clips
as shown below.
But t on Tr ee (A)
But t on Tr ee (B)
But t on Tr ee (C)
But t on Tr ee (D)
No Clips - Lift to remove.
But t on Tr ee (E)
Tree (A)
Tree (B)
Tree (C)
Tree (E)
Tree (D)
See Co n t r o l Pa n e l Rem o v a l o n p a g e 2 0 .
See M a i n Co n t r o l Bo a r d Re m o v a l o n p a g e 2 3.
Clip
Clip
Hook
Hook
Clip
Clip
Clip Clip
Clip
Clip
Clip
Clip
Clip
Clip
Clip
