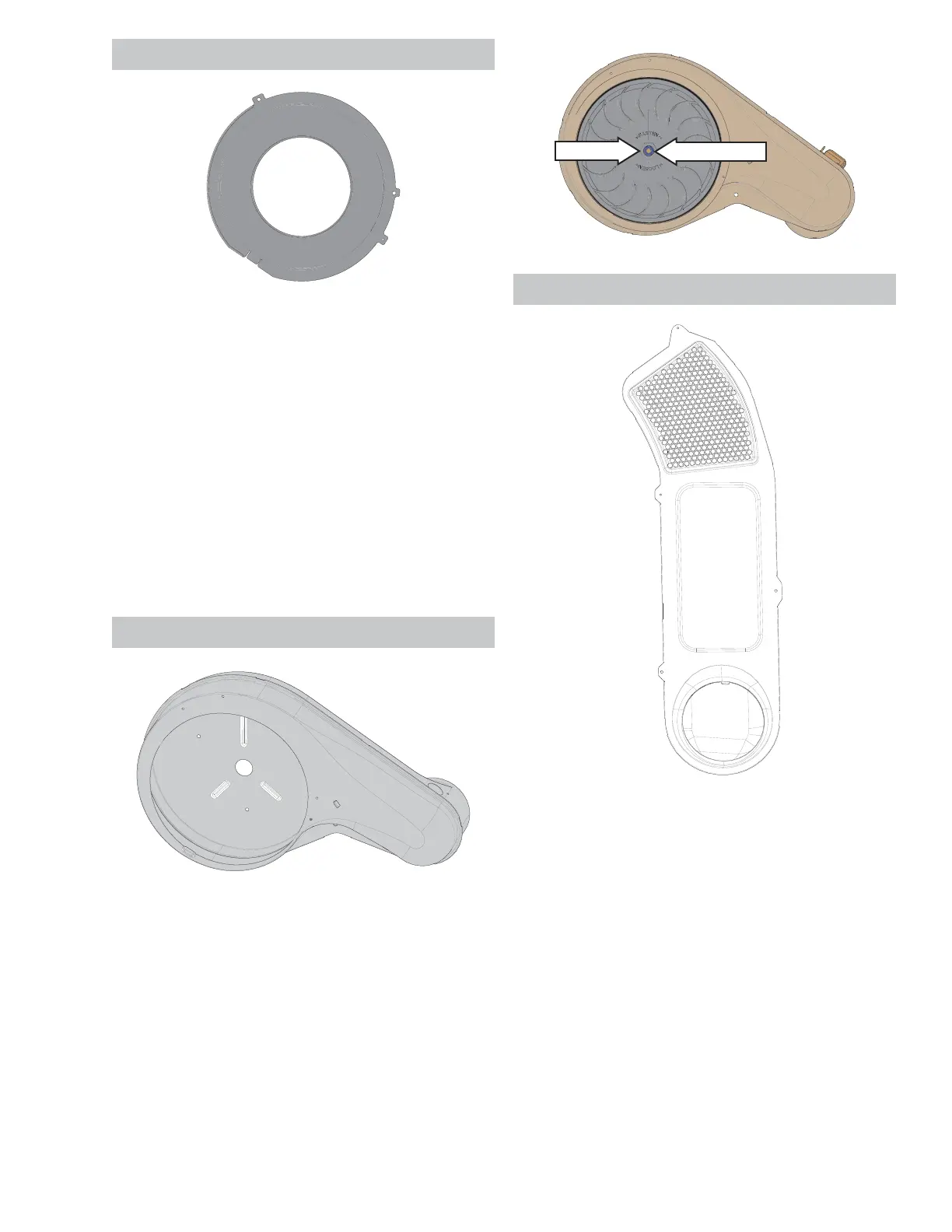

GE GFDR485EF - Inlet Ring, Fan Housing, and Rear Duct Removal

39
Inlet Ring
Inlet Ring Removal
1. Disconnect power from the unit .
2. Remove the control panel.
3. Remove the front panel.
4. Remove the trap duct .
5. Remove the three 1/4 in. hex screws that secure
the inlet ring to the trap duct.
6. Pull the upper right side of the ring slightly for-
ward, then upward to disengage the ring from
the tab.
Fan Housi n g
Blower Housi ng Removal
1. Disconnect power from the unit .
2. Remove the control panel.
3. Remove the front panel.
4. Remove the trap duct .
5. Remove the inlet ring.
6. Remove the reverse thread blower wheel back-
up nut .
7. Unscrew the reverse thread blower wheel.
14 mm
Back-up Nut
Rear Duct
Re a r Du c t Re m o v a l
1. Disconnect power and water from the unit .
2. Remove the control panel.
3. Remove the top panel.
4. Remove the rear panel.
5. Remove the two #2 Phillips screws on the front
side of the drum support that attach the rear
duct to the rear drum support .
See Co n t r o l Pa n e l Rem o v a l o n p a g e 2 0 .
See Fr o n t Pa n e l Re m o v a l o n p a g e 2 4 .
See Tr a p D u c t Rem o v a l o n p a g e 38 .
See Co n t r o l Pa n e l Rem o v a l o n p a g e 2 0 .
See Fr o n t Pa n e l Re m o v a l o n p a g e 2 4 .
See Tr a p D u c t Rem o v a l o n p a g e 38 .
See I n l e t Ri n g Rem o v a l o n p a g e 3 9 .
See Co n t r o l Pa n e l Rem o v a l o n p a g e 2 0 .
See To p Pa n el Rem o v a l o n p a g e 24 .
See Re a r Pa n el Rem o v a l o n p a g e 26 .
