GE GFDR485EF - Door Cover; Door Cover Removal; Door Handle; Door Handle Removal

32

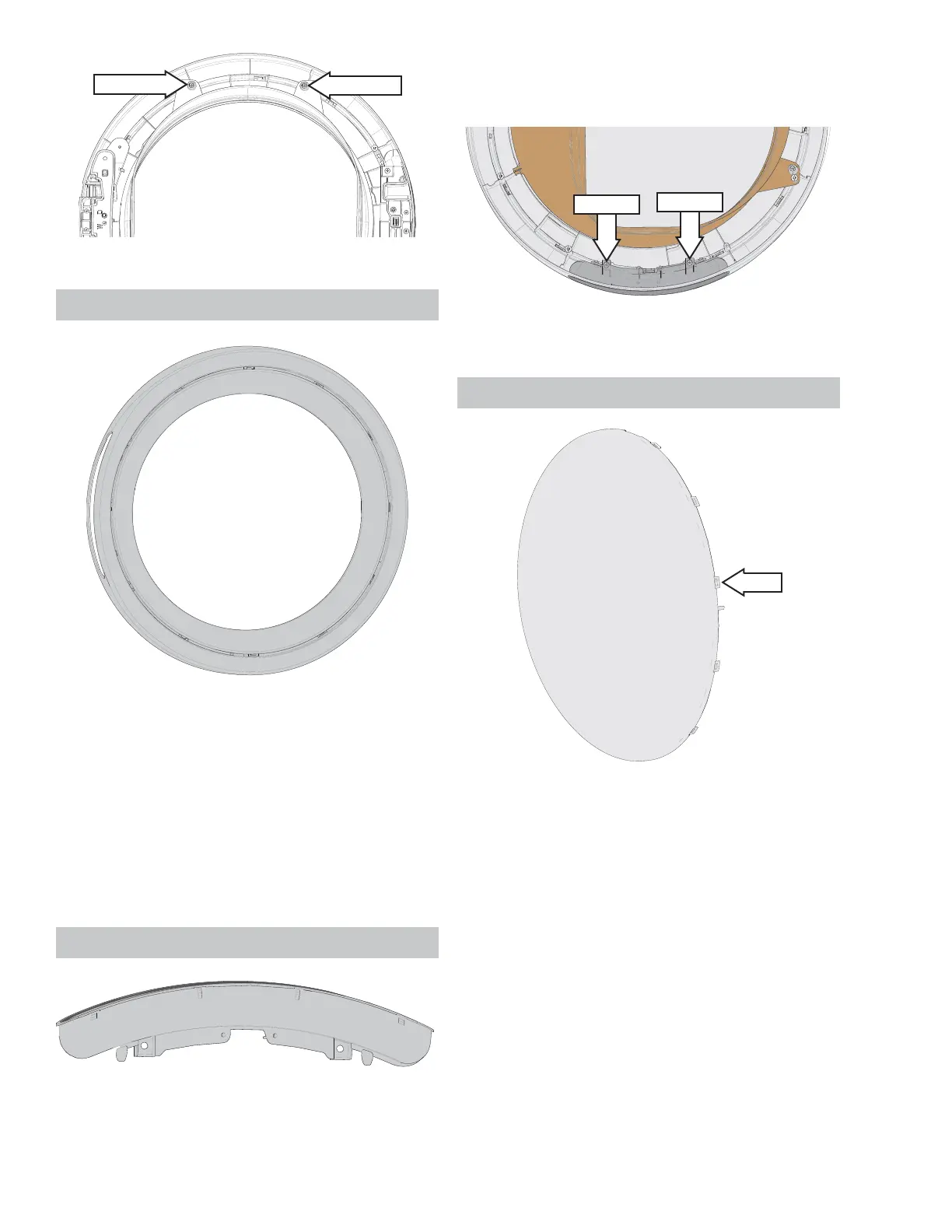

Door Cover
Door Cover Removal
1. Remove the door.
2. Remove the door frame.
3. If replacing the door cover, the door
mask and door handle must be removed.
Door Handle
Door Handle Removal
1. Remove the door.
2. Remove the door frame.
3. Remove the two 1/4 in. hex door handle screws.
1/4" hex
1/4" hex
4. Carefully push down the handle out of the door
cover.
Door Cover Prot ect
Clips
Door Cover Prot ect Removal
1. Remove the door.
2. Remove the door frame.
3. Unclip all the mounting clips around the perim-
eter of the door cover
1/4" hex
1/4" hex
See D o o r Co v e r Lo c a t i o n o n p a g e 28 .
See D o o r Rem o v a l o n p a g e 2 8 .
See D o o r Fr a m e Rem o v a l o n p a g e 30 .
See D o o r Ma s k Rem o v a l o n p a g e 3 1.
See D o o r Ha n d l e Re m o v a l o n p a g e 3 2.
See D o o r Fr a m e Rem o v a l o n p a g e 30 .
See D o o r Co v e r Pr o t e c t L o c a t i o n o n p a g e 28 .
See D o o r Rem o v a l o n p a g e 2 8 .
See D o o r Fr a m e Rem o v a l o n p a g e 30 .
See D o o r Rem o v a l o n p a g e 2 8 .
