Door Components
Door Assembly
Door Removal
1. Open the door so that it is fully open.
2. Remove the two T-25 door mounting screws.
3. Lift the door slightly and unhook it from the front
panel.
Door Swing Reversal
1. Relocate the door striker and front panel plugs.
A. Remove the door as described above, and
SODFHLWIDFHGRZQRQDVRIWDQGÀDWVXUIDFH
B. Remove the T- 25 screw from each of t he front
panel plugs and reinstall the plugs and screws
on the opposite side of the door opening.
C. Rem o ve t h e t w o # 2 Ph i l l ip s d o o r st r i ker
screws and remove t he door striker.
D. Rot at e t he door st riker 180 degrees and
reinstall the door striker and screws on the
opposite side of the door opening.
2. Disassemble the door assembly.
A. 3ODFHWKHGRRURQDVRIWDQGÀDWVXUIDFHZLWK
the door frame facing upward.
B. Remove only t he t en long #2 Phillips screw s
from the perimeter of the door frame.
NOTE7KHUHDUHWZRGLȺHUHQWVFUHZOHQJWKVWKDW
are used on the door frame. The screws must be
put back in their proper positions to avoid damag-
ing the door assembly.

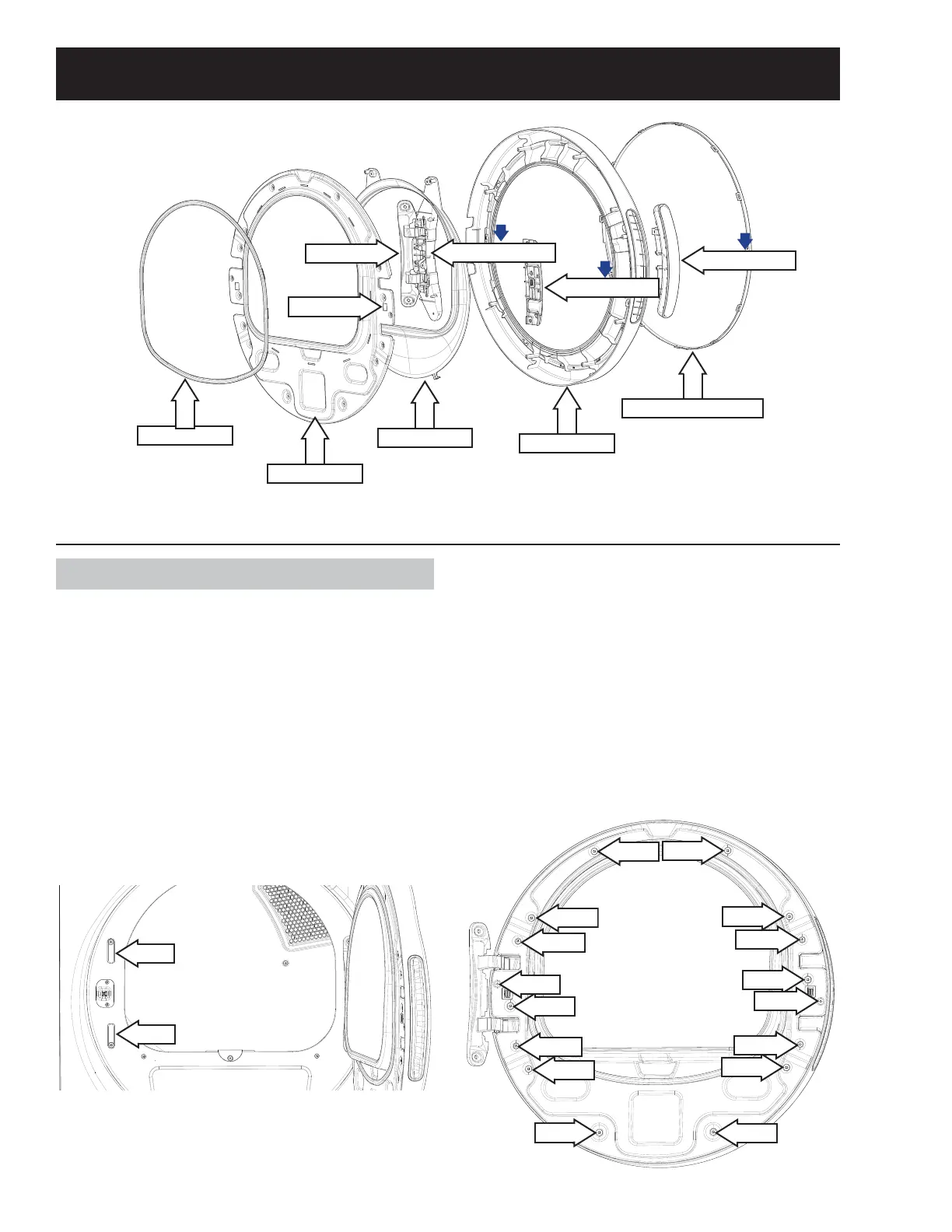

Th e d oo r i s ava il a bl e a s a co m pl et e a ssem b l y, or c om p on en t s m a y b e r ep la ced i nd i vi du a ll y.
Door Hinge
Door Spacer
Door Seal
Door Frame
Door Mask
Door Cover
Door Cover Protect
Door Handle
Door Hinge
Door Latch
Plug
Plug
Short
Long
Long
Long
Long
Long
Long
Long
Long
Long
Long
Short
Short
Short
Short
Short
