Chapter 5 Calibration Page 113
responsible for providing evidence of PACS monitor calibration.
2. At the application desktop, press IMAGE TOOLS
.
3. Click SMPTE
to load the SMPTE pattern into the Patient List.
4. Send the SMPTE pattern to the PACS review workstation
5. Verify that 5% and 95% squares are equally visible on PACS (Figure 5-2).

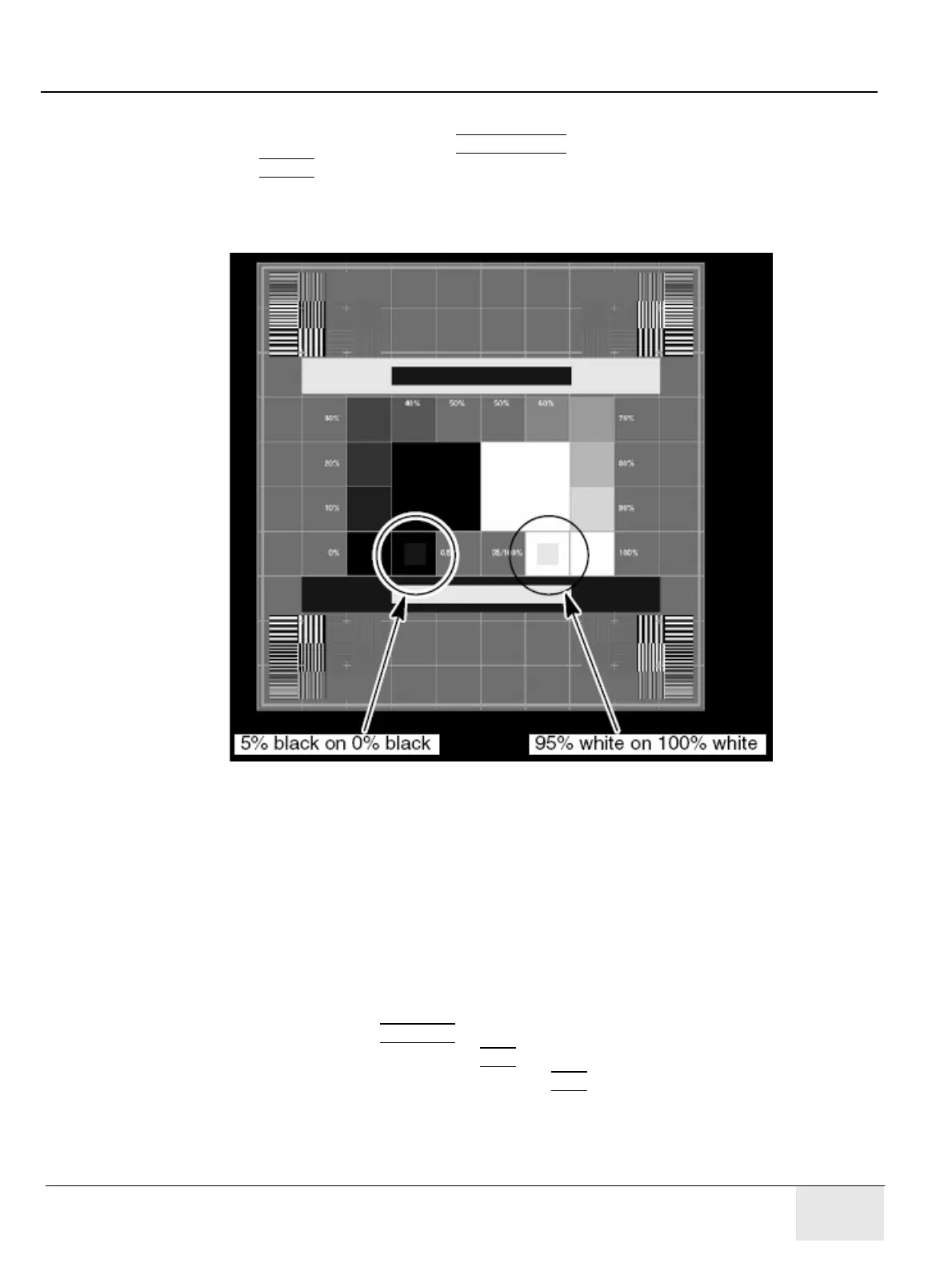

Figure 5-2 SMPTE pattern
5.4.2.2 Loading test images
1. Load the PACS test images onto the acquisition workstation. Use either:
- A DICOM-formatted CD-ROM with images.
- Images that are stored on the system in Image Tools.
2. Verify that the patient name is GE_DX_Image_Display_Test, GEHC and the patient ID is
2000002.
5.4.2.3 Sending no-burn images to the PACS
1. In the SUIF, press the UTILITIES tab button.
2. Next to Network Connections, press EDIT
.
3. Select the appropriate network host and press EDIT
.
4. On the Preferences tab, verify that the following parameter is NOT checked:
Apply Burn-on-Send to images when sending to this network host.
5. In the Images list, highlight PACS Test Image #1.
