GE HEALTHCARE OPTIMA XR200AMX/XR220AMX
D
IRECTION 5336113-1EN, REVISION 10 INSTALLATION MANUAL
Chapter 4 Configuration Page 89

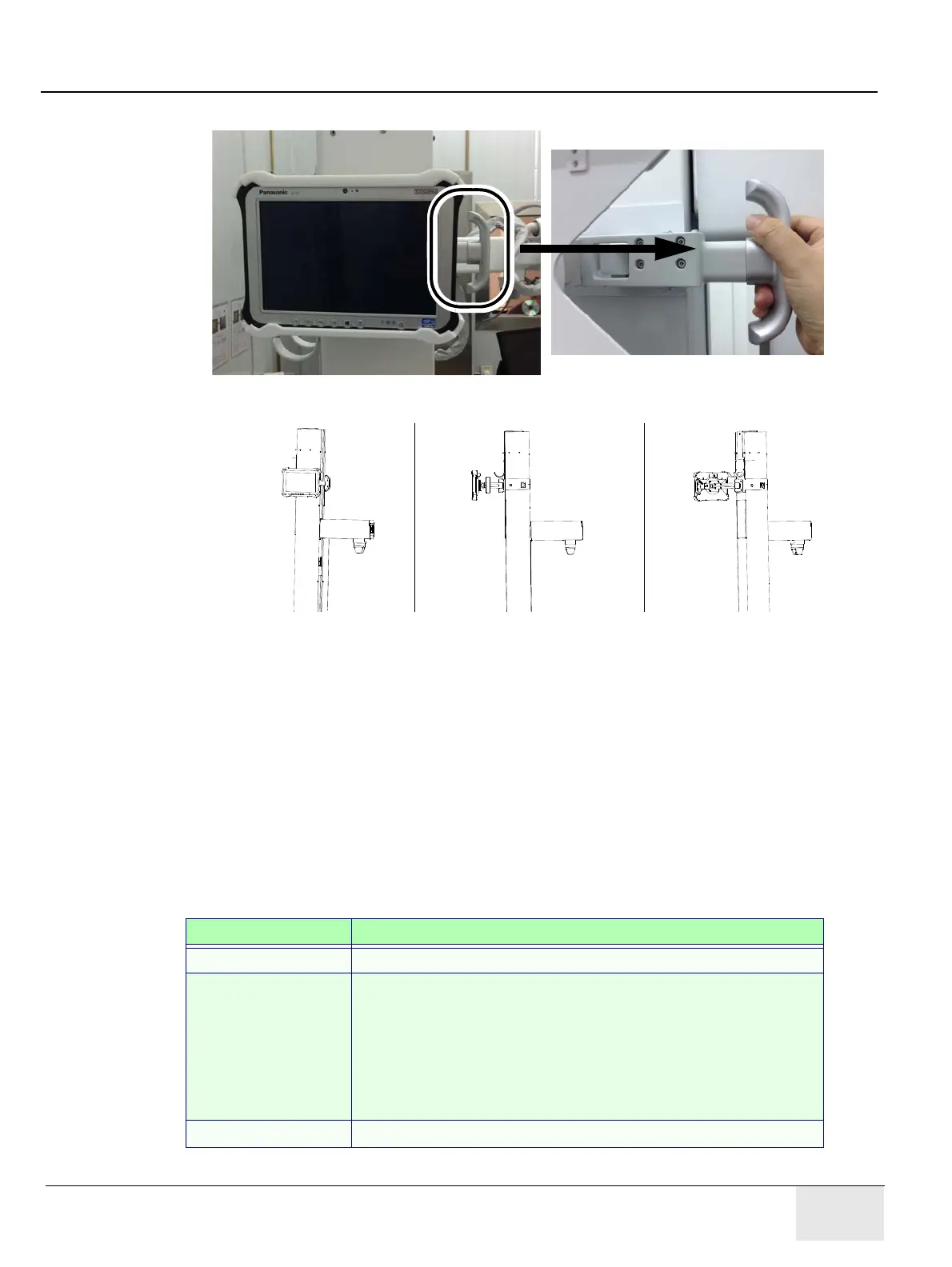

d. Rotate the tablet holder arm around the column from 0° to 180°.
10. Hand over the keys to site administrator.
4.10.5 Installing the wireless exposure handswitch
Contact a GE service representative to install the wireless handswitch.
Leave the wired handswitch on the system as a backup.
1. Remove both side covers and the top cover. See System manual 5336122-1EN, Chapter 8,
Section 8.1.2 - Top cover removal.
2. Identify the components of the kit shown below (Table 4-16, Figure 4-16, Figure 4-17):
Table 4-16 Wireless handswitch kit 5503600
Part Number Description
5503600: Wireless Handswitch kit, contains the following items:
5503601 Wireless Handswitch Collector (see Figure 4-16):
PCB Module (with cable)
Spare transmitter
Remote Finder/Transmitter
Cradle
Receiver (with cable)
5486733 Receiver Mount (see Figure 4-17)
To Next Page
