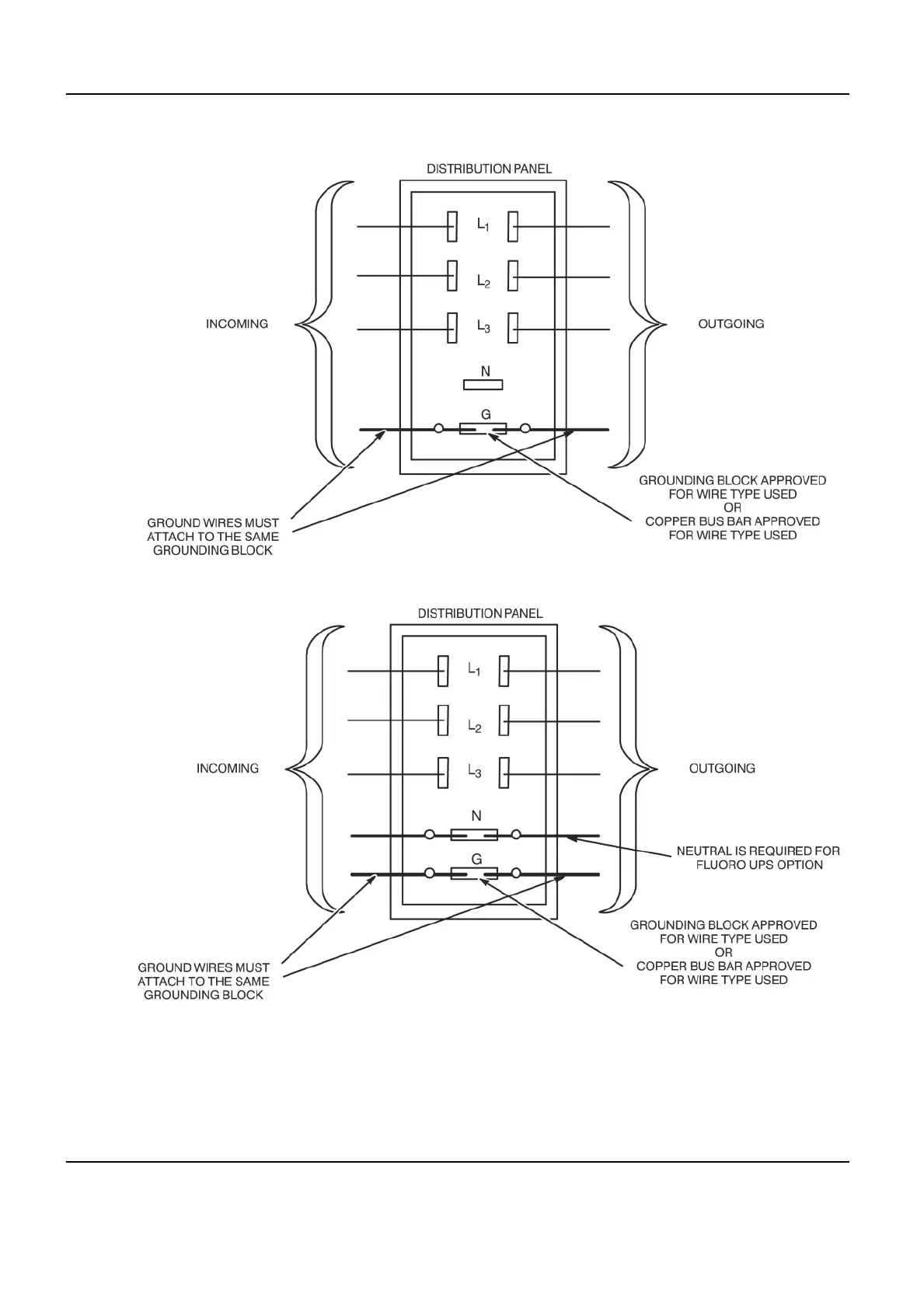

Illustration 6-35: Ground connection at distribution panel without Fluoro UPS option
Illustration 6-36: Ground connection at distribution panel with Fluoro UPS option
Innova 2100-IQ, 3100/3100-IQ, 4100/4100-IQ Cardiovascular Imaging System Pre-Installation Manual
GE Healthcare Direction 5160944-13-1EN, Revision 2
226 19 PIST0018 - System Facility Power
