3 Pre-Installation Process
Complete the checklists in
ROOM LAYOUTS
,
ELECTRICAL CONNECTIONS
, and
ADDITIONAL
PLANNING AIDS
of this manual. They represent an important part of the pre–installation process.
The checklists summarize the required preparations and allow to verify the proper completion of
the pre–installation procedures.

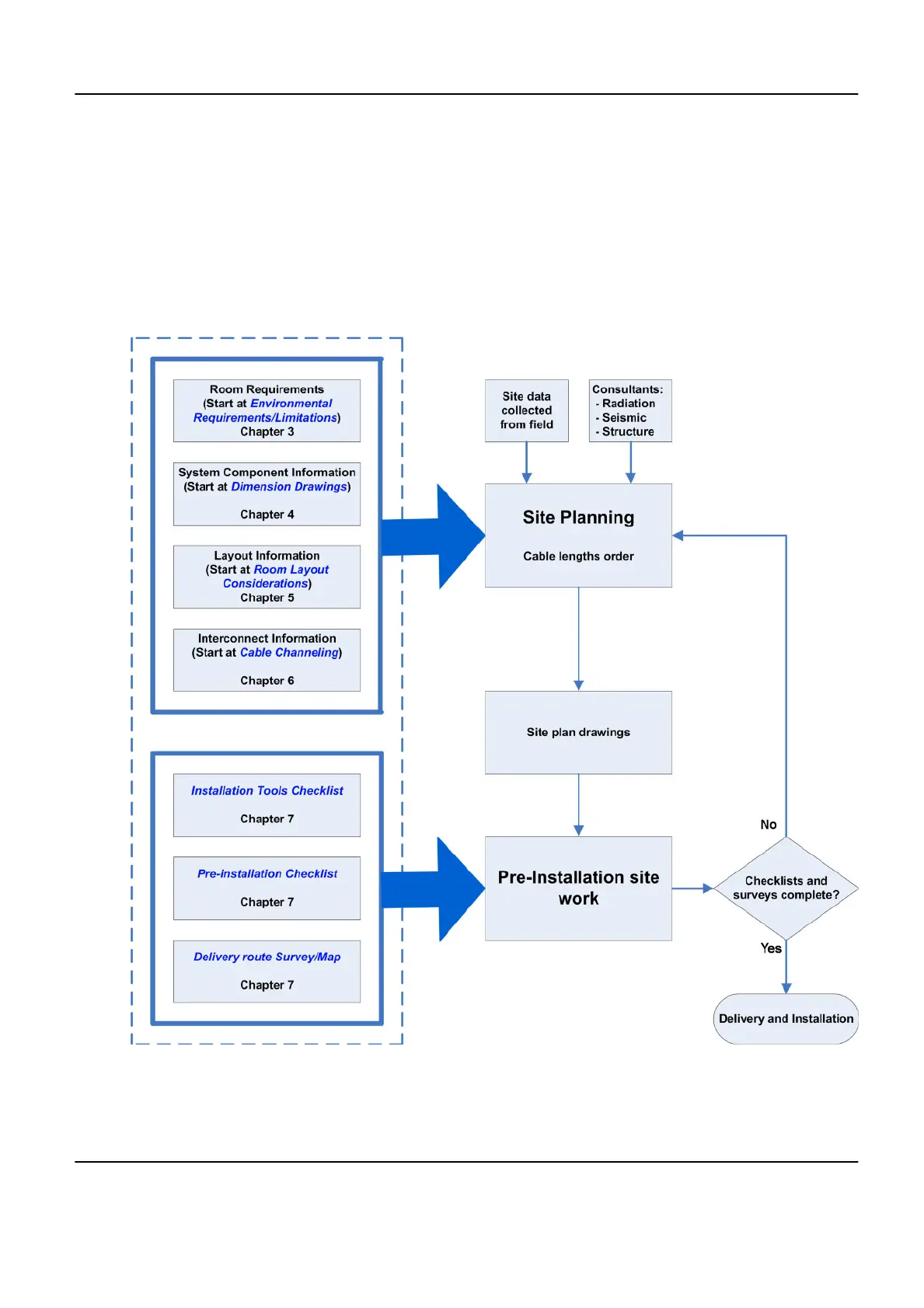

You will find hereafter a chart of the information flow in the pre-installation process.
Illustration 1-1:
Innova 2100-IQ, 3100/3100-IQ, 4100/4100-IQ Cardiovascular Imaging System Pre-Installation Manual
GE Healthcare Direction 5160944-13-1EN, Revision 2
Chapter 1 Introduction 27
