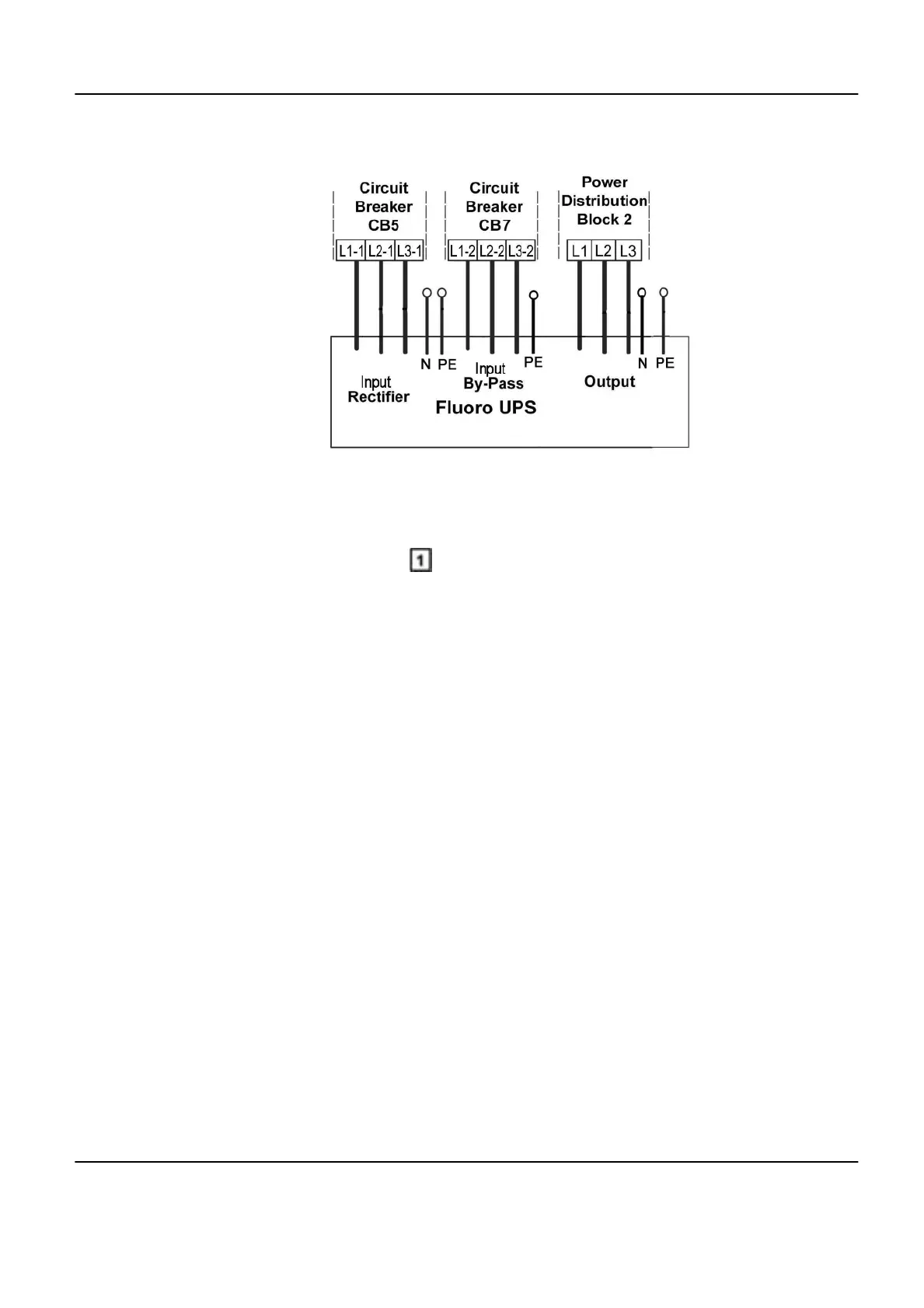

Illustration 6-41:
20.3.2 Connection of the Fluoro UPS Option Cables
1. Connect the Fluoro UPS power cables.
a.
Remove the protection panel
.
Innova 2100-IQ, 3100/3100-IQ, 4100/4100-IQ Cardiovascular Imaging System Pre-Installation Manual
GE Healthcare Direction 5160944-13-1EN, Revision 2
Chapter 6 Electrical Connections 231
