IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 3-10 - Printer Installation 3 - 61
3-10-2-2 UP-D25MD - Printer Settings
1.) Select Utility ->System ->Peripherals. Select the printer to adjust (UP-D25MD) from the pull-down
menu under Standard Printer Properties. Click Properties.
2.) Select Properties from Printer pull-down menu.
3.) Click Printing Preferences at the bottom of Properties Window.
4.) Select the Paper tab and select:
- Recommended Paper: UPC-24LA (large) / UPC-24SA (small)
NOTE: Paper UPC-21L and UPC-21S are also acceptable paper to use.
- Orientation: Landscape (recommended when using large paper size)
- High Speed (check mark on)

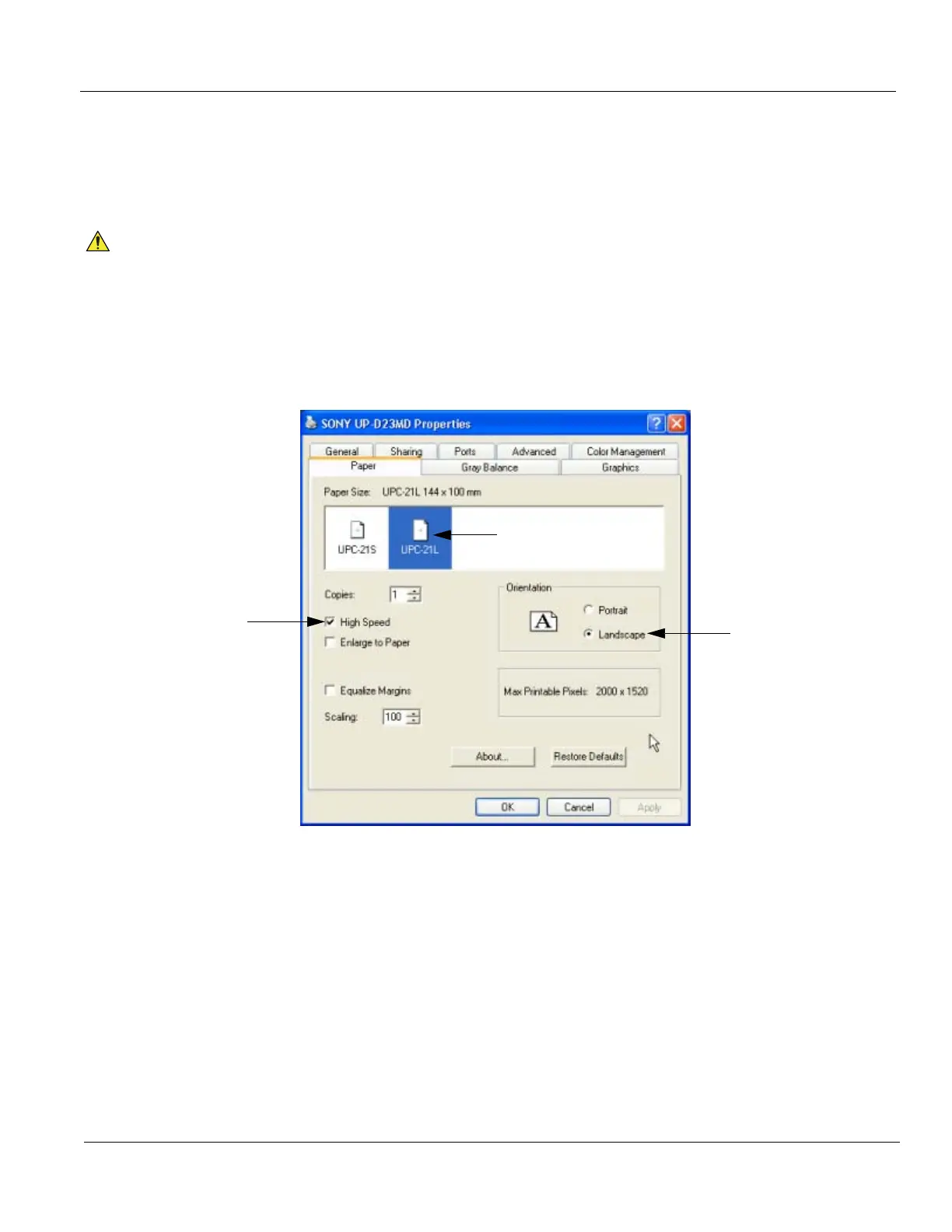

Figure 3-42 Paper page
NOTICE
!! NOTICE:
Settings for Paper Size MUST match with the used Paper (large/small) and also the right color ink
cartridge has to be used. Otherwise you will get an error message at printing.

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
