IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
3 - 62 Section 3-10 - Printer Installation
3-10-2-2 UP-D25MD - Printer Settings (cont’d)
5.) Select the Graphics tab. From the “Color Adjust” pop-up menu select:
a.) Color Balance: Cyan = 0; Magenta = 0; Yellow = 0
b.) Gamma Select: Gamma 1

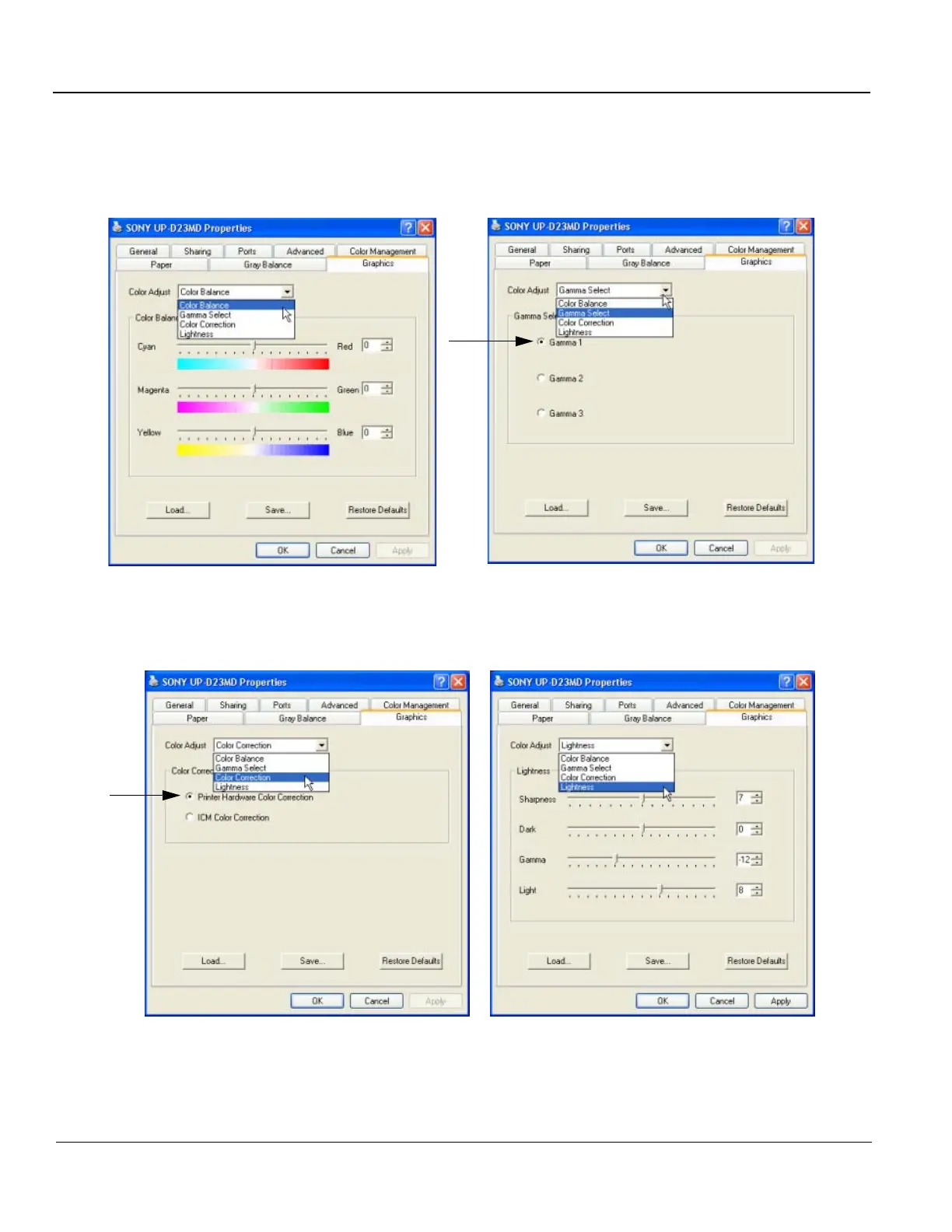

Figure 3-43 Graphics page (Color Balance + Gamma Select)
c.) Color Correction: set Printer Hardware Color Correction
d.) Lightness: Sharpness = 7; Dark = 0; Gamma = 14; Light = 0
Figure 3-44 Graphics page (Color Correction + Lightness)
