IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 4-3 - General procedures 4 - 7
4-3-5 Monitor Positions Adjustment
4-3-5-1 Monitor operating range
1.) Grab the monitor frame with both hand.
2.) Verify can be tilted and rotated.
.

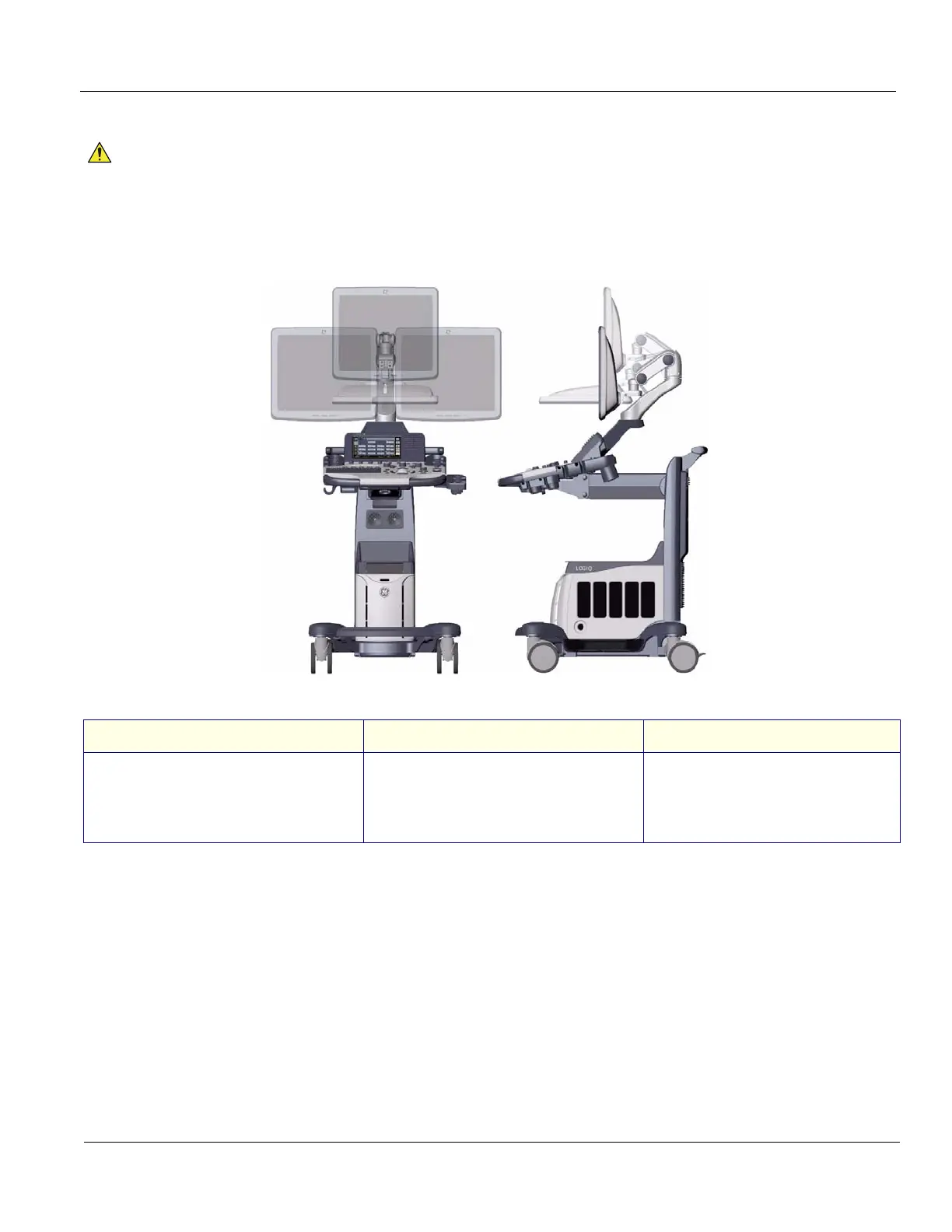

Figure 4-3
CAUTION
To avoid injury or damage, make sure nothing is within the range of motion before moving the
monitor and monitor arm. This includes both objects and people.
19” LCD Monitor 23” Wide Monitor 22” Wide Monitor
• Position up/down: +/- 7.5 cm
• Position left/right: +/- 18cm
• Rotation up/down: +90°/-15°
• Rotation left/right: +/- 90°
• Position up/down: +/- 6.6cm
• Position left/right: +/- 13.5cm
• Rotation up/down: +90°/-15°
• Rotation left/right: +/- 89°
• Position up/down: +/- 6.6cm
• Position left/right: +/- 15cm
• Rotation up/down: +90°/-15°
• Rotation left/right: +/- 89°

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
