GE LOGIQ S8 User Manual

GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
4 - 10 Section 4-3 - General procedures
4-3-6-2 To move the operator panel from side to side
NOTE: The operator panel can rotate approximately 15 degrees to each side.

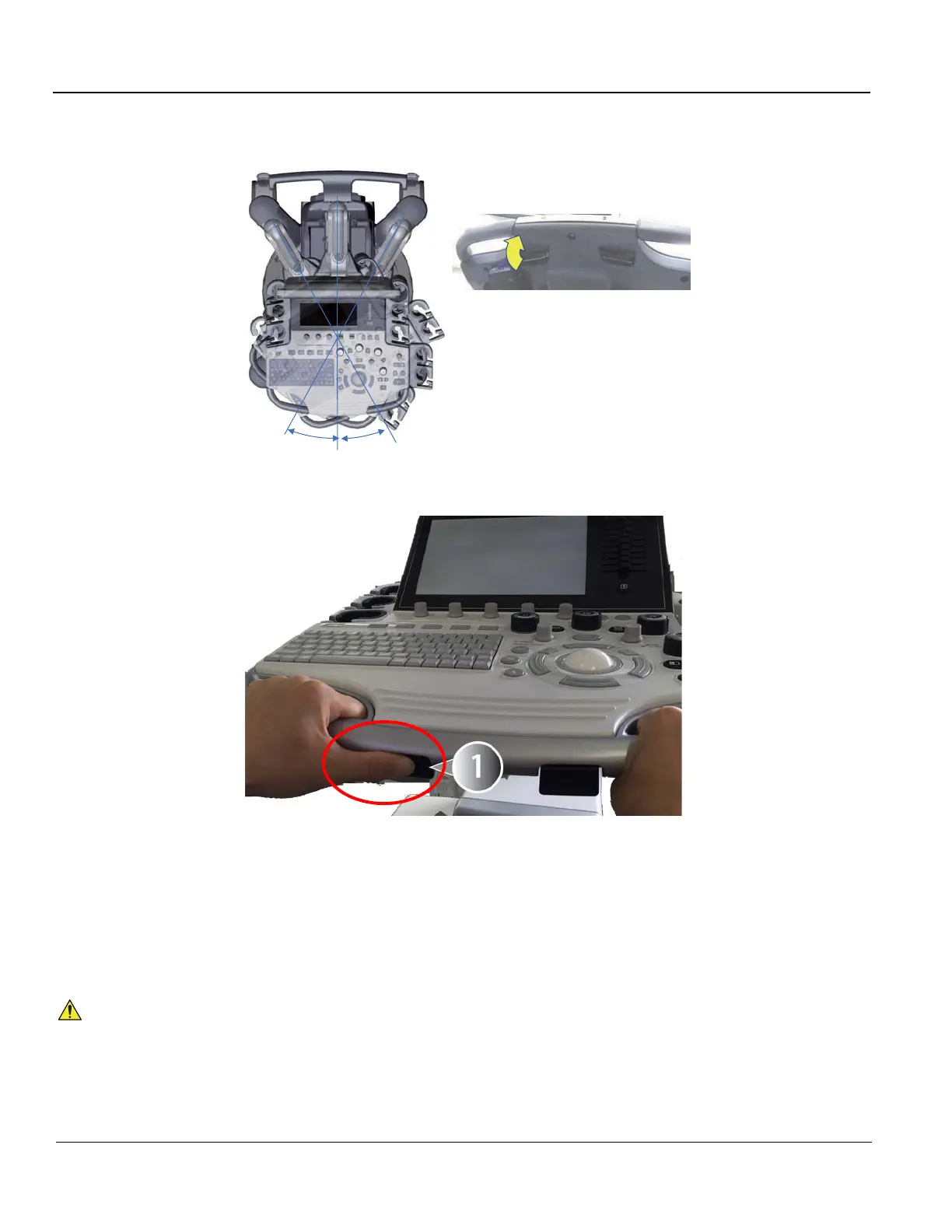

Figure 4-7 Swivel Lock Lever (R1 - R3 system)
Figure 4-8 Swivel Lock Lever (R4 system)
1.) Hold Swivel Lock lever under the operator panel.
2.) Rotate the operator panel (while holding lever).
3.) Verify the operator panel is free to rotate.
4.) Release the swivel lock lever (disengage).
5.) Verify the operator panel does not rotate.
NOTICE
!! NOTICE:
Do NOT attempt to apply excessive rotating force to the operator panel. The swivel brake is designed
to hold the operator panel in desired position during normal use, and not meant to completely fix the
the operator panel position.
Swivel

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
