5 - 22 Section 5-7 - Hardware Options.
5-7-1-3 FibroScan mounting position

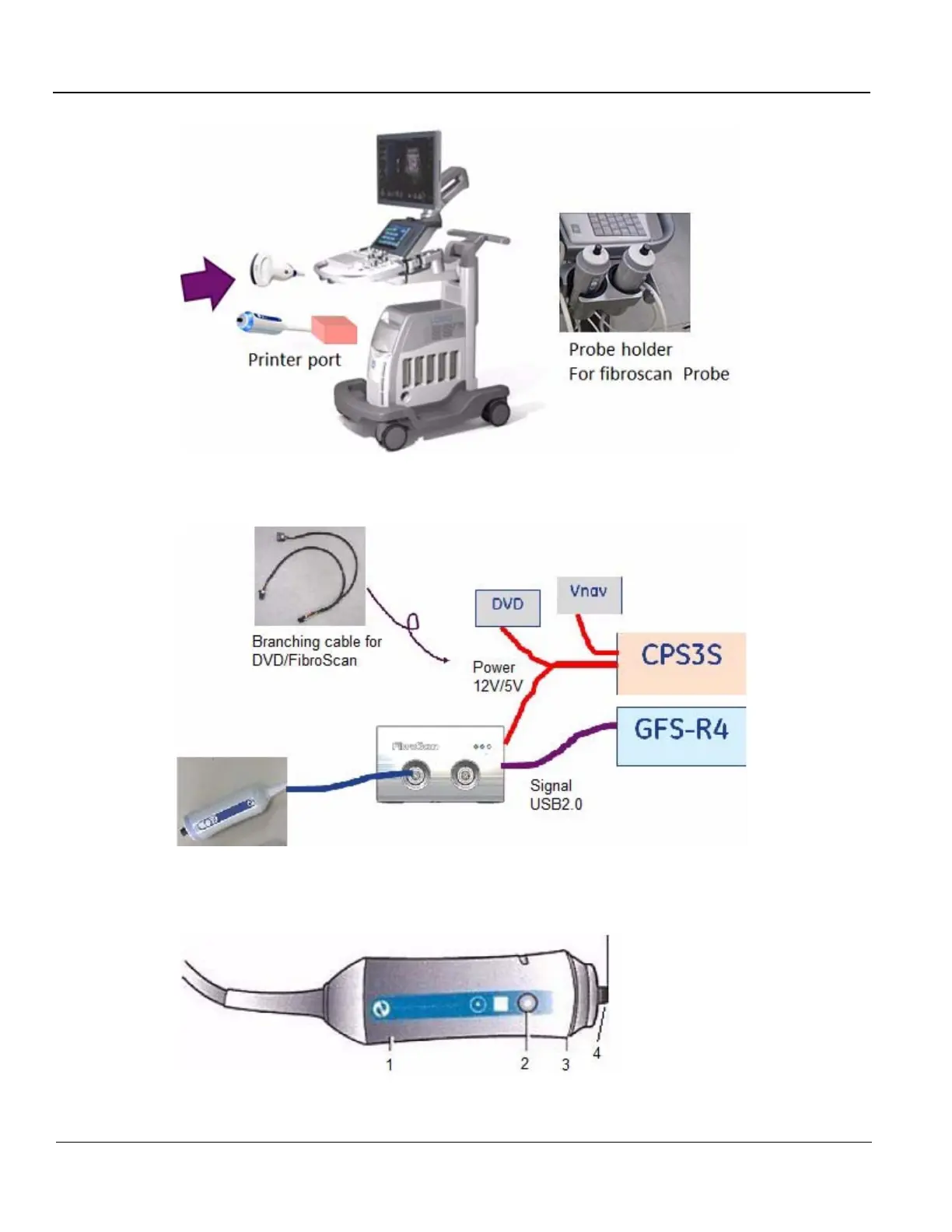

Figure 5-12 FibroScan mounting position
5-7-1-4 FibroScan Signal Connection
Figure 5-13 Signal Connection
5-7-1-5 FibroScan Probe
Figure 5-14 FibroScan Probe
1.Electrodynamic transducer
2.Measurement button
3.Indicator light (LED)
4.Ultrasonic transducer
