GE HEALTHCARE
DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
7 - 16 Section 7-3 - Gathering Troubleshooting Data (R1 to R4)
7-3-7 Capturing Network Logs with Network Sniffer (cont’d)
By IP and port: Select Capture filter.
4.) Select New.
5.) Edit name for example DICOM port 104.
6.) Enter the string with the following syntax: port xxx and host yy.yy.yy.yy, where xxx is the port
number of “My Computer” in the LOGIQ™ S8 and yy.yy.yy.yy is the IP address of the device under
test (PACS, server, etc.).
7.) Press OK.

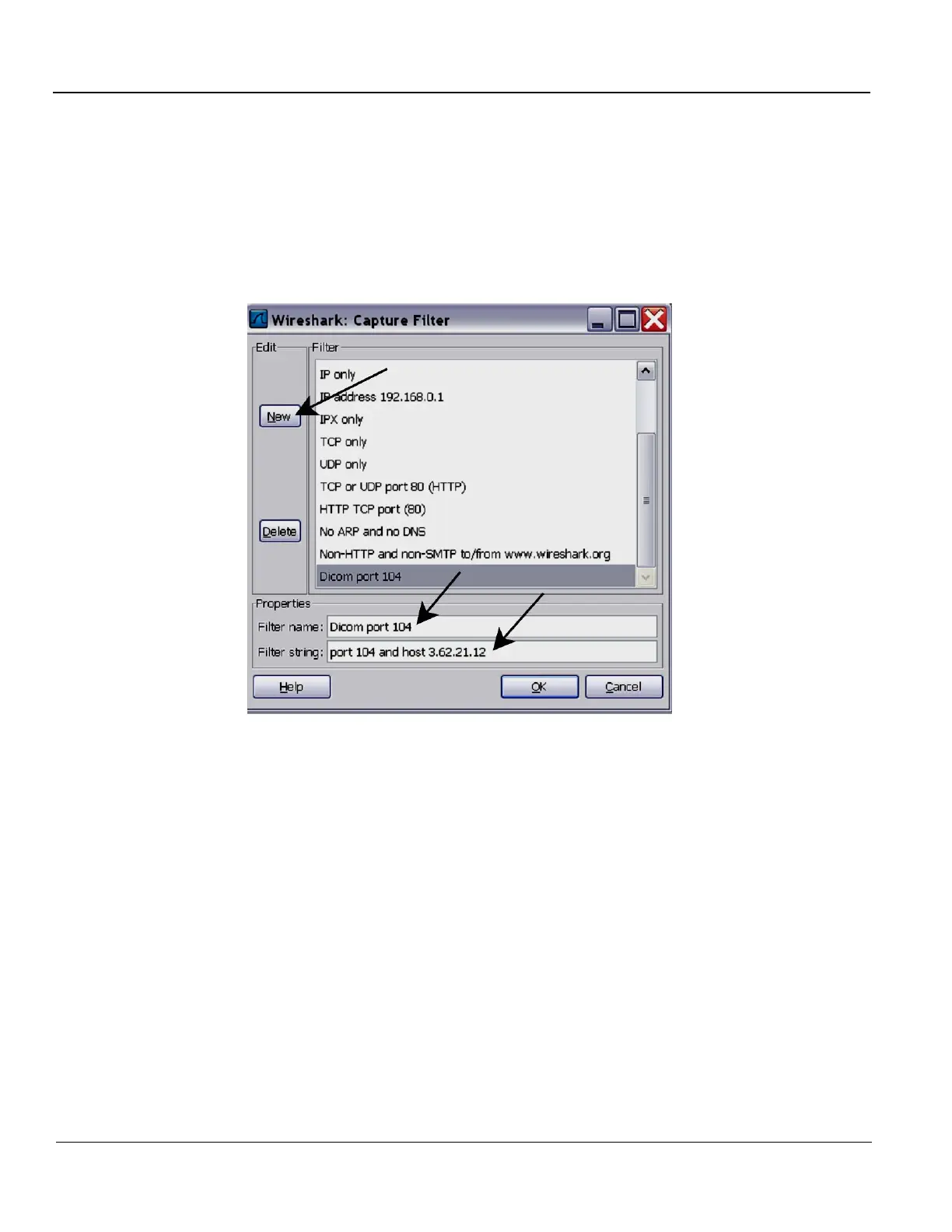

Figure 7-15 Sniffer Capture Filter IP and Port
8.) Select Start.
9.) Minimize network sniffer window and initiate communication to the DICOM device (e.g. send
images to the storage device or query Worklist).
