DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
7 - 18 Section 7-3 - Gathering Troubleshooting Data (R1 to R4)
7-3-7 Capturing Network Logs with Network Sniffer (cont’d)
In addition to the pre capture filter, use the Filter tool on the screen to filter what is displayed.
Filter the DICOM packets, since they are the most probable for the troubleshooting.
11.) Type “dcm” and press Apply. The display should filter all DICOM packets, filtering out image data.

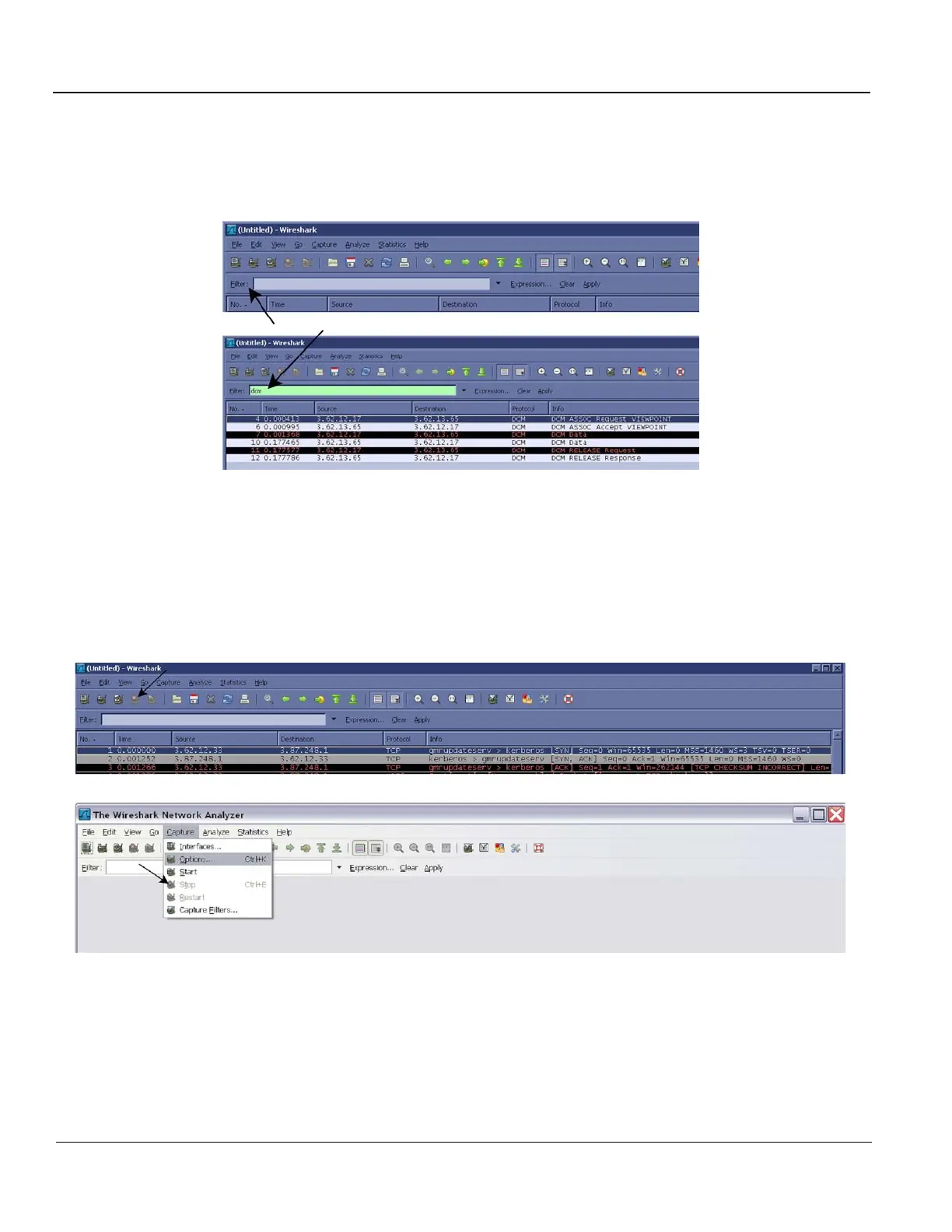

Figure 7-17 Filter Tool Display
12.)Select Capture > Stop. Or, select the icon in the task bar to stop the capture.
13.)Select File > Save As. Enter the file name d:\log\Sniffer\MyLog. (MyLog can be changed to the
name of your preference).
WireShark uses the libpcap (*.pcap, *.cap) file format as the default format to save captured packets.
(If you need to open this file with D-Trace or DVTK, the capture can be reserved in NA Sniffer Windows
format).
Figure 7-18 Select Capture Stop Icon

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
