CHAPTER 2: PRODUCT DESCRIPTION SECURITY
M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 2-3
2

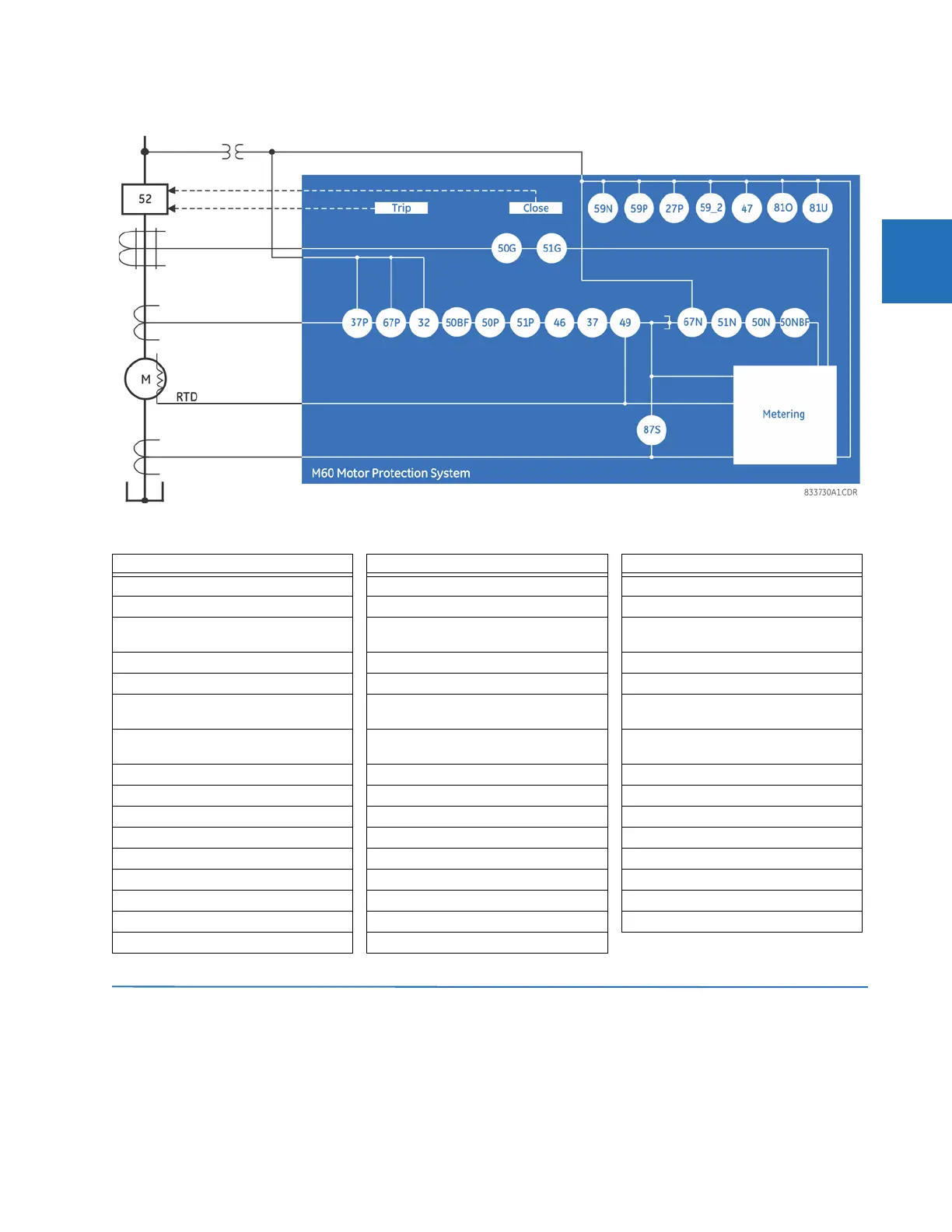

Figure 2-1: Single-line diagram
Table 2-2: Other device functions
2.2 Security
The following security features are available:
• Password security — Basic security present by default
• EnerVista security — Role-based access to various EnerVista software screens and configuration elements. The
feature is present by default in the EnerVista software.
Function Function Function
Breaker arcing current (I
2
t) Event Recorder RTD Protection
Breaker Control FlexElements (16) Setting Groups (6)
Breaker Flashover FlexLogic Equations Time synchronization over IRIG-B or IEEE
1588
Breaker Restrike IEC 60870-5-103 Communications Time Synchronization over SNTP
Broken Rotor Bar Detection IEC 61850 Communications Transducer Inputs/Outputs
Contact Inputs (up to 120) IEC 62351-9 Data and Communications
Security
Trip Bus
Contact Outputs (up to 72) Metering: Current, Voltage, Power, and
Frequency
Two-Speed Motor
Control Pushbuttons Modbus Communications User Definable Displays
CT Failure Detector Modbus User Map User Programmable Fault Report
CyberSentry™ Security Motor Learned Data User Programmable LEDs
Digital Counters (8) Non-Volatile Latches User Programmable Pushbuttons
Digital Elements (48) Non-Volatile Selector Switch User Programmable Self-Tests
Direct Inputs/Outputs (32) Oscillography Virtual Inputs (64)
Disconnect Switches Reduced Voltage Starting Virtual Outputs (96)
DNP 3.0 or IEC 60870-5-104 protocol Remote RTD Protection VT Fuse Failure
Ethernet Global Data Protocol RTD Inputs
