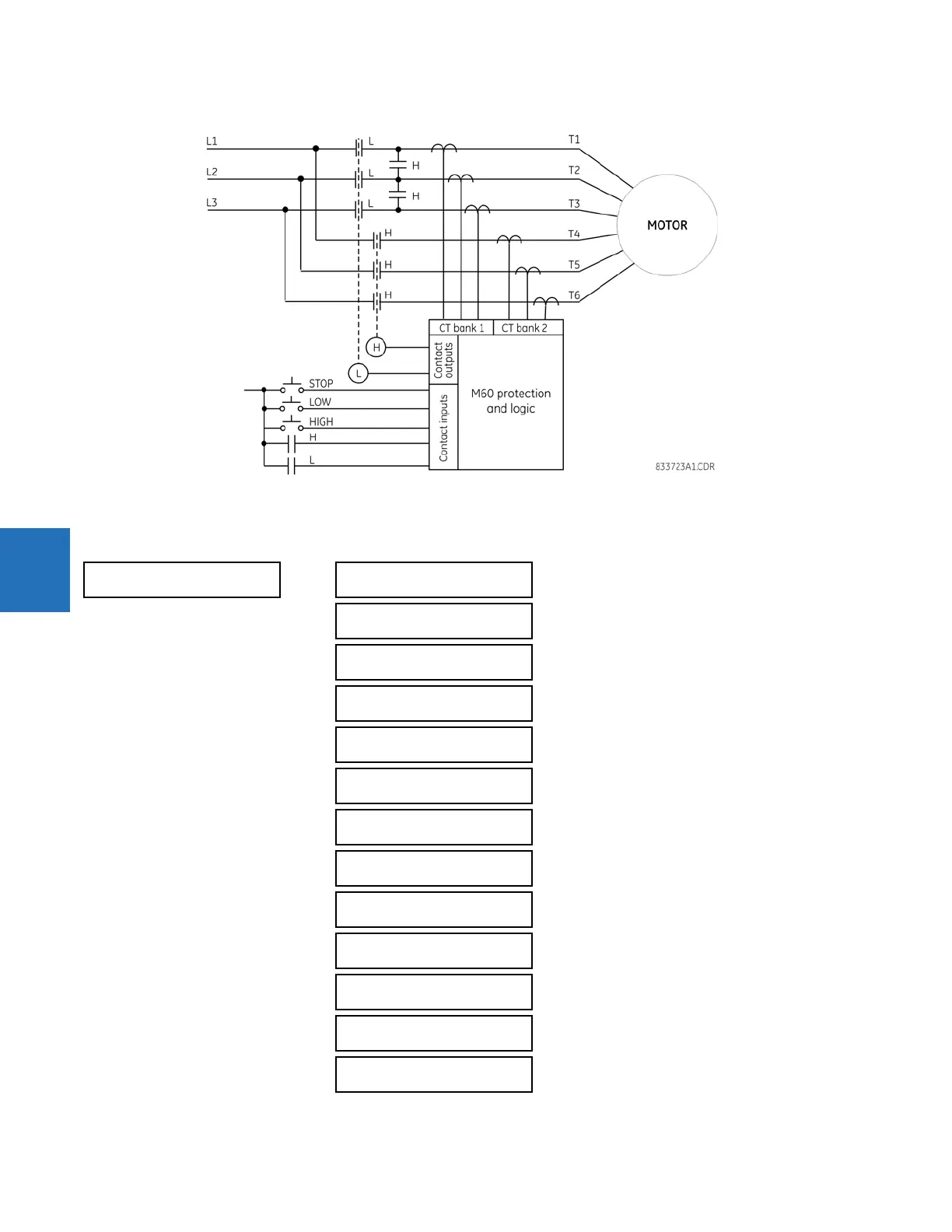

Figure 5-68: Two-speed motor connections
5.5.5 Breakers
SETTINGS  SYSTEM SETUP  BREAKERS  BREAKER 1(2)
 BREAKER 1


BREAKER 1
FUNCTION: Disabled
Range: Disabled, Enabled

BREAKER1 PUSH BUTTON
CONTROL: Disabled
Range: Disabled, Enabled

BREAKER 1 TAGGING:
Disabled
Range: Disabled, Enabled

BREAKER 1
SUBSTITUTN: Disabled
Range: Disabled, Enabled

BREAKER 1 BYPASS:
Disabled
Range: Disabled, Enabled

BREAKER 1 NAME:
Bkr 1
Range: up to six alphanumeric characters

BREAKER 1 MODE:
3-Pole
Range: 3-Pole, 1-Pole

BREAKER 1 OPEN:
Off
Range: FlexLogic operand

BREAKER 1 BLK OPEN:
Off
Range: FlexLogic operand

BREAKER 1 CLOSE:
Off
Range: FlexLogic operand

BREAKER 1 BLK CLOSE:
Off
Range: FlexLogic operand

BREAKER1 ΦA/3P CLSD:
Off
Range: FlexLogic operand

BREAKER1 ΦA/3P OPND:
Off
Range: FlexLogic operand
