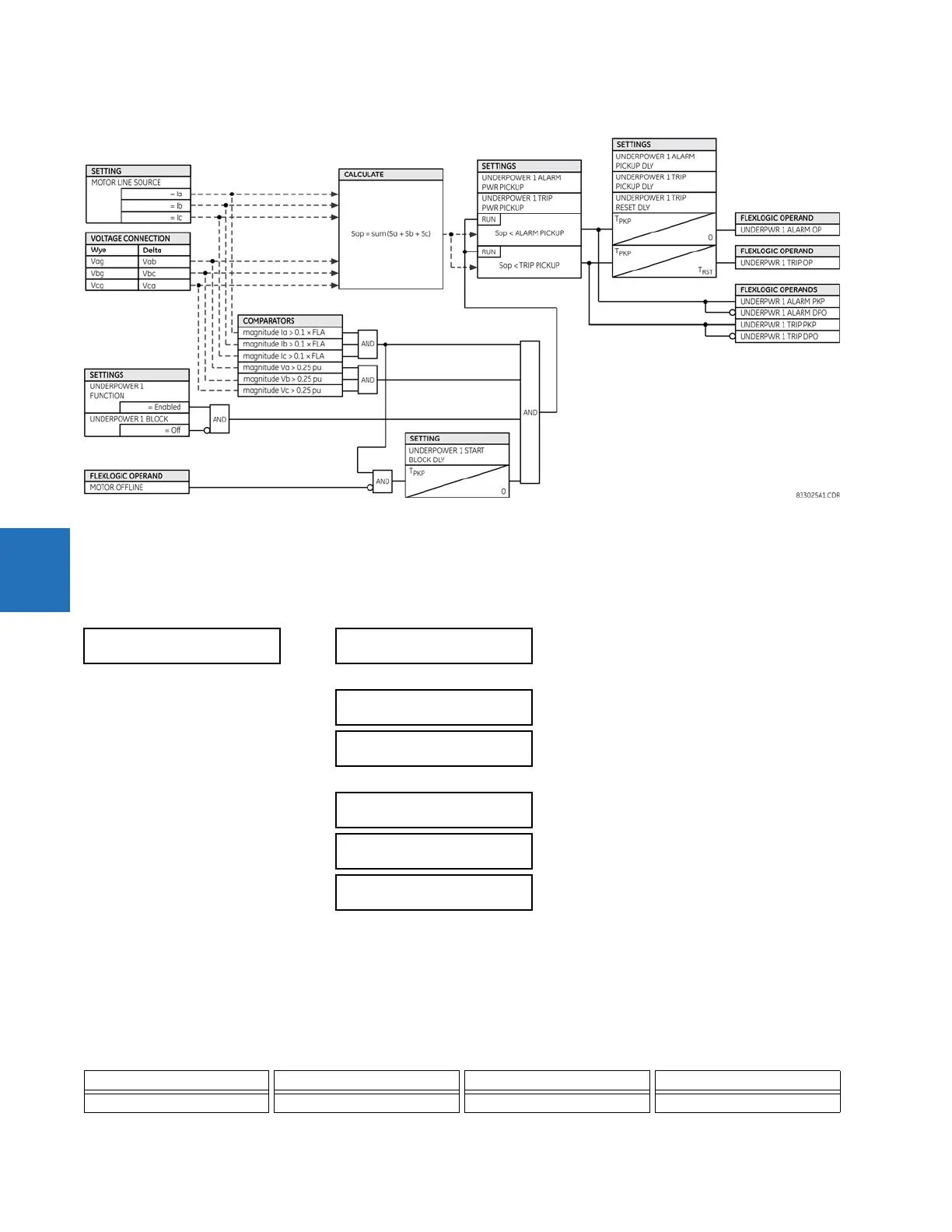

Figure 5-130: Underpower logic
5.7.6 Phase current
5.7.6.1 Menu
SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  PHASE CURRENT
5.7.6.2 Inverse TOC curve characteristics
The inverse time overcurrent curves used by the time overcurrent elements are the IEEE, IEC, GE Type IAC, and I
2
t standard
curve shapes. This allows for simplified coordination with downstream devices.
If none of these curve shapes is adequate, FlexCurves can be used to customize the inverse time curve characteristics. The
definite time curve is also an option that can be appropriate if only simple protection is required.
Table 5-25: Overcurrent curve types
 PHASE CURRENT


 PHASE TOC1

See page 5-240


 PHASE TOC6


 PHASE IOC1

See page 5-242


 PHASE IOC12


 PHASE
 DIRECTIONAL 1
See page 5-243

 PHASE
 DIRECTIONAL 2
IEEE IEC GE type IAC Other
IEEE Extremely Inverse IEC Curve A (BS142) IAC Extremely Inverse I
2
t
