GE M60

5-242 M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
GROUPED ELEMENTS CHAPTER 5: SETTINGS
5

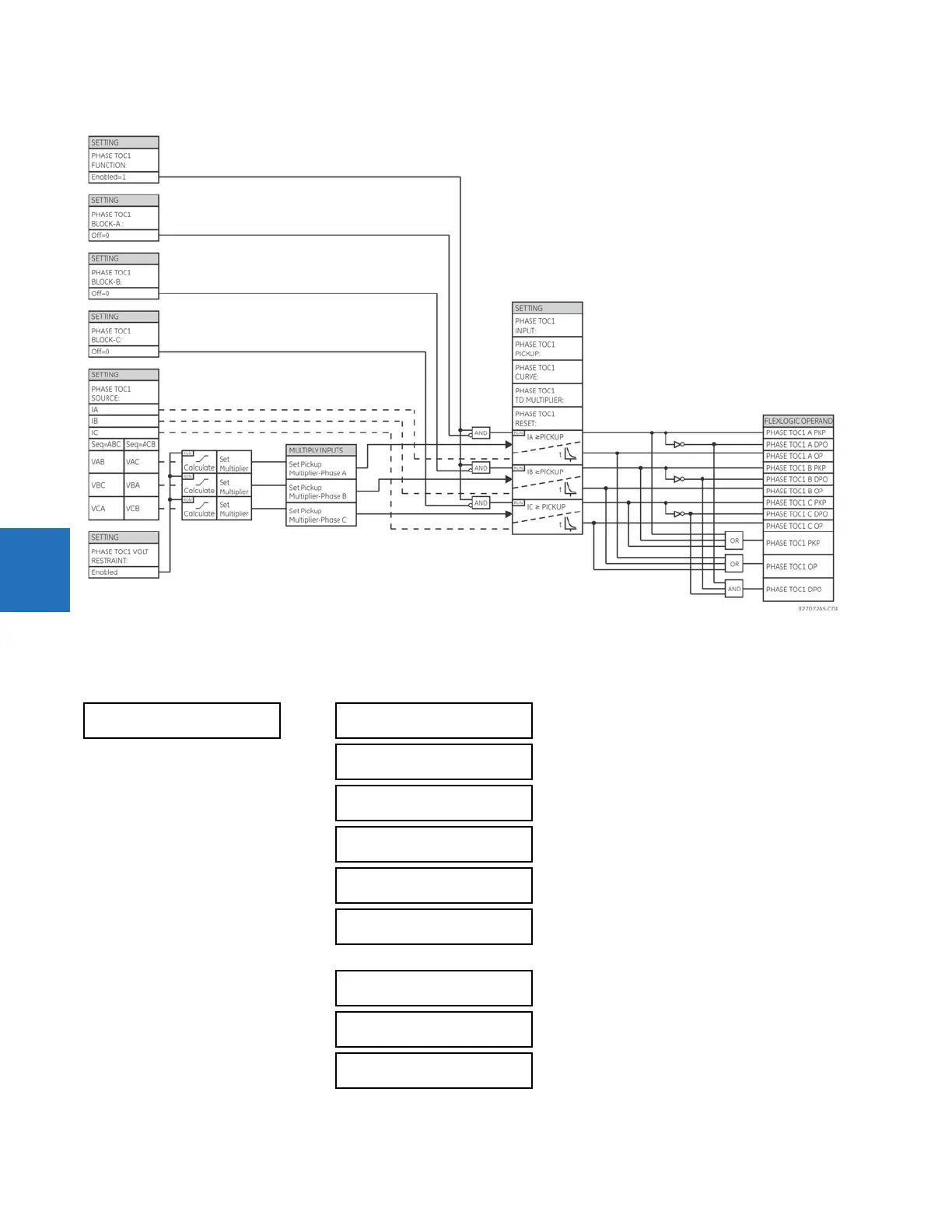

Figure 5-132: Phase time overcurrent 1 logic
5.7.6.4 Phase instantaneous overcurrent (ANSI 50P, IEC PIOC)
SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  PHASE CURRENT  PHASE IOC 1(12)
 PHASE IOC 1


PHASE IOC1
FUNCTION: Disabled
Range: Disabled, Enabled

PHASE IOC1 SIGNAL
SOURCE: SRC 1
Range: SRC 1, SRC 2, SRC 3, SRC 4

PHASE IOC1
PICKUP: 1.000 pu
Range: 0.005 to 30.000 pu in steps of 0.001

PHASE IOC1 PICKUP
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01

PHASE IOC1 RESET
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01

PHASE IOC1 BLOCK A:
Off
Range: FlexLogic operand


PHASE IOC1 BLOCK C:
Off
Range: FlexLogic operand

PHASE IOC1
TARGET: Self-reset
Range: Self-reset, Latched, Disabled

PHASE IOC1
EVENTS: Disabled
Range: Disabled, Enabled
