3-30 M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
WIRING CHAPTER 3: INSTALLATION
3

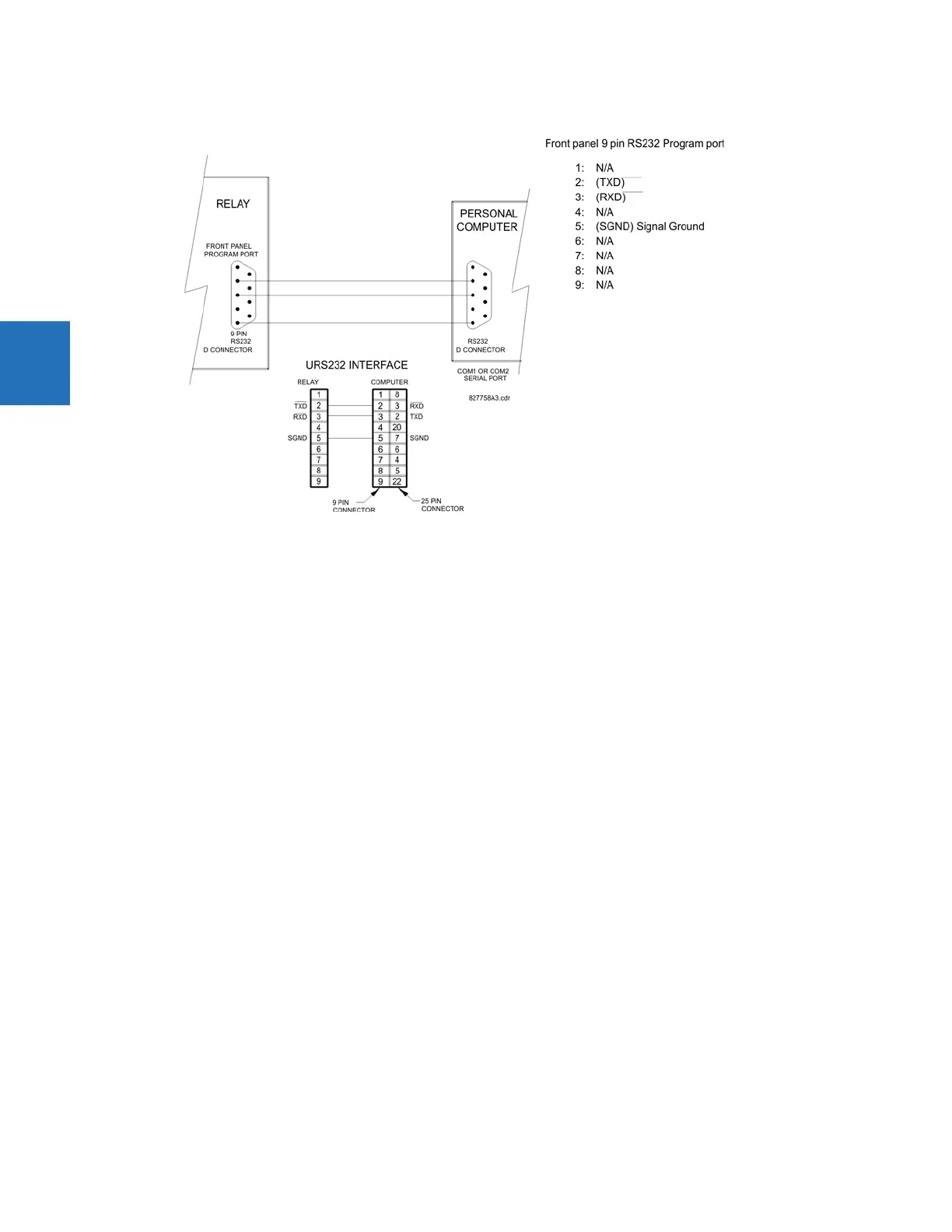

Figure 3-27: RS232 front panel port connection
3.3.9 CPU communication ports
3.3.9.1 Overview
In addition to the front panel RS232 port, there is a rear RS485 communication port.
The CPU modules do not require a surge ground connection.
