CHAPTER 5: SETTINGS SYSTEM SETUP
M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 5-161
5

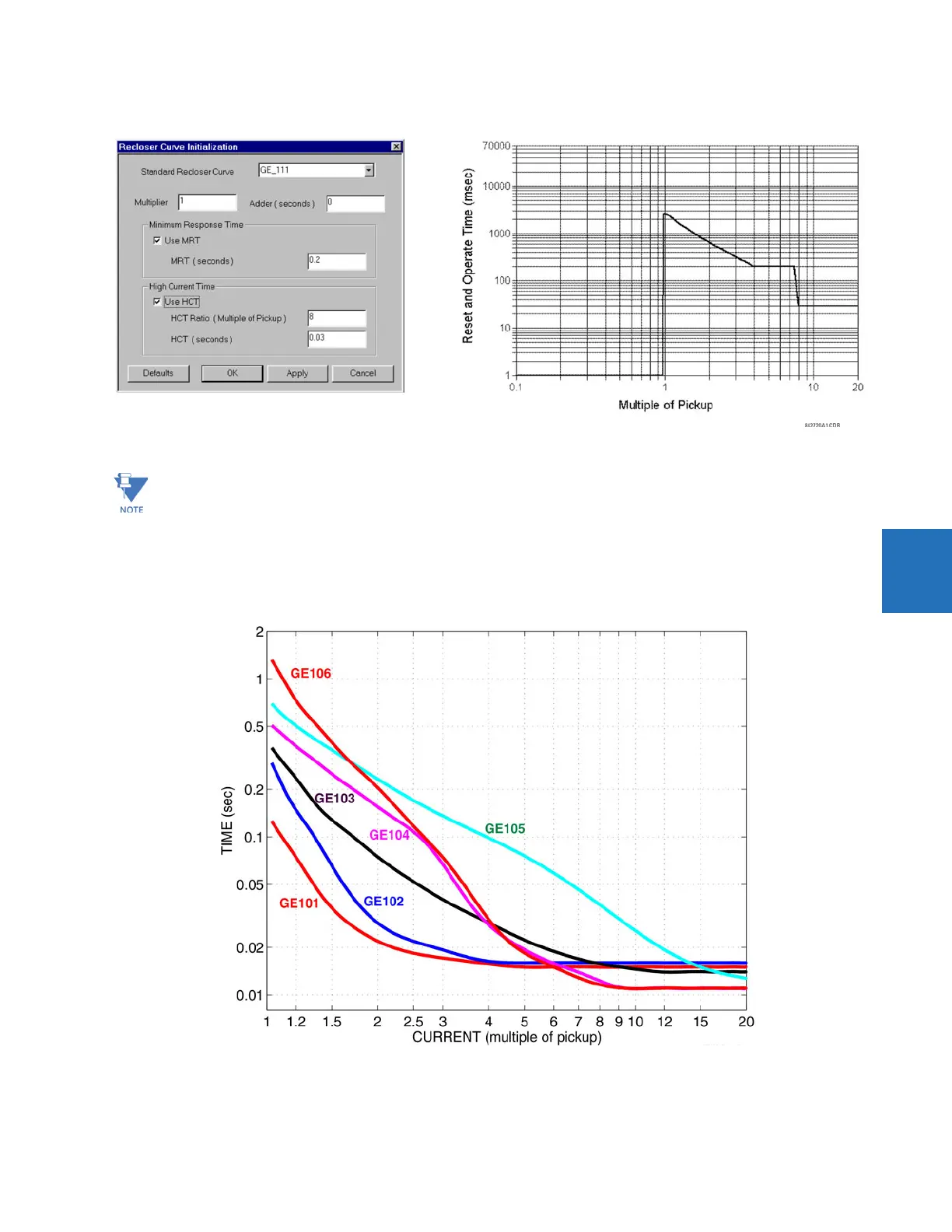

Figure 5-77: Composite recloser curve with HCT enabled
5.5.7.5 Standard recloser curves
The following graphs display standard recloser curves available for the M60.
Figure 5-78: Recloser curves GE101 to GE106
Configuring a composite curve with an increase in operating time at increased pickup multiples is not allowed. If
this is attempted, the EnerVista software generates an error message and discards the proposed changes.
